Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IPC) cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT  .
  2. Rotate the inoperative lamp counterclockwise.

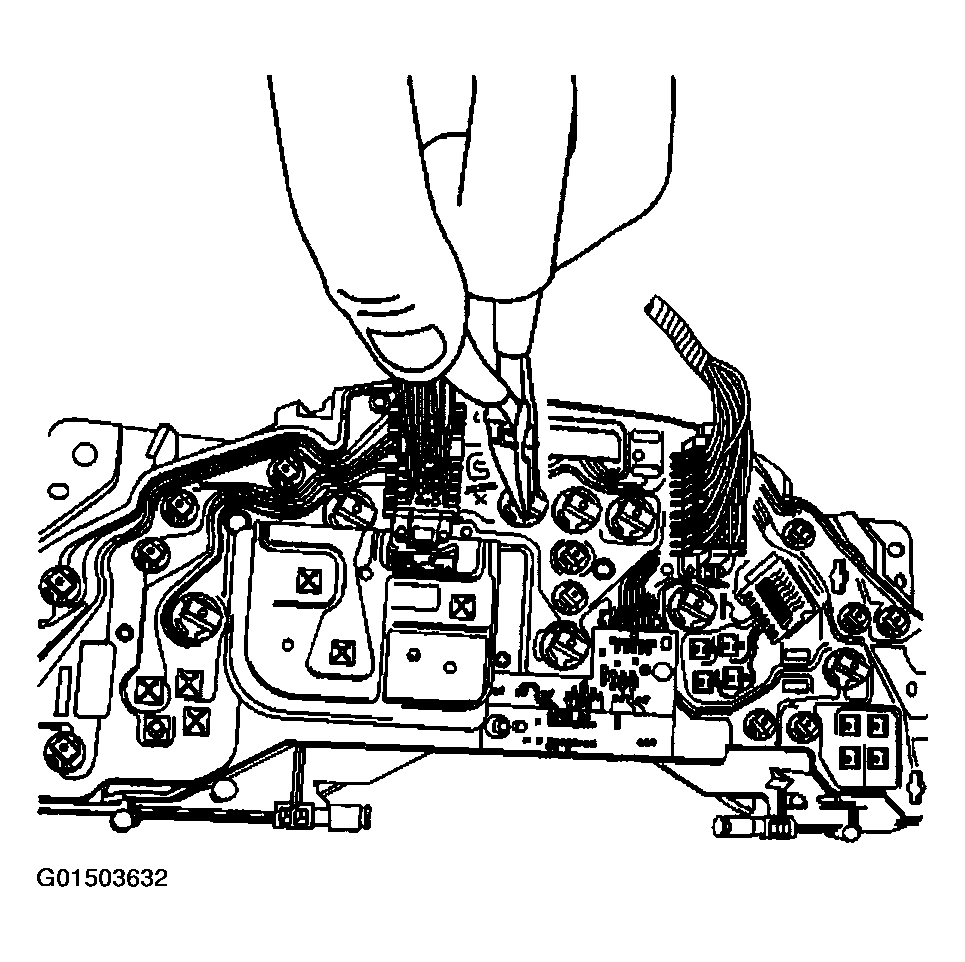

    Fig 1: Rotating Instrument Panel Cluster Indicator Lamp
    G01503632Courtesy of GENERAL MOTORS CORP.
  3. Remove the lamp from the cluster.

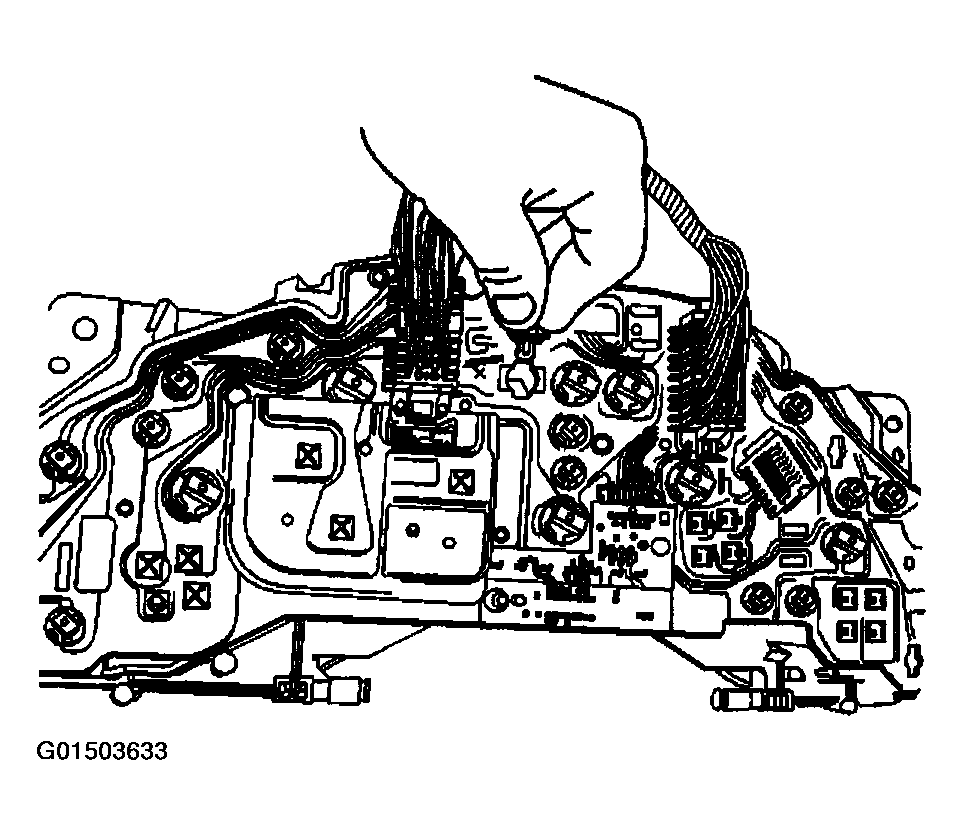

    Fig 2: Removing Instrument Panel Cluster Indicator Lamp
    G01503633Courtesy of GENERAL MOTORS CORP.
  4. Pull the bulb from the lamp socket.

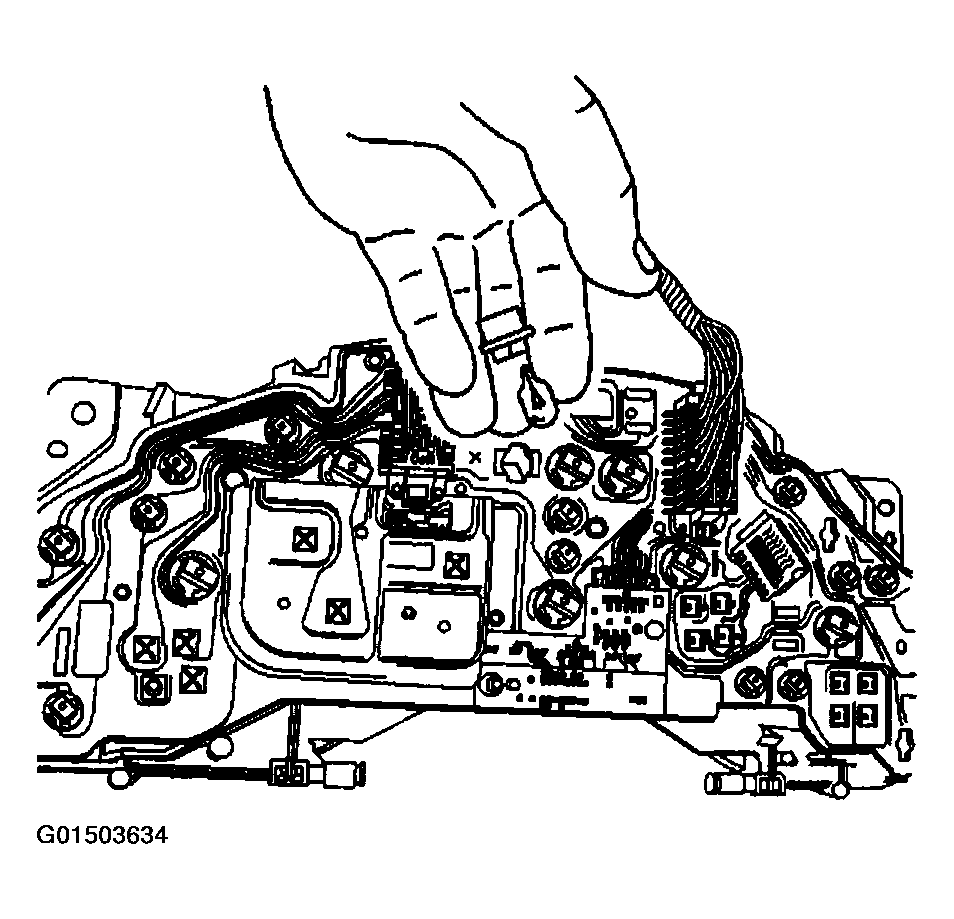

    Fig 3: Removing Instrument Panel Cluster Indicator Lamp Bulb
    G01503634Courtesy of GENERAL MOTORS CORP.
