Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the lamp socket by pressing the bulb into place until seated correctly.

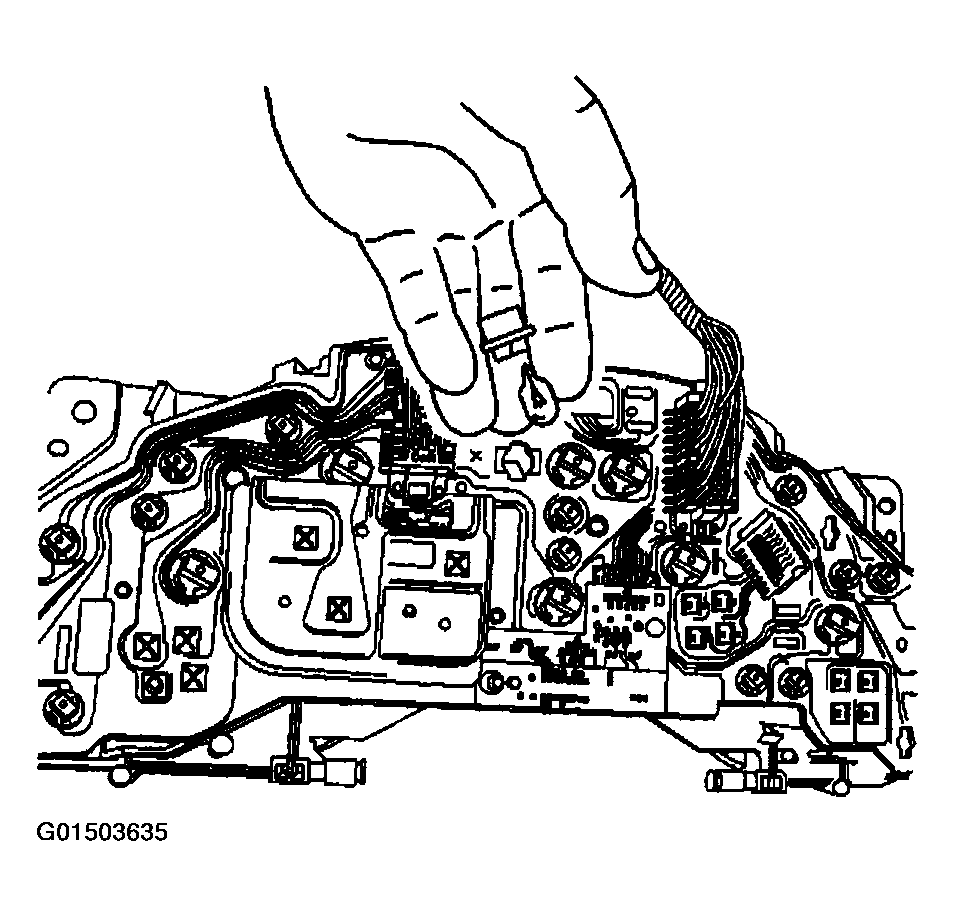

    Fig 1: Installing Instrument Panel Cluster Indicator Lamp Bulb
    G01503635Courtesy of GENERAL MOTORS CORP.
  2. Position the lamp into the cluster opening.

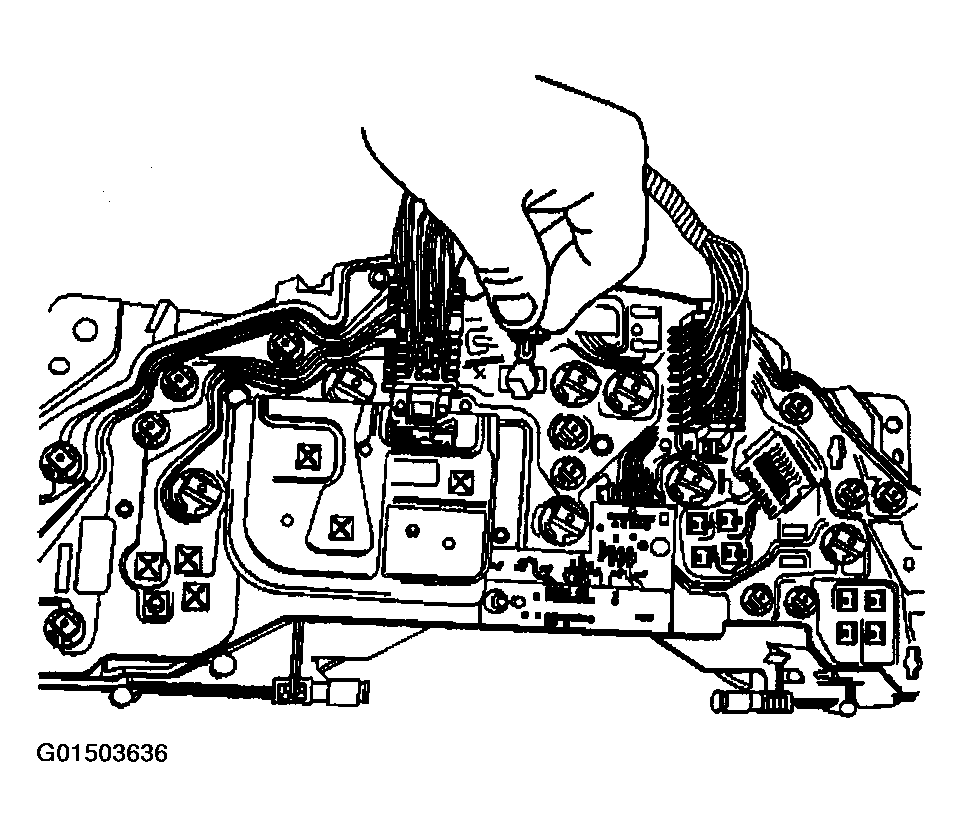

    Fig 2: Positioning Lamp Into Cluster Opening
    G01503636Courtesy of GENERAL MOTORS CORP.
  3. Rotate the lamp clockwise.
  4. Install the IPC. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT  .

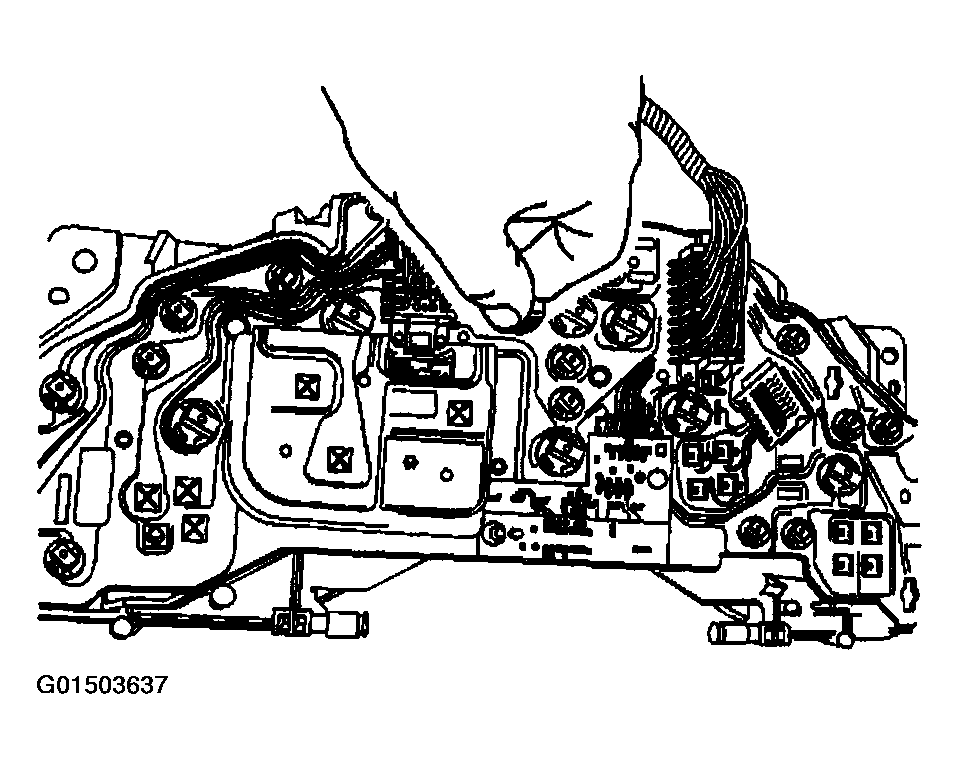

    Fig 3: Installing Instrument Panel Cluster Indicator Lamp
    G01503637Courtesy of GENERAL MOTORS CORP.
