Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster (IPC) trim plate. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT  .
  2. Unsnap the head-up display (HUD) dimmer switch from the instrument panel (IP).
  3. Disconnect the electrical connectors from the HUD dimmer switch.
  4. Remove the HUD dimmer switch.

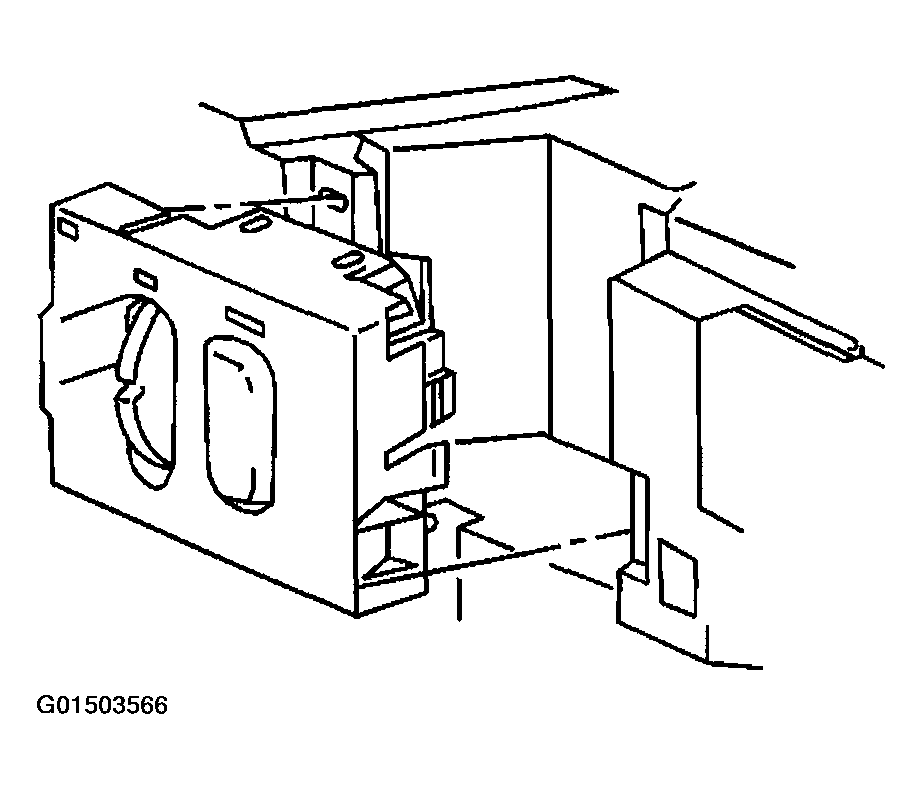

    Fig 1: Removing Head Up Display Switch
    G01503566Courtesy of GENERAL MOTORS CORP.
