Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the support springs to the cupholder.

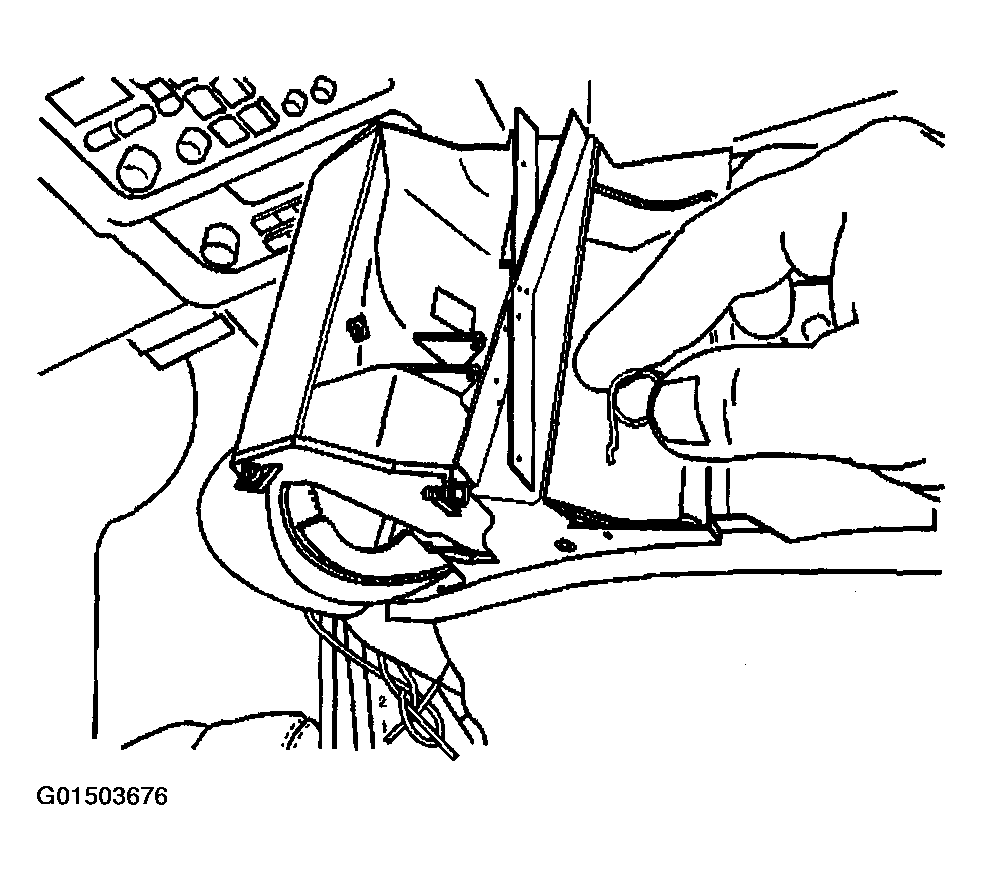

    Fig 1: Installing Support Springs To Cupholder
    G01503676Courtesy of GENERAL MOTORS CORP.
  2. Position the cupholder to the console trim plate. Install the cupholder to the trim plate by pressing into place until fully seated into the pivot points.
    Fig 2: Positioning Cupholder To Console Trim Plate
    G01503677Courtesy of GENERAL MOTORS CORP.
  3. Install the support springs to the console cup holder.
  4. Inspect the cupholder for proper installation.
  5. Install the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE  .

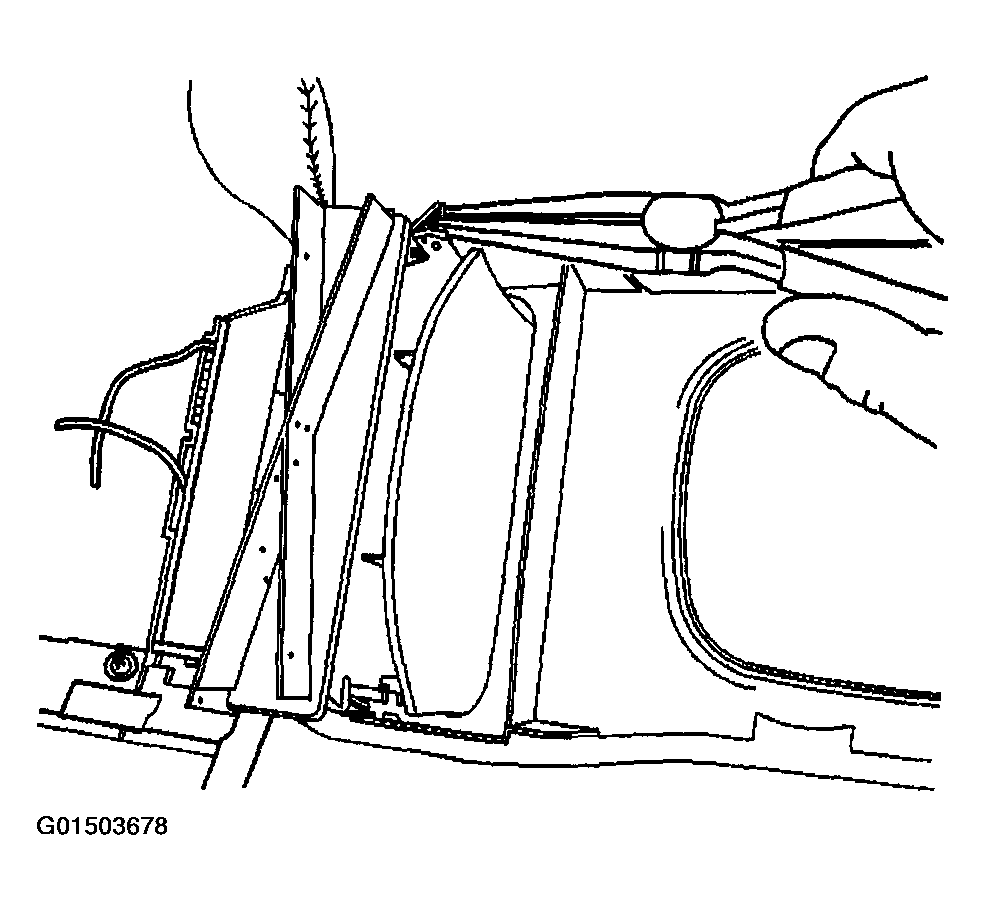

    Fig 3: Installing Support Springs To Console Cup Holder
    G01503678Courtesy of GENERAL MOTORS CORP.
