Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear storage compartment from the front floor console.
  2. Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE  .

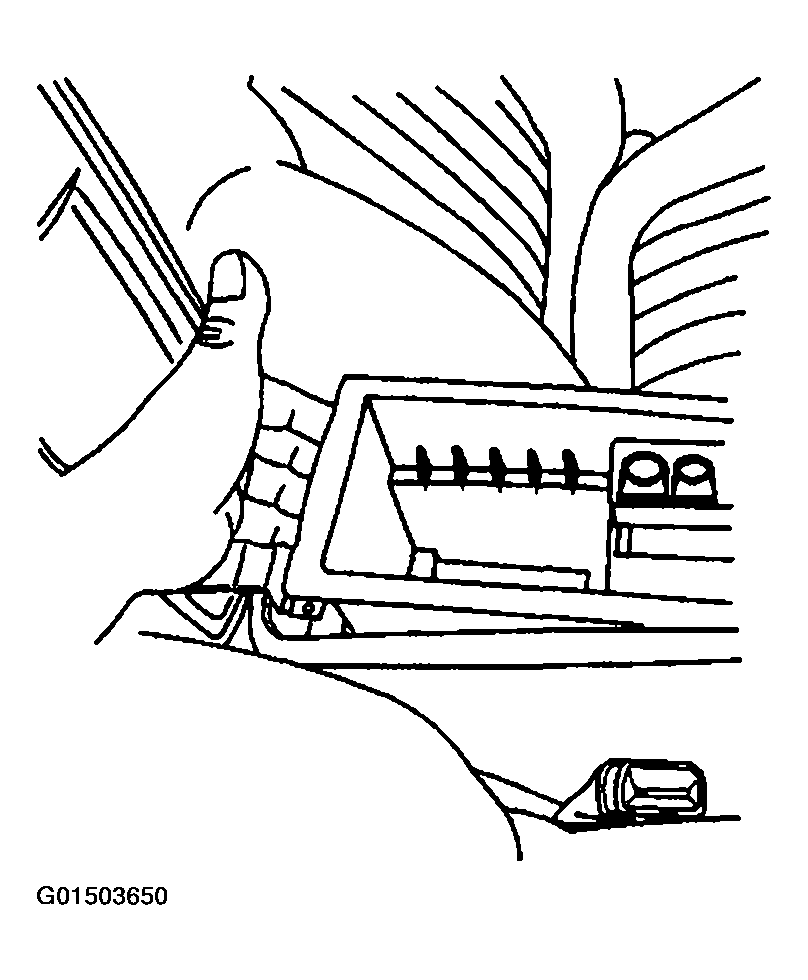

    Fig 1: Removing Rear Storage Compartment From Front Floor Console
    G01503650Courtesy of GENERAL MOTORS CORP.
  3. Remove the horseshoe clip (1) from the shift control knob. Remove the shift control knob.
  4. Disengage the transmission shift plate retainers from the transmission shift control assembly. Remove the transmission shift plate.
    Fig 2: Removing Horseshoe Clip From Shift Control Knob
    G01503651Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear bolts from the front of the floor console in the rear storage compartment.
  6. Remove the center bolts front floor console at the transaxle shift lever mounting bracket.
  7. Remove the front bolts from the front floor console.

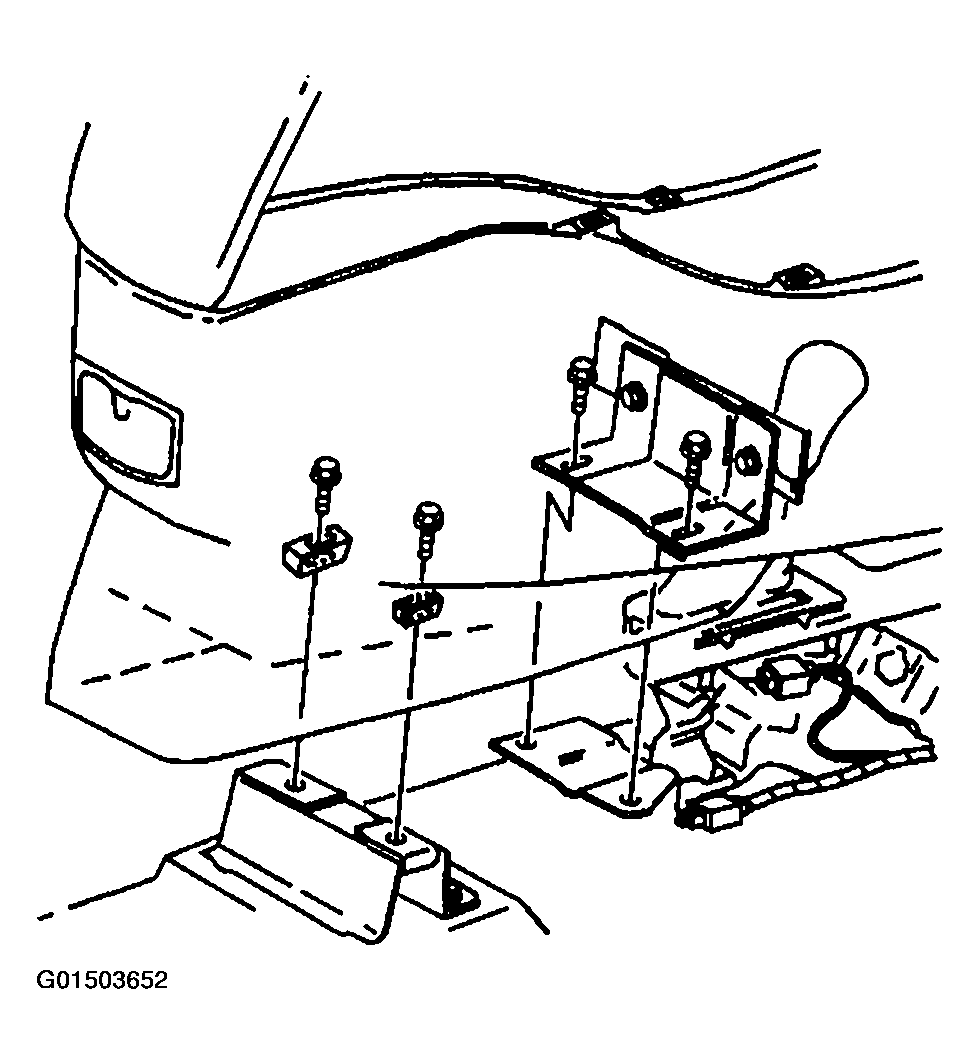

    Fig 3: Removing Bolts From Front Floor Console
    G01503652Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the electrical connectors.
  9. Pull the front floor console rearward in order to release the console from the guide pins in the instrument panel (IP).
  10. Remove the front floor console from the vehicle.
    Fig 4: Removing Front Floor Console
    G01503653Courtesy of GENERAL MOTORS CORP.
