Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the armrest hinge to the floor console.

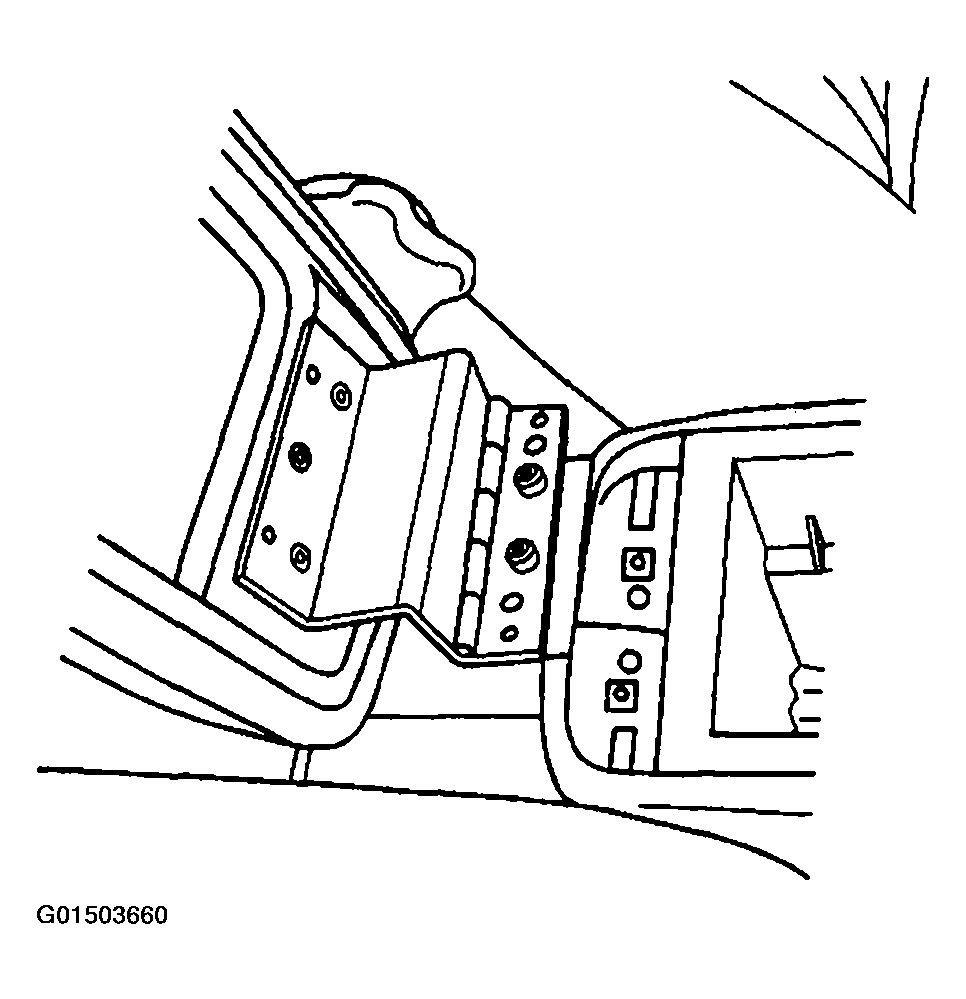

    Fig 1: Aligning Armrest Hinge To Floor Console
    G01503660Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the armrest hinge screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Lower the console armrest.

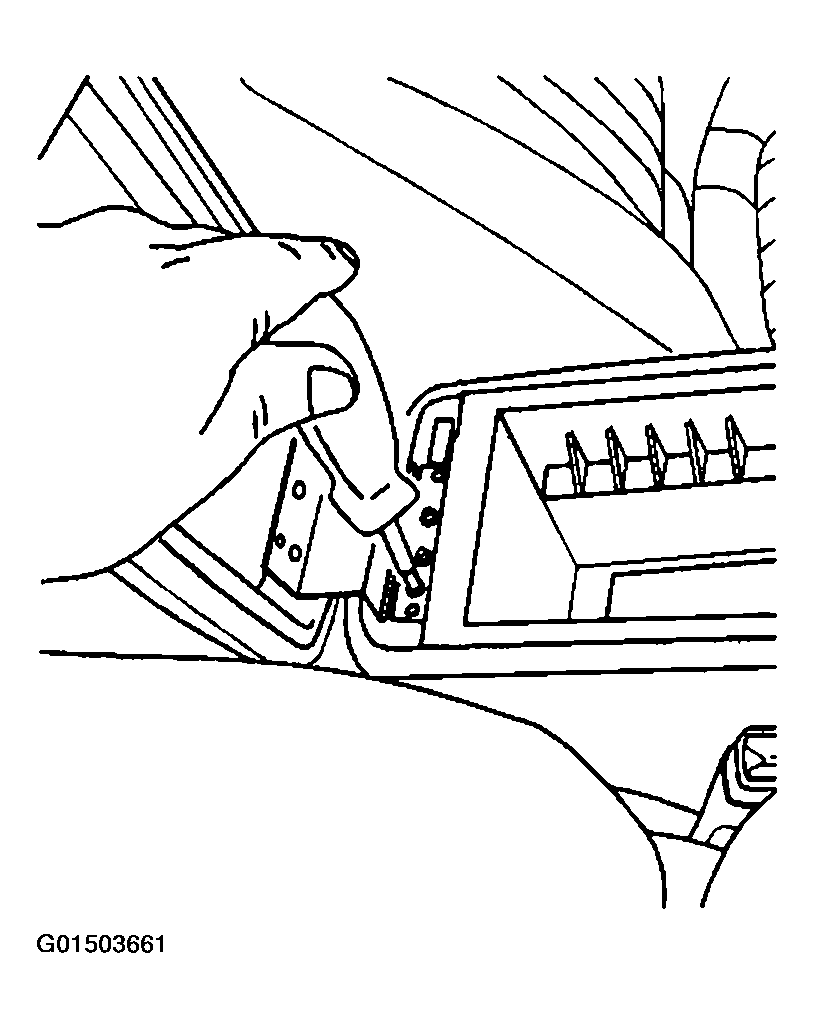

    Fig 2: Installing Armrest Hinge Screws
    G01503661Courtesy of GENERAL MOTORS CORP.
