Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) compartment hinge screws.
  2. Open the IP compartment.

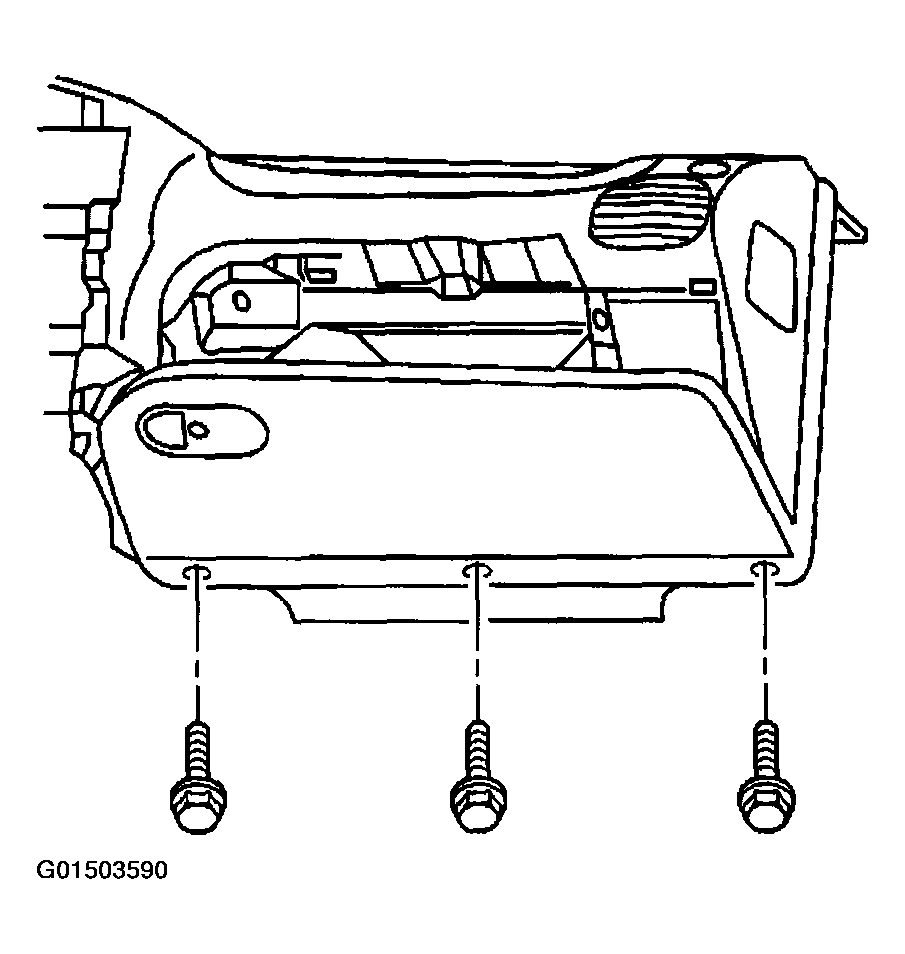

    Fig 1: Removing Instrument Panel Compartment Hinge Screws
    G01503590Courtesy of GENERAL MOTORS CORP.
  3. Press inward on both sides of the IP compartment housing. Rotate down and out removing the housing from the IP.
    Fig 2: Removing Instrument Panel Compartment Housing
    G01503591Courtesy of GENERAL MOTORS CORP.
