Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the compartment housing with the IP.
  2. Press inward on both sides of the compartment housing. Rotate upward and inward to install the housing into the IP.
    Fig 1: Installing Instrument Panel Compartment Housing
    G01503592Courtesy of GENERAL MOTORS CORP.
  3. Hand tighten the IP compartment hinge screws.
  4. Align the IP compartment housing in order to ensure the correct fit.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the IP compartment hinge screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  6. Close the IP compartment.

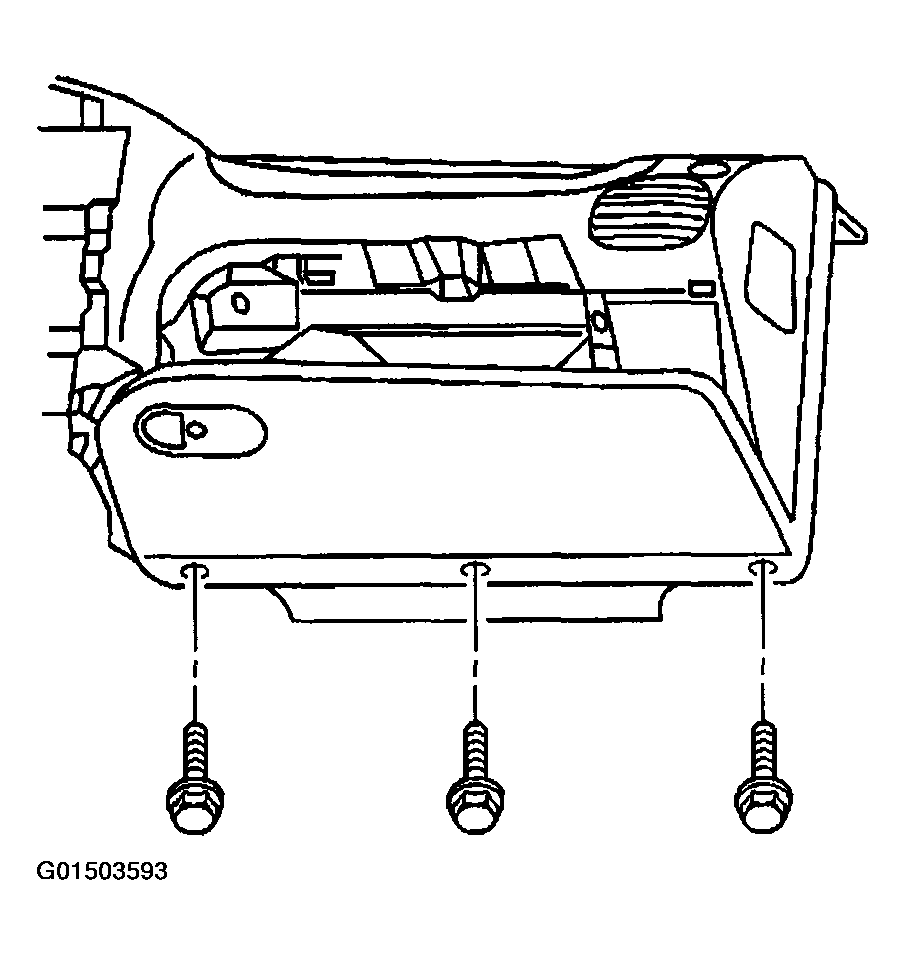

    Fig 2: Installing Instrument Panel Compartment Hinge Screws
    G01503593Courtesy of GENERAL MOTORS CORP.
