Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Use J 38778 in order to remove the push-in retainers from the right instrument panel (I/P) insulator.

Fig 1: Removing Push-In Retainers From Right Instrument Panel Insulator
Courtesy of GENERAL MOTORS CORP.
Lower the insulator from the I/P. Rotate the courtesy lamp counter clockwise. Remove the courtesy lamp from the insulator. Refer to COURTESY LAMP REPLACEMENT - INSTRUMENT PANEL in Lighting Systems.
Remove the right I/P insulator.

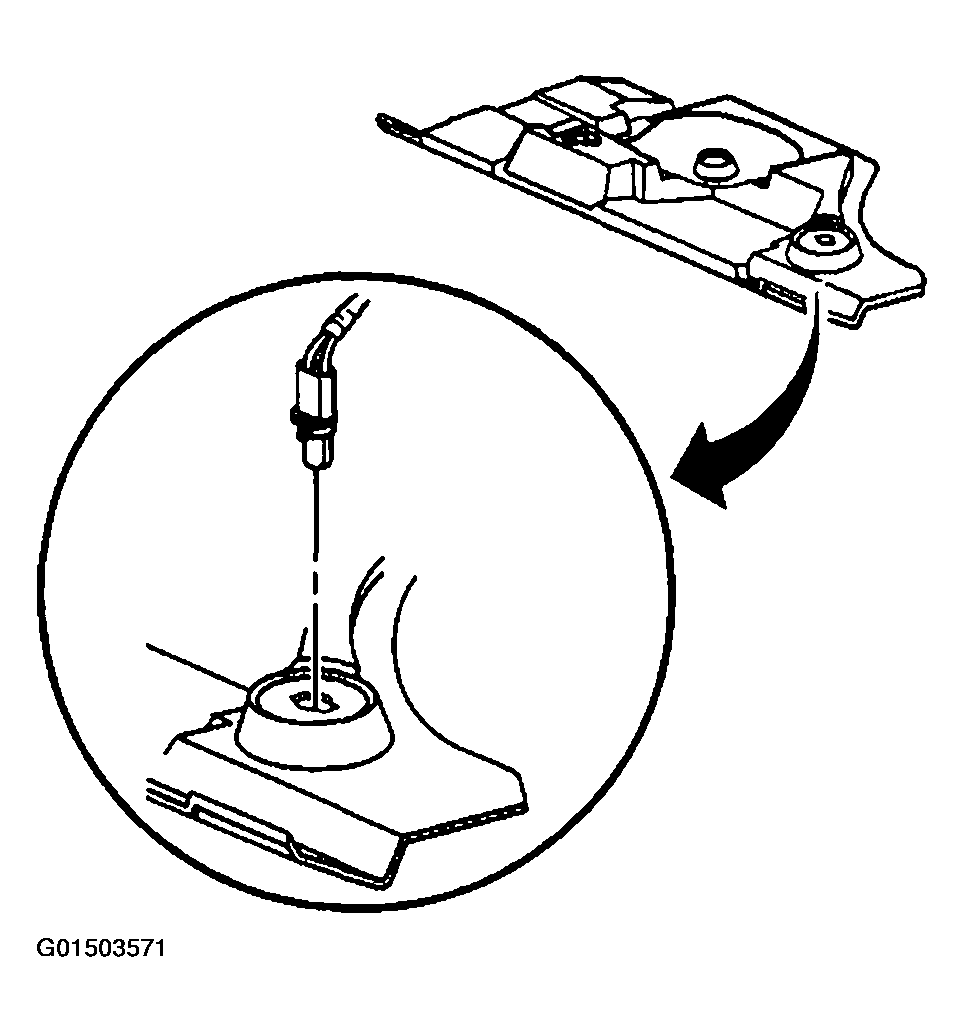

Fig 2: Removing Courtesy Lamp From Right Instrument Panel Insulator
Courtesy of GENERAL MOTORS CORP.
