Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the courtesy lamp into the right I/P insulator. Rotate the courtesy lamp clockwise to secure correctly.

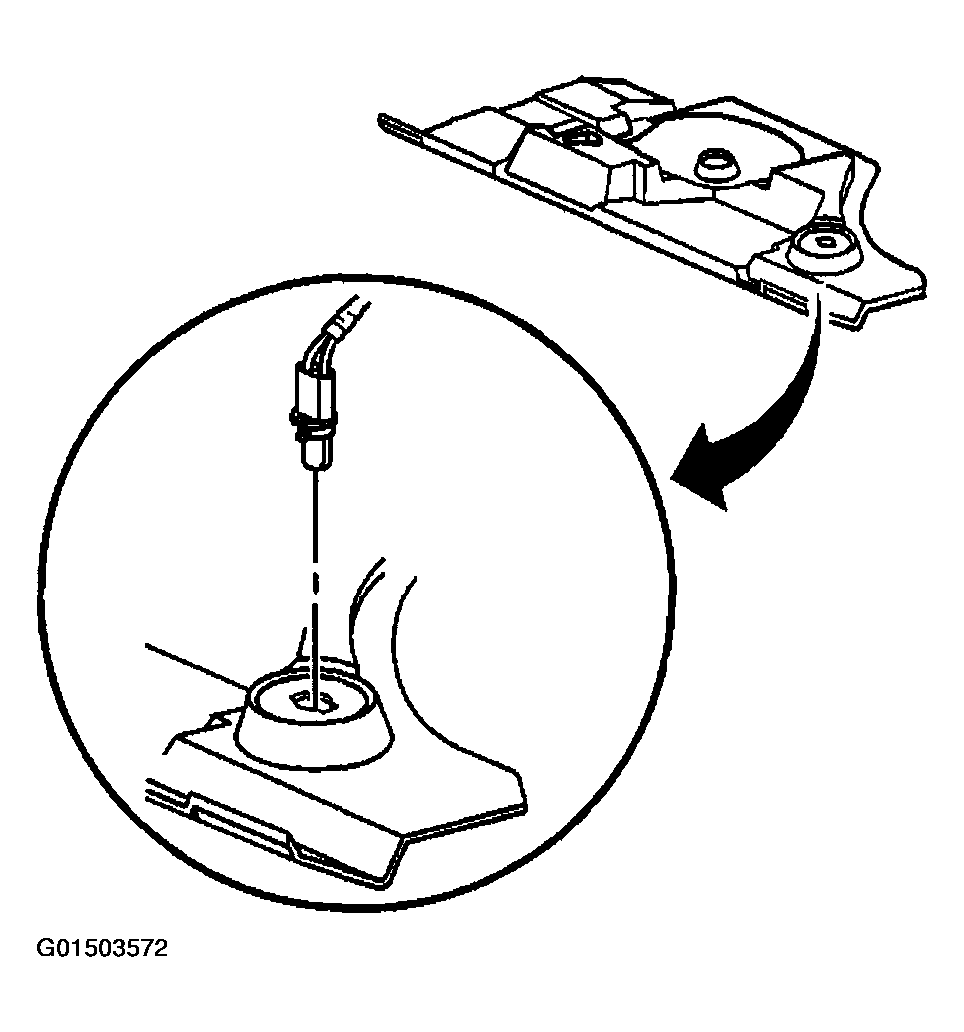

    Fig 1: Positioning Courtesy Lamp Into Right Instrument Panel Insulator
    G01503572Courtesy of GENERAL MOTORS CORP.

    Important:  Do not block the floor heater outlet with the right I/P insulator.

  2. Install the right I/P insulator.
  3. Install the push-in retainers to the right I/P insulator.
    Fig 2: Installing Push-In Retainers To Right Instrument Panel Insulator
    G01503573Courtesy of GENERAL MOTORS CORP.
