Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

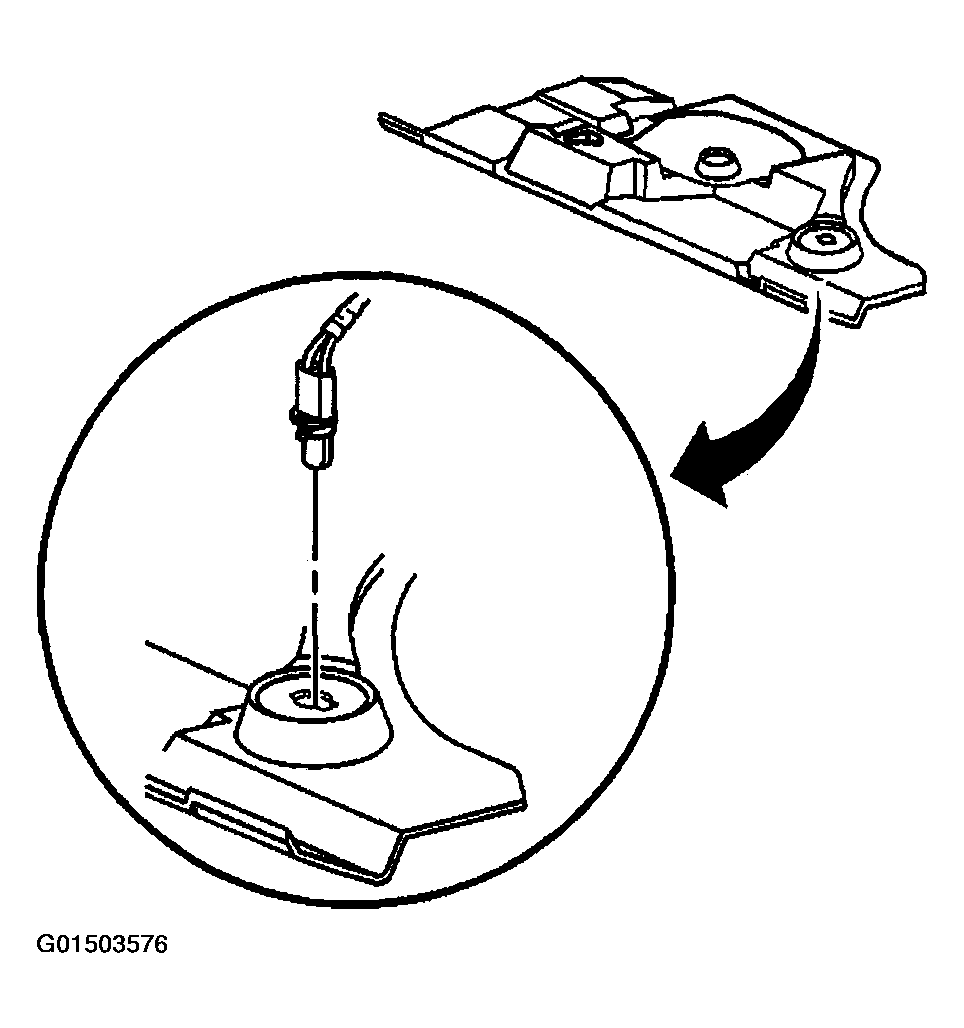

Position the courtesy lamp into the left I/P insulator. Rotate the courtesy lamp clockwise to secure correctly.

Fig 1: Positioning Courtesy Lamp Into Left Instrument Panel Insulator
Courtesy of GENERAL MOTORS CORP.
Install the left I/P insulator to the instrument panel.
Install the push-in retainers to the left I/P insulator.

Fig 2: Installing Push-In Retainers To Left Instrument Panel Insulator
Courtesy of GENERAL MOTORS CORP.
