Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ashtray. Refer to ASHTRAY REPLACEMENT  .
  2. Release the electrical connector retainer tabs from the lighter element.

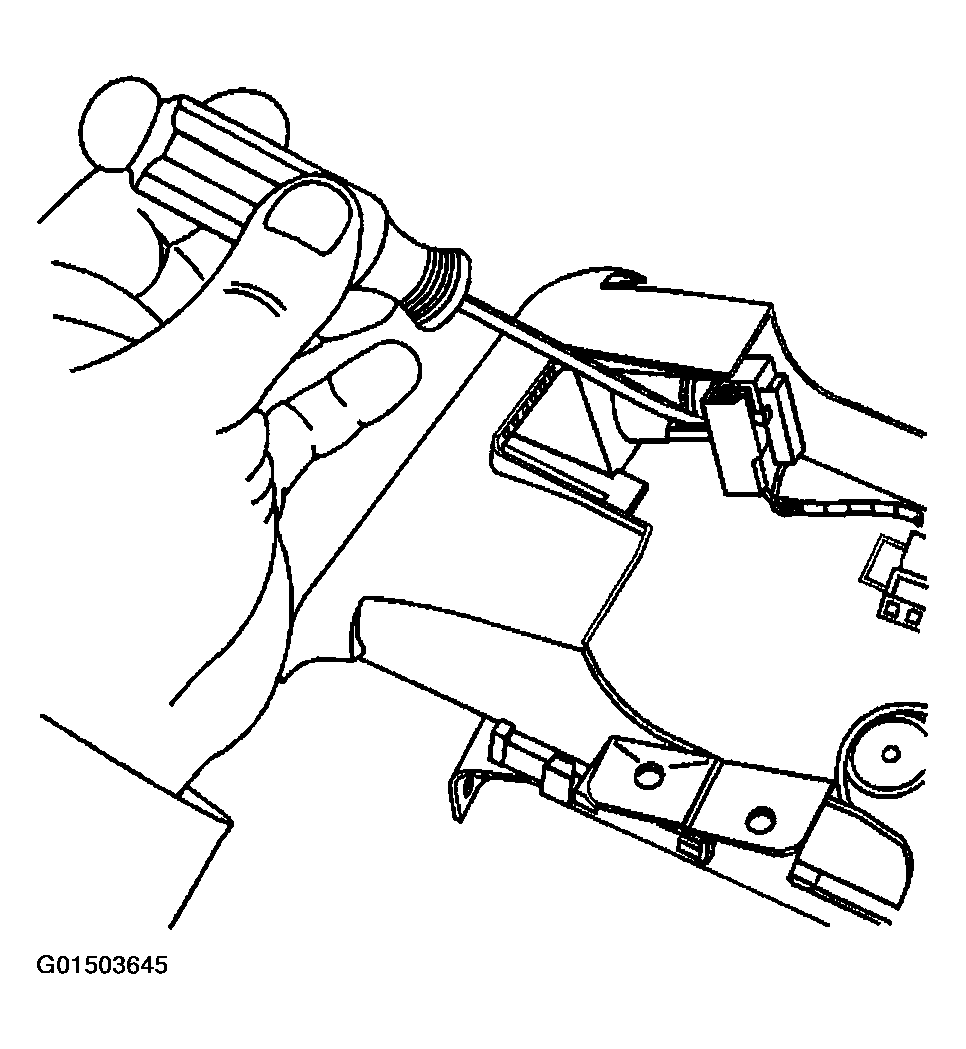

    Fig 1: Releasing Electrical Connector Retainer Tabs From Lighter Element
    G01503645Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the lighter element.

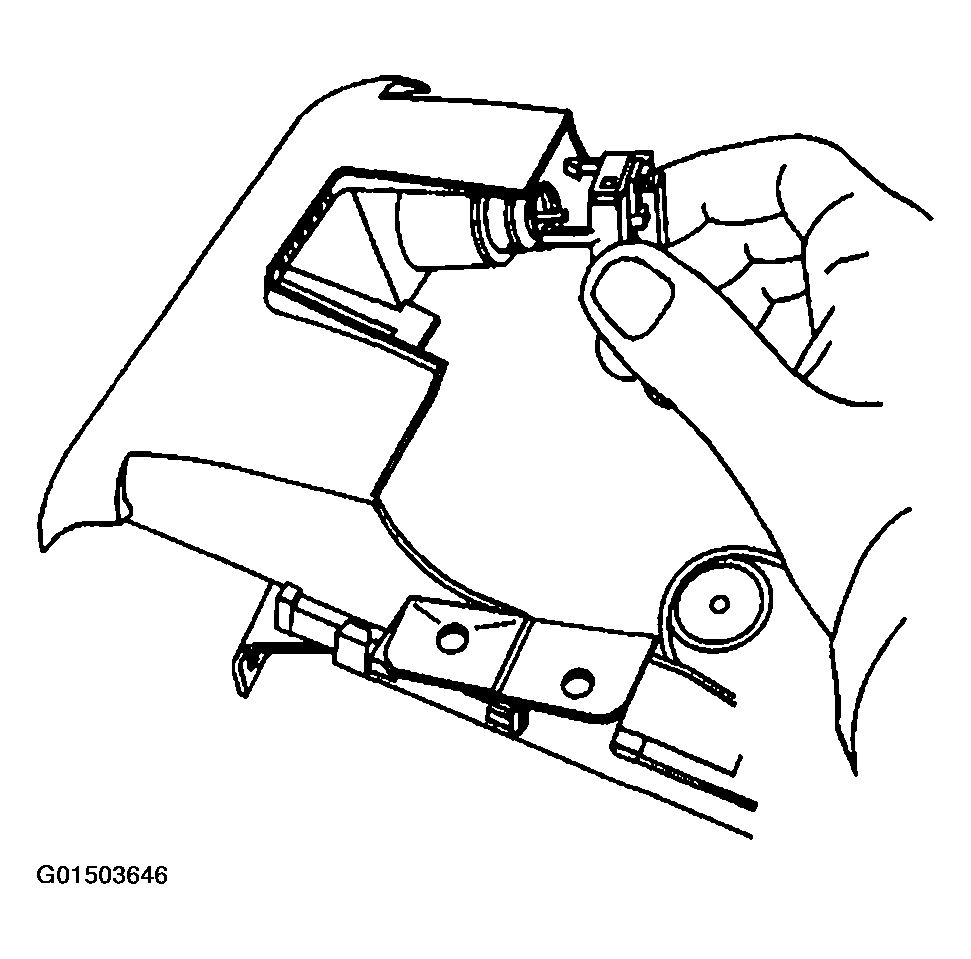

    Fig 2: Disconnecting Electrical Connector From Lighter Element
    G01503646Courtesy of GENERAL MOTORS CORP.
  4. Remove the lighter element retainer by unscrewing the retainer.
  5. Remove the lighter element.

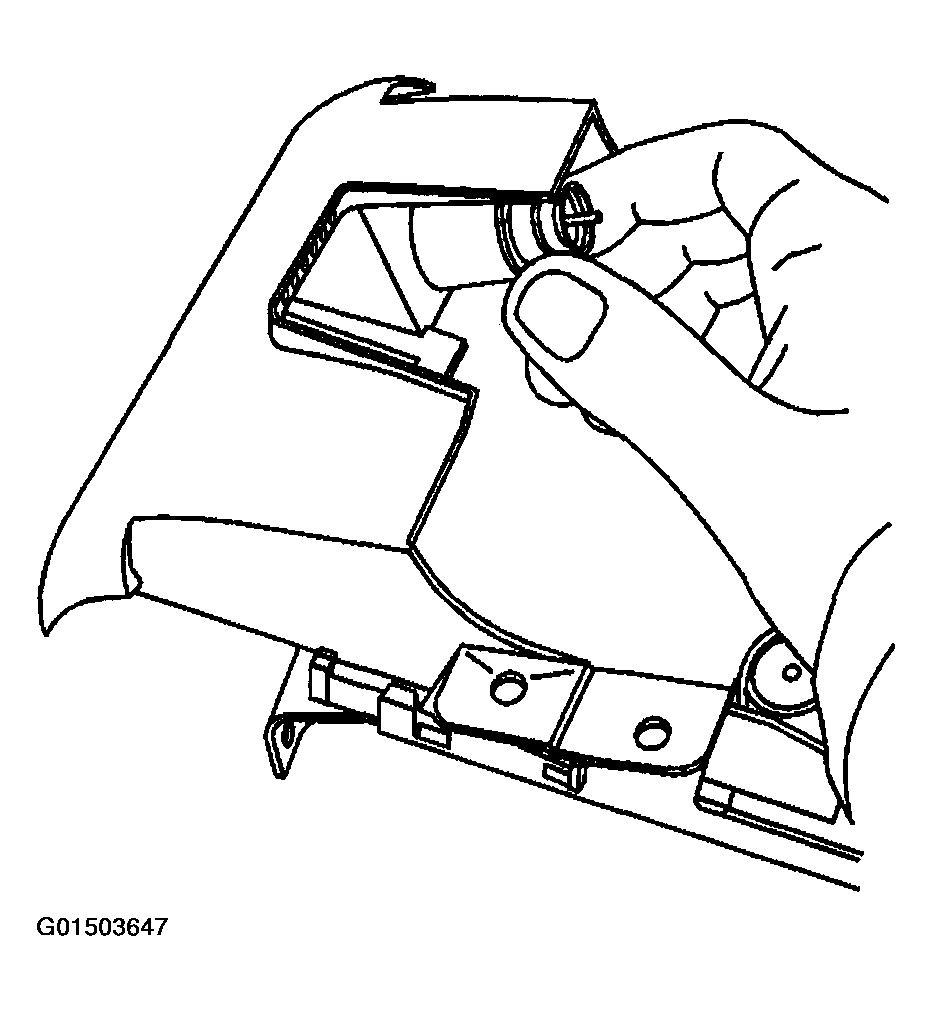

    Fig 3: Removing Lighter Element
    G01503647Courtesy of GENERAL MOTORS CORP.
