Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lighter element.
  2. Install the lighter element retainer.

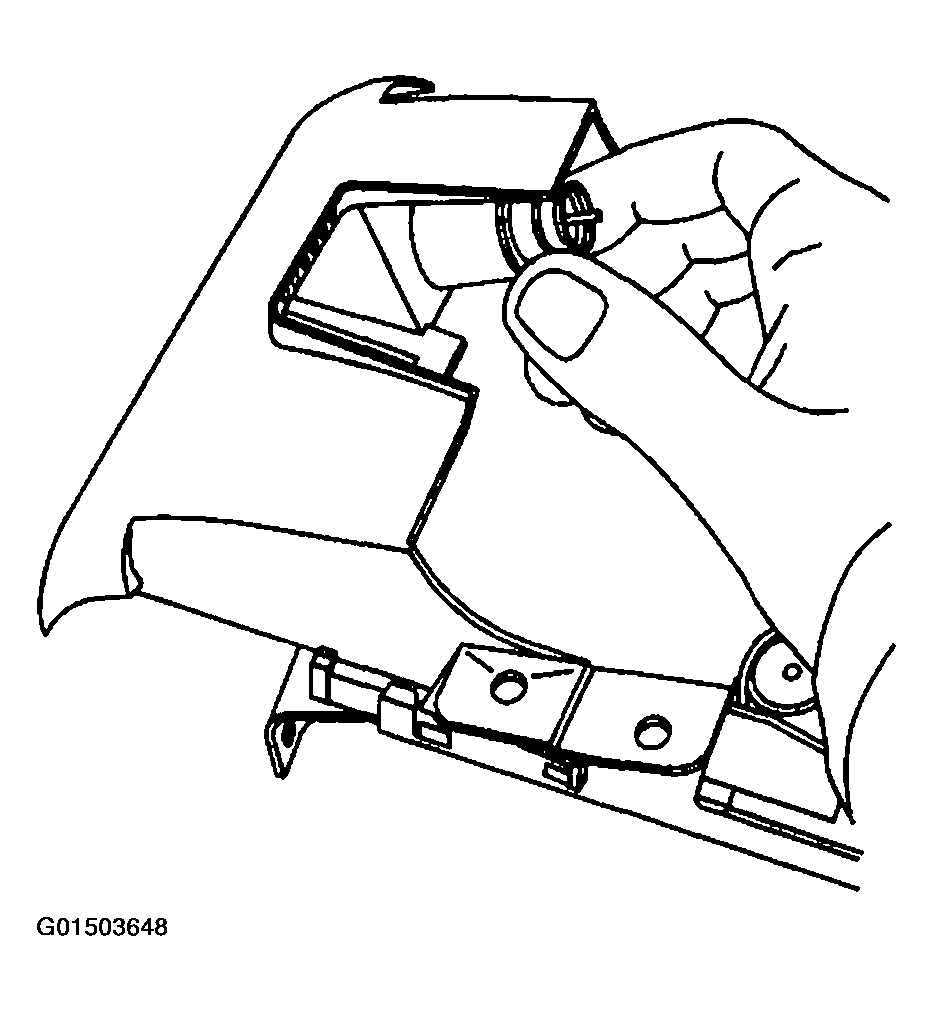

    Fig 1: Installing Lighter Element
    G01503648Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the lighter element.
  4. Install the ashtray. Refer to ASHTRAY REPLACEMENT  .

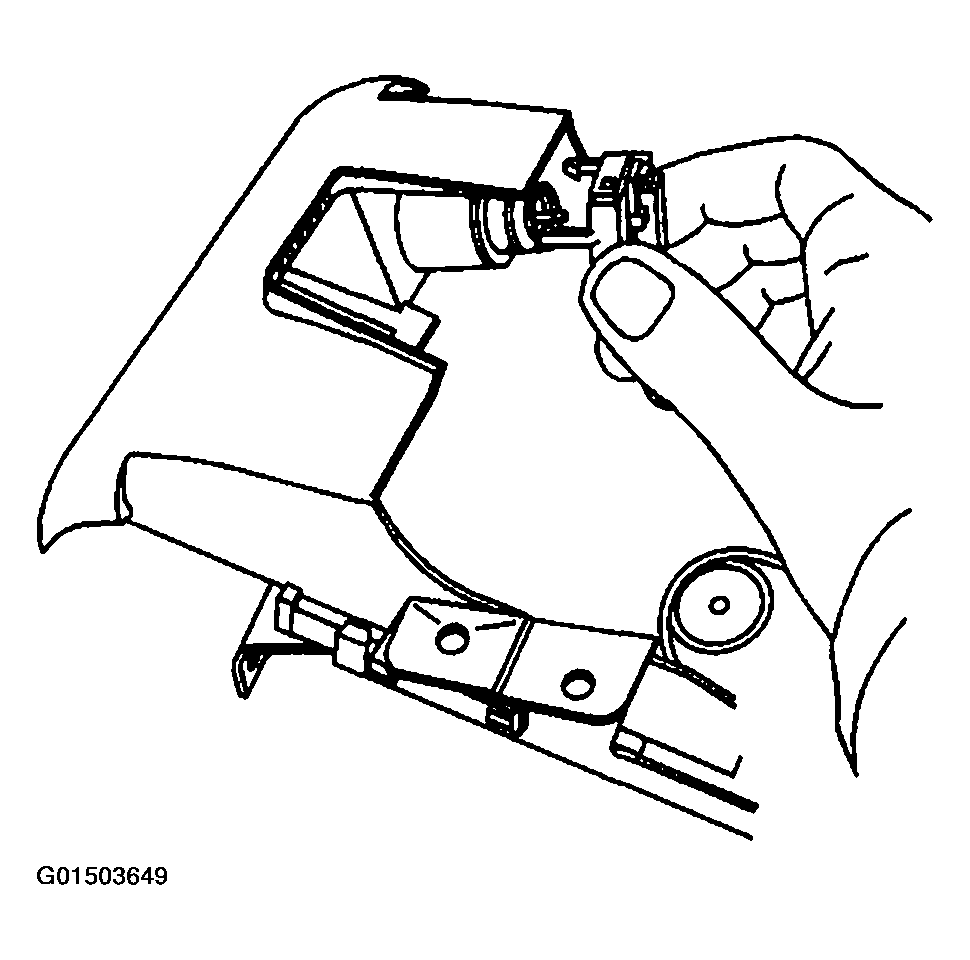

    Fig 2: Connecting Electrical Connector To Lighter Element
    G01503649Courtesy of GENERAL MOTORS CORP.
