Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  2. Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE  .
  3. Remove the ashtray from the bracket.

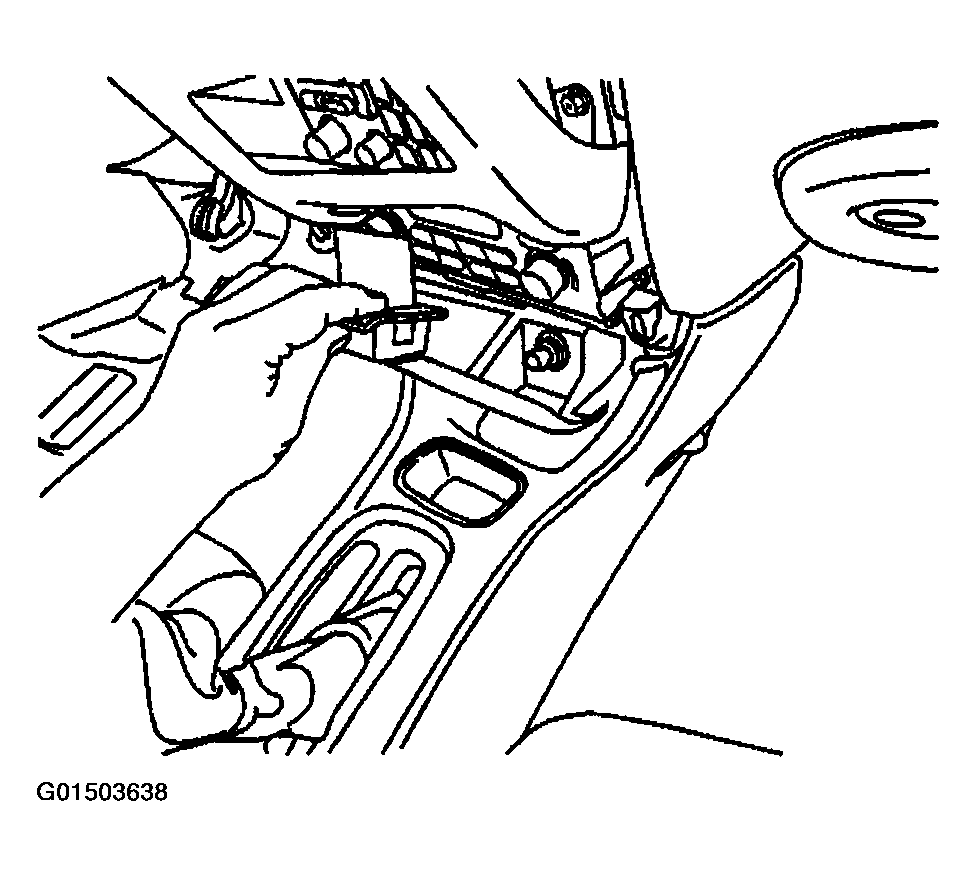

    Fig 1: Removing Ashtray From Bracket
    G01503638Courtesy of GENERAL MOTORS CORP.
  4. Remove the lower ashtray bracket screws.
  5. Remove the upper ashtray bracket screws.

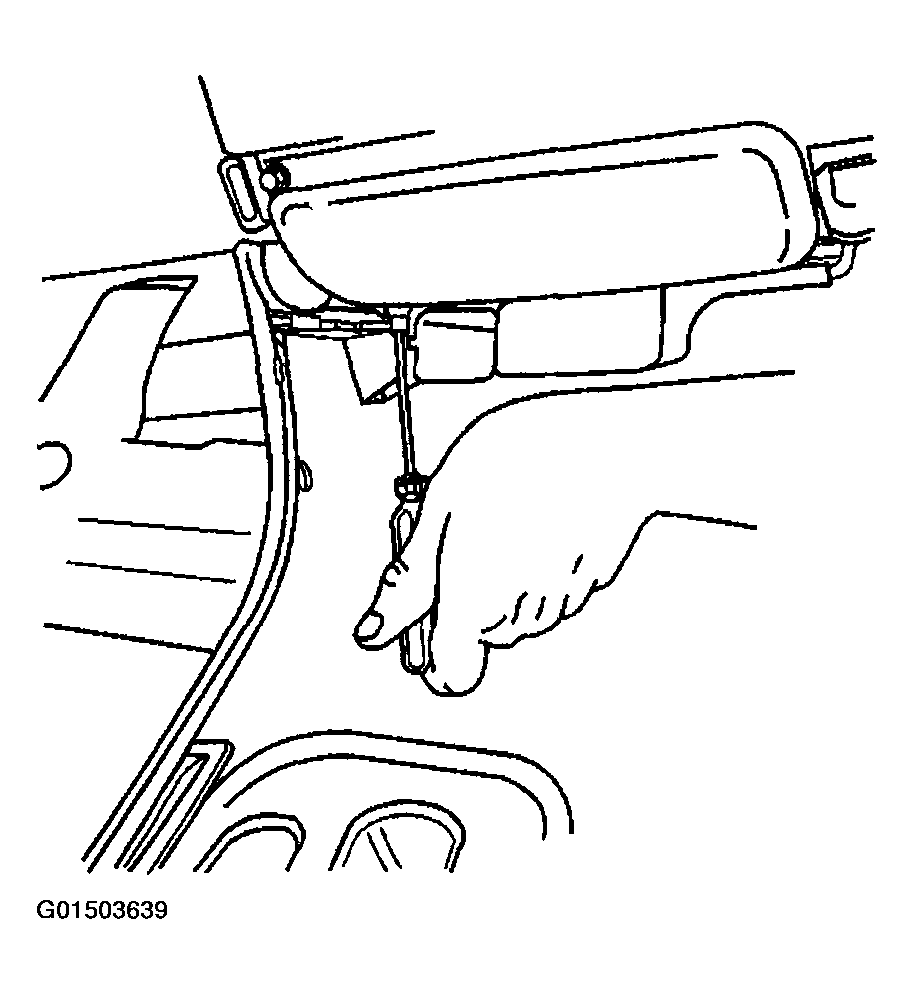

    Fig 2: Removing Ashtray Bracket Screws
    G01503639Courtesy of GENERAL MOTORS CORP.
  6. Remove the ashtray bracket from the I/P.
  7. Disconnect the electrical connector from the ashtray bracket.

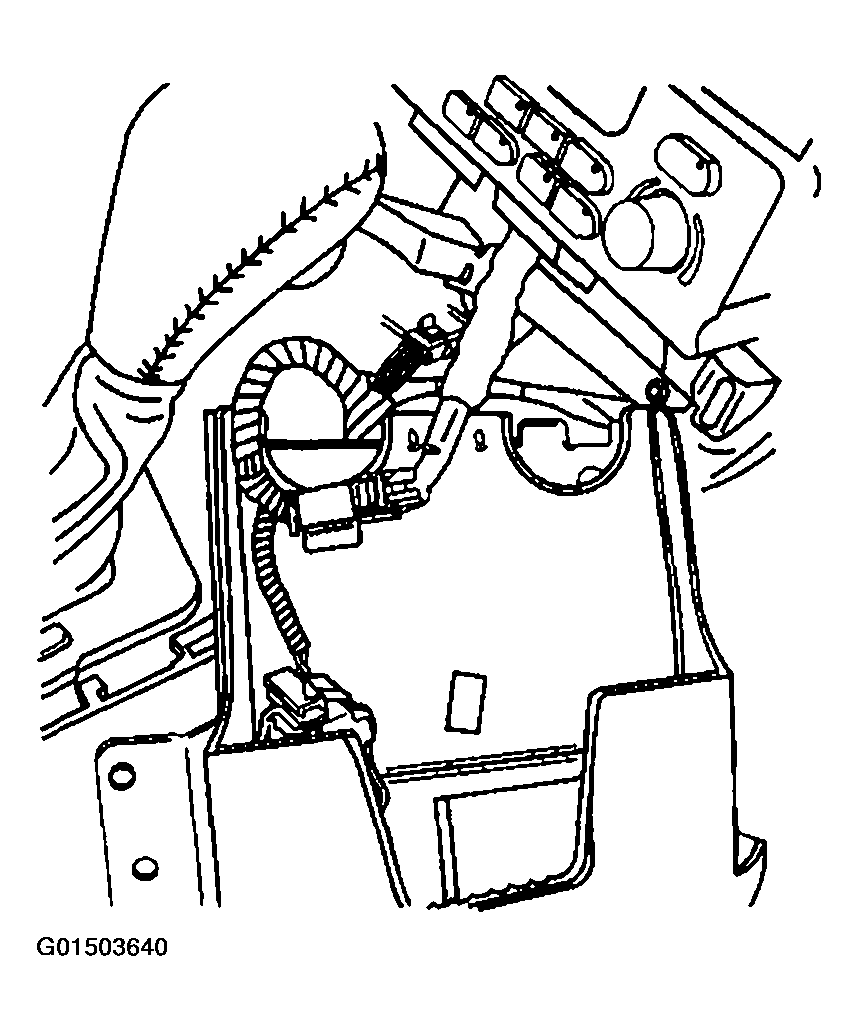

    Fig 3: Disconnecting Electrical Connector From Ashtray Bracket
    G01503640Courtesy of GENERAL MOTORS CORP.
