Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the ashtray bracket.
  2. Install the ashtray bracket to the I/P.

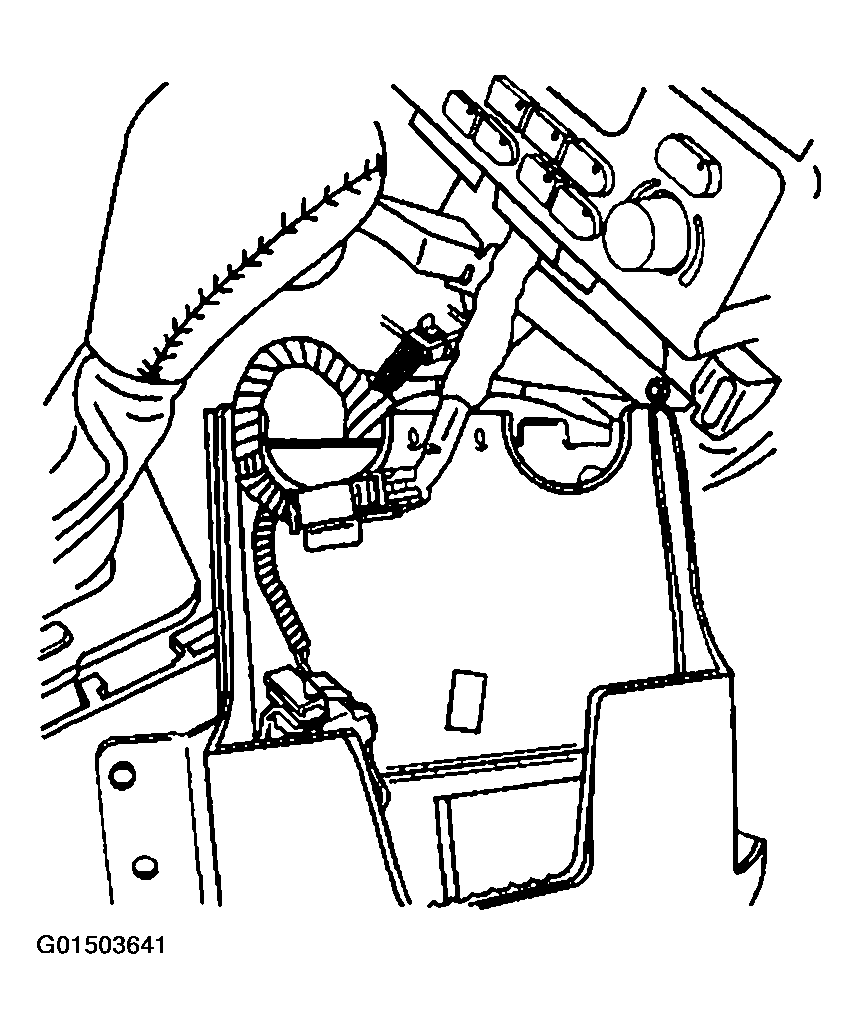

    Fig 1: Connecting Electrical Connector From Ashtray Bracket
    G01503641Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the upper ashtray bracket screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

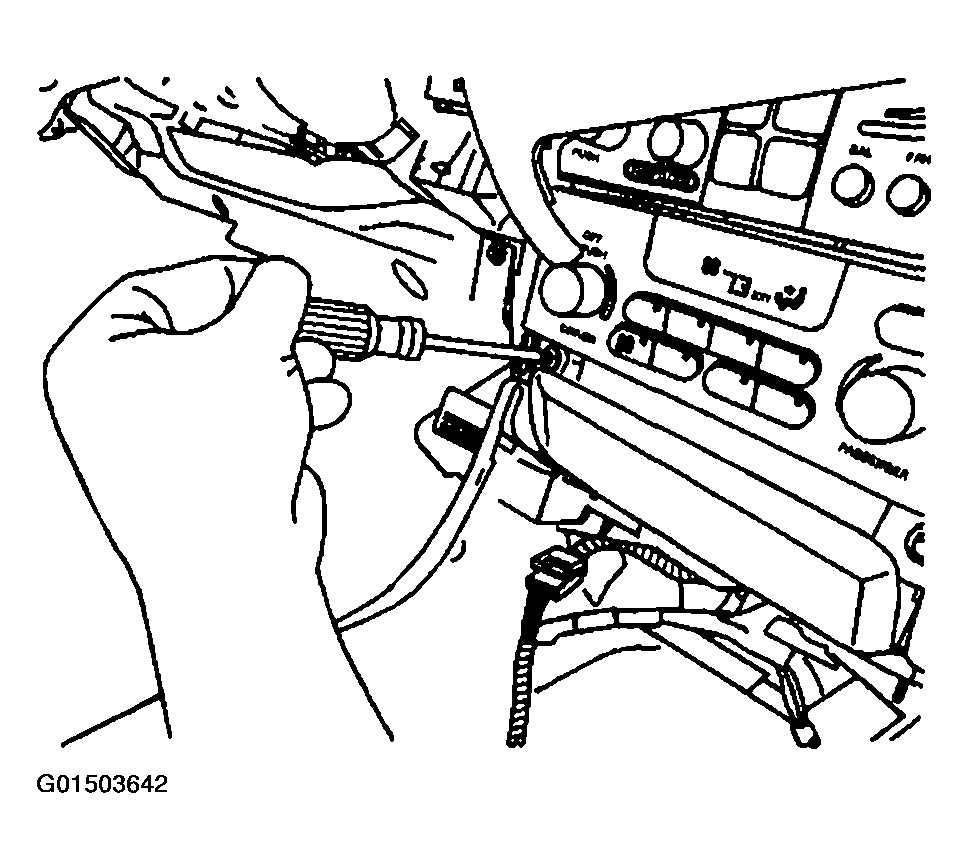

    Fig 2: Installing Upper Ashtray Bracket Screws
    G01503642Courtesy of GENERAL MOTORS CORP.
  4. Install the lower ashtray bracket screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

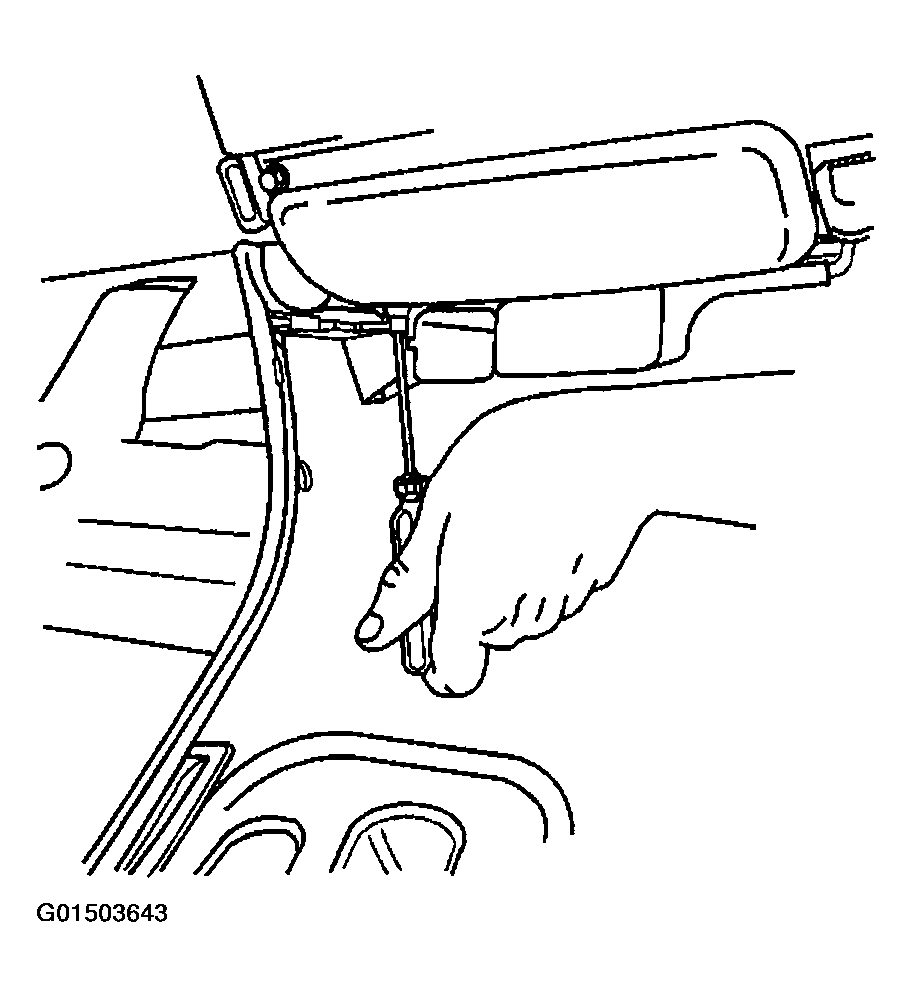

    Fig 3: Installing Lower Ashtray Bracket Screws
    G01503643Courtesy of GENERAL MOTORS CORP.
  5. Install the ashtray to the bracket.
  6. Install the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE  .
  7. Install the I/P cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

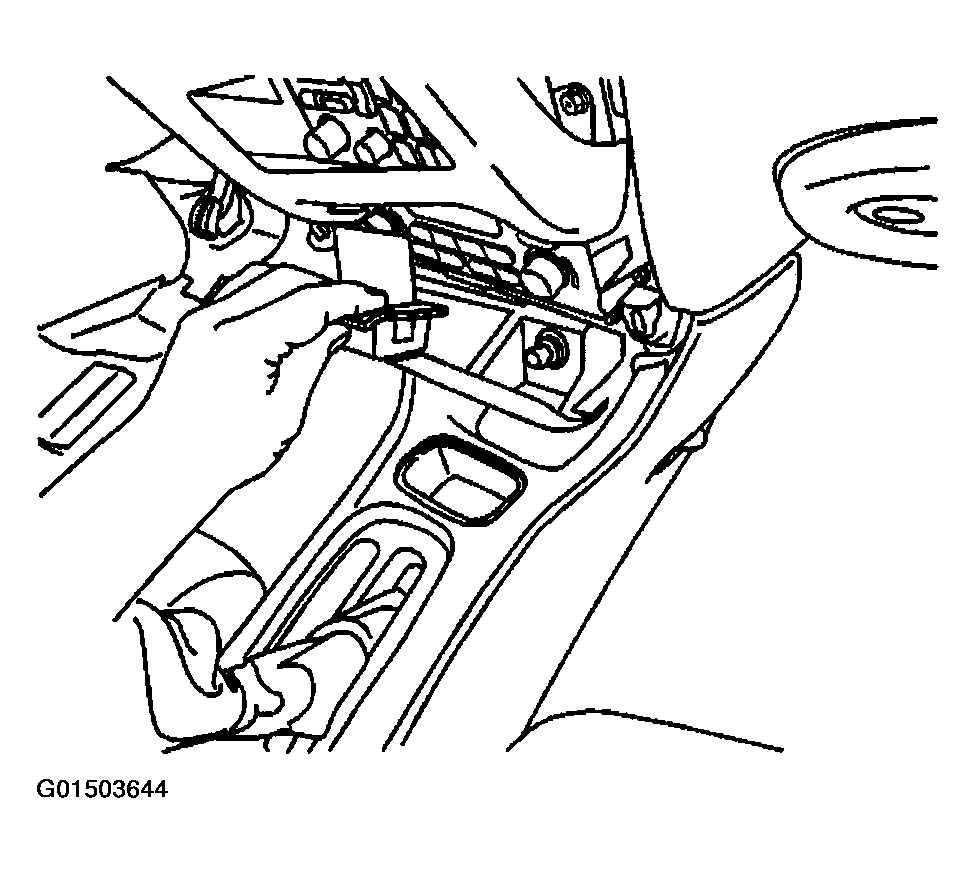

    Fig 4: Installing Ashtray To Bracket
    G01503644Courtesy of GENERAL MOTORS CORP.
