Scan Tool Output Controls

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

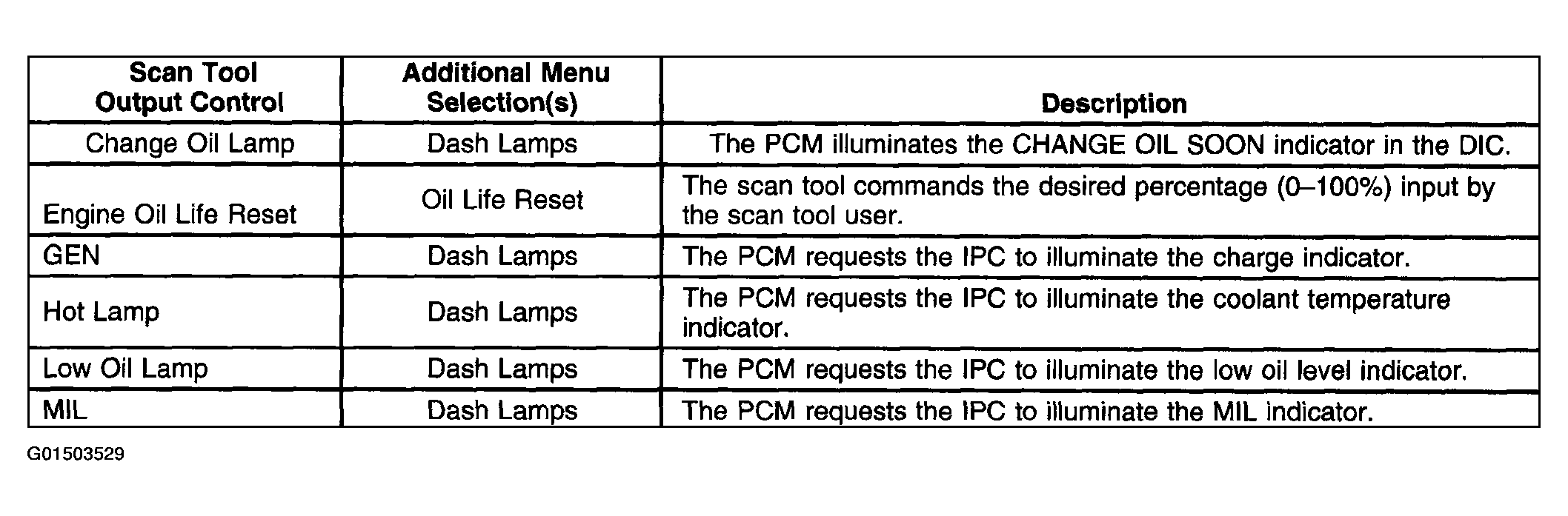

Fig 1: Powertrain Control Module - Scan Tool Output Controls Description Table
G01503529Courtesy of GENERAL MOTORS CORP.
