Indicator/Warning Message Description and Operation: Notes
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

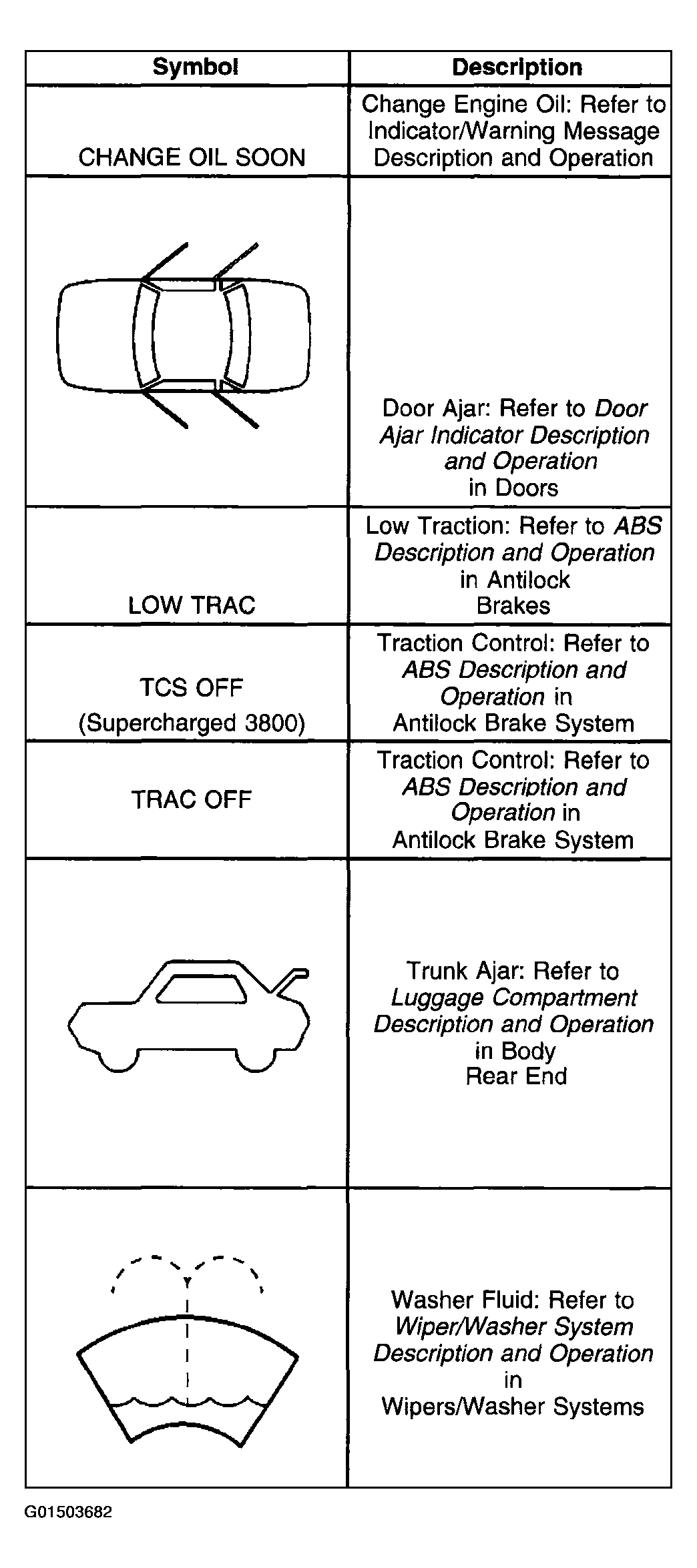

Fig 1: Indicator/Warning Message Description Table (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

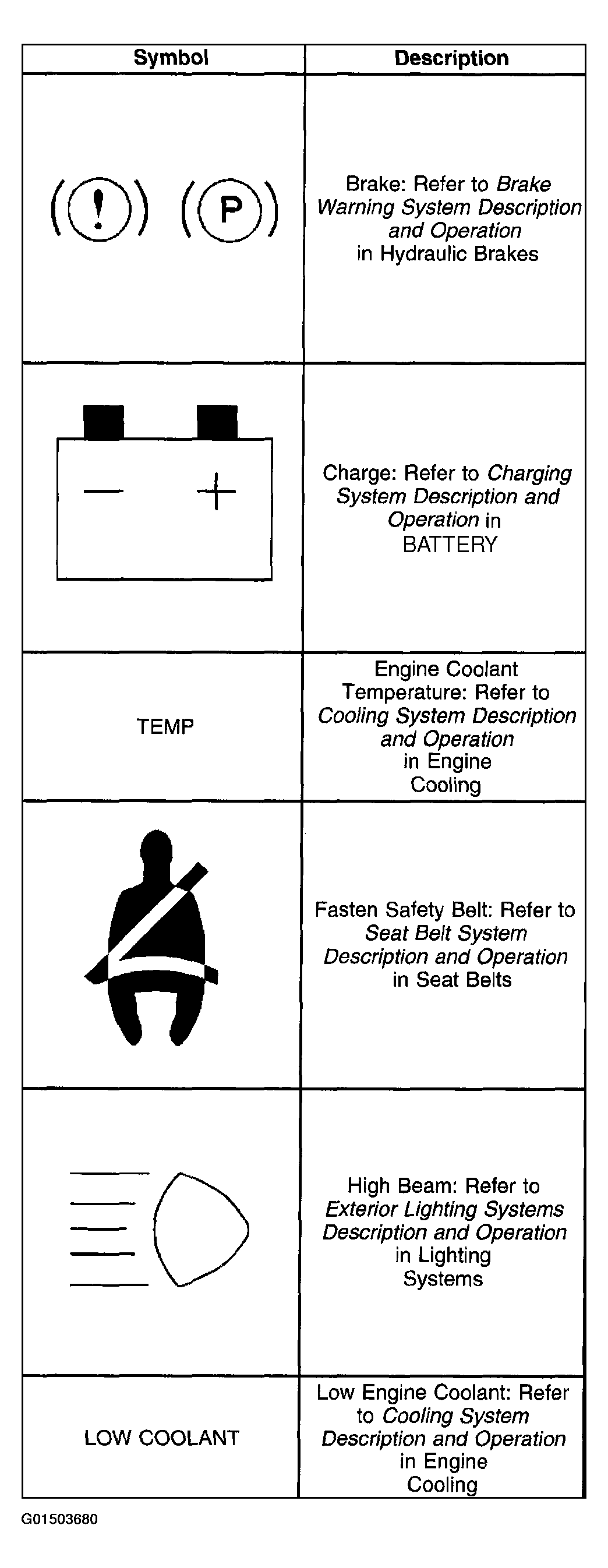

Fig 2: Indicator/Warning Message Description Table (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

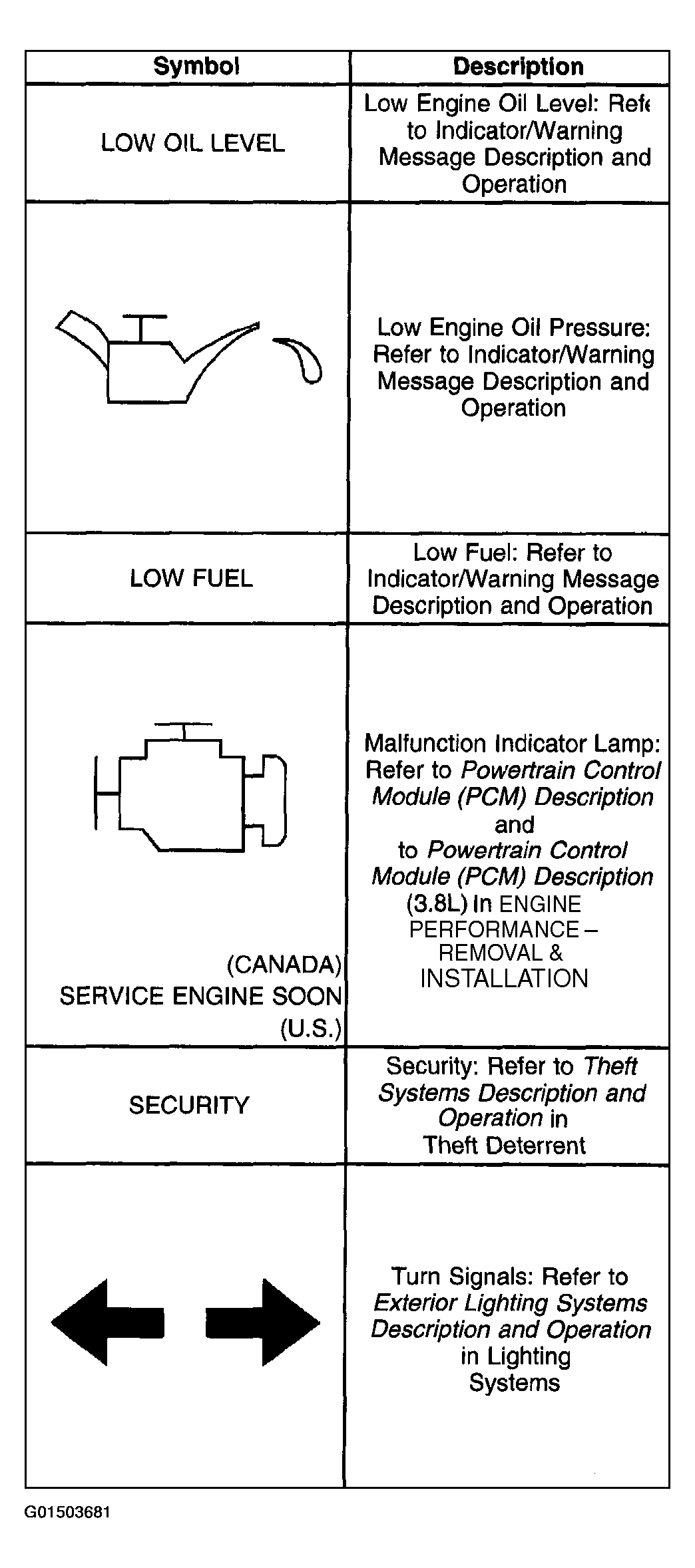

Fig 3: Indicator/Warning Message Description Table (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Driver Information Center Warning Messages Description Table
Courtesy of GENERAL MOTORS CORP.

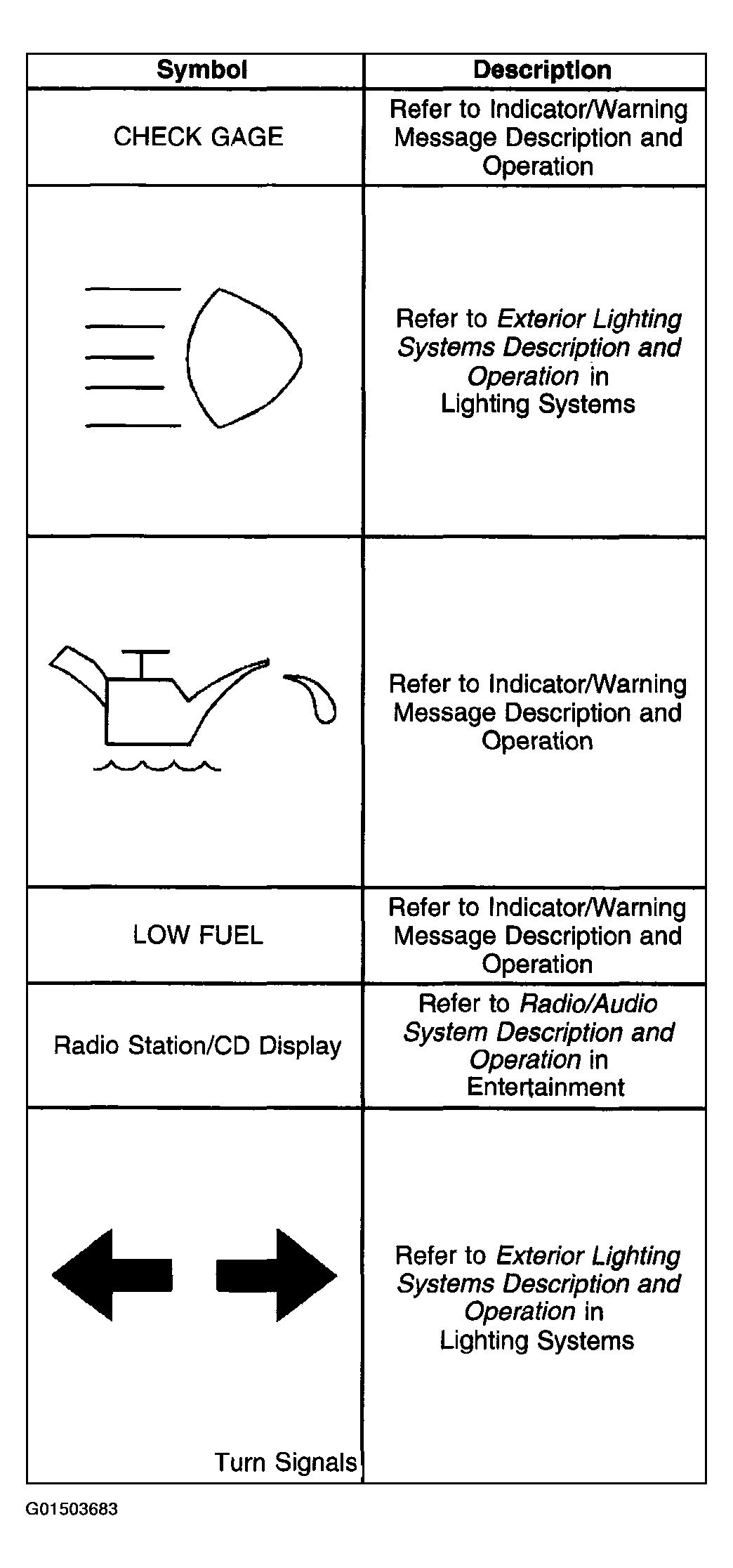

Fig 5: Heads Up Display Indicators Description Table
