Instrument Panel, Gages, and Console Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

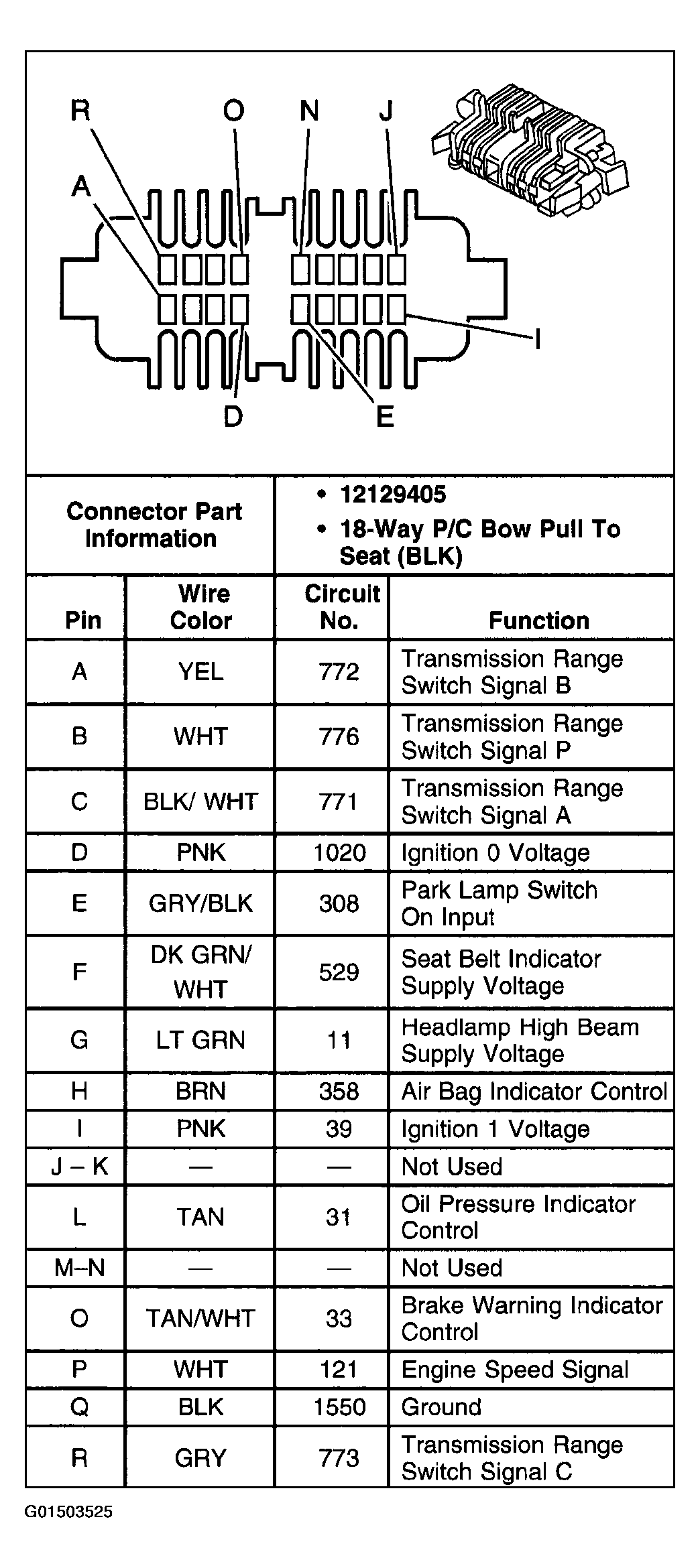

Fig 1: Driver Information Center (W/O U40) Connector End View

Courtesy of GENERAL MOTORS CORP.

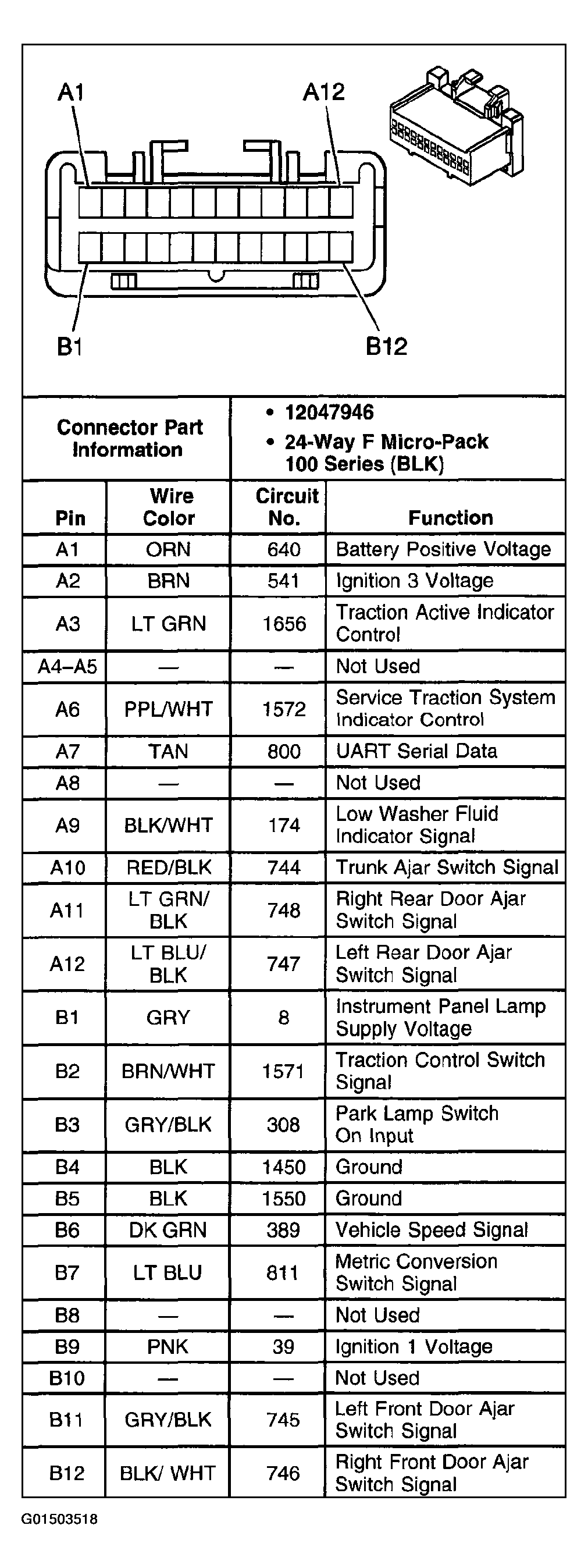

Fig 2: Driver Information Center (U40) Connector End View

Courtesy of GENERAL MOTORS CORP.

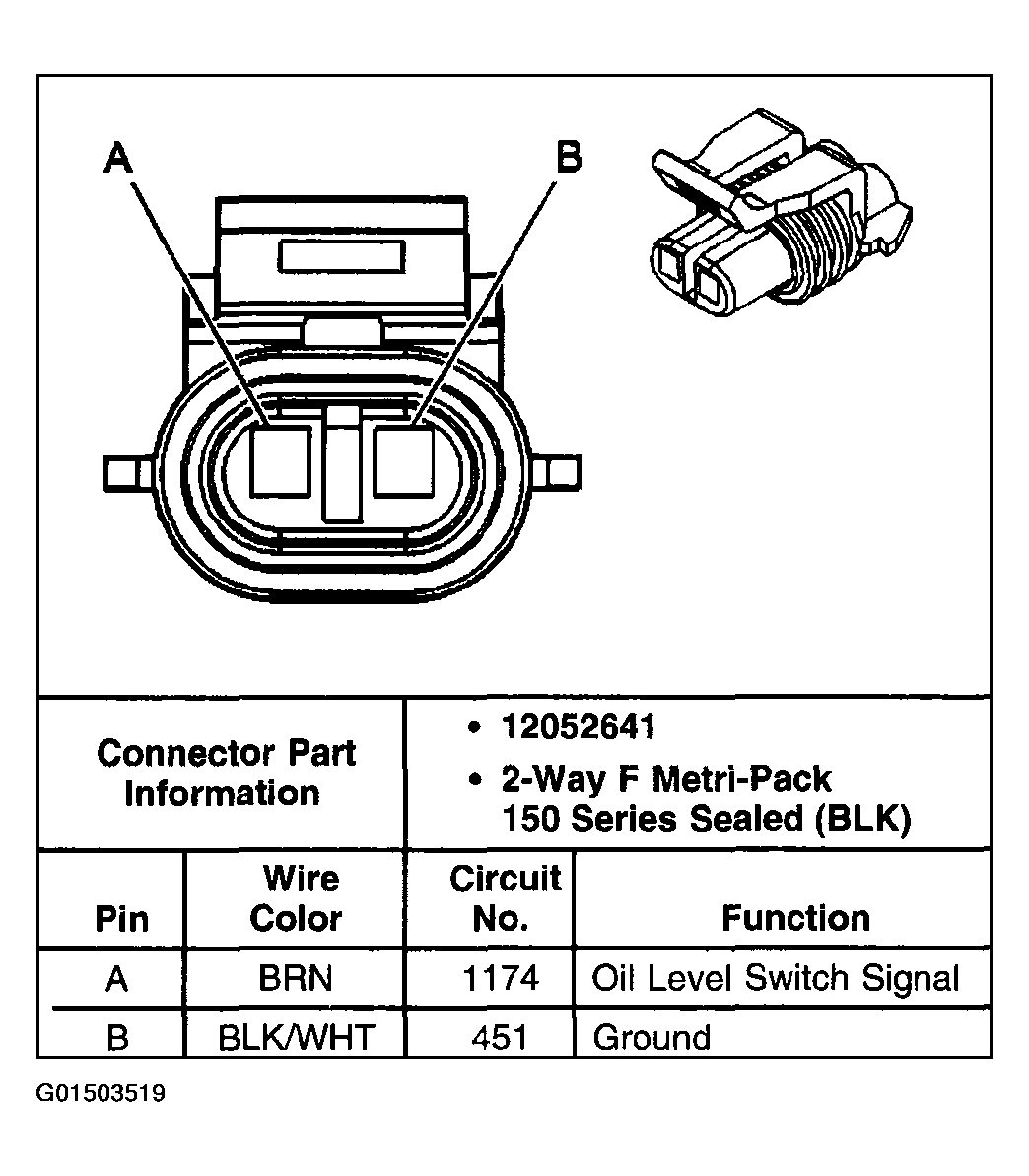

Fig 3: Engine Oil Level Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

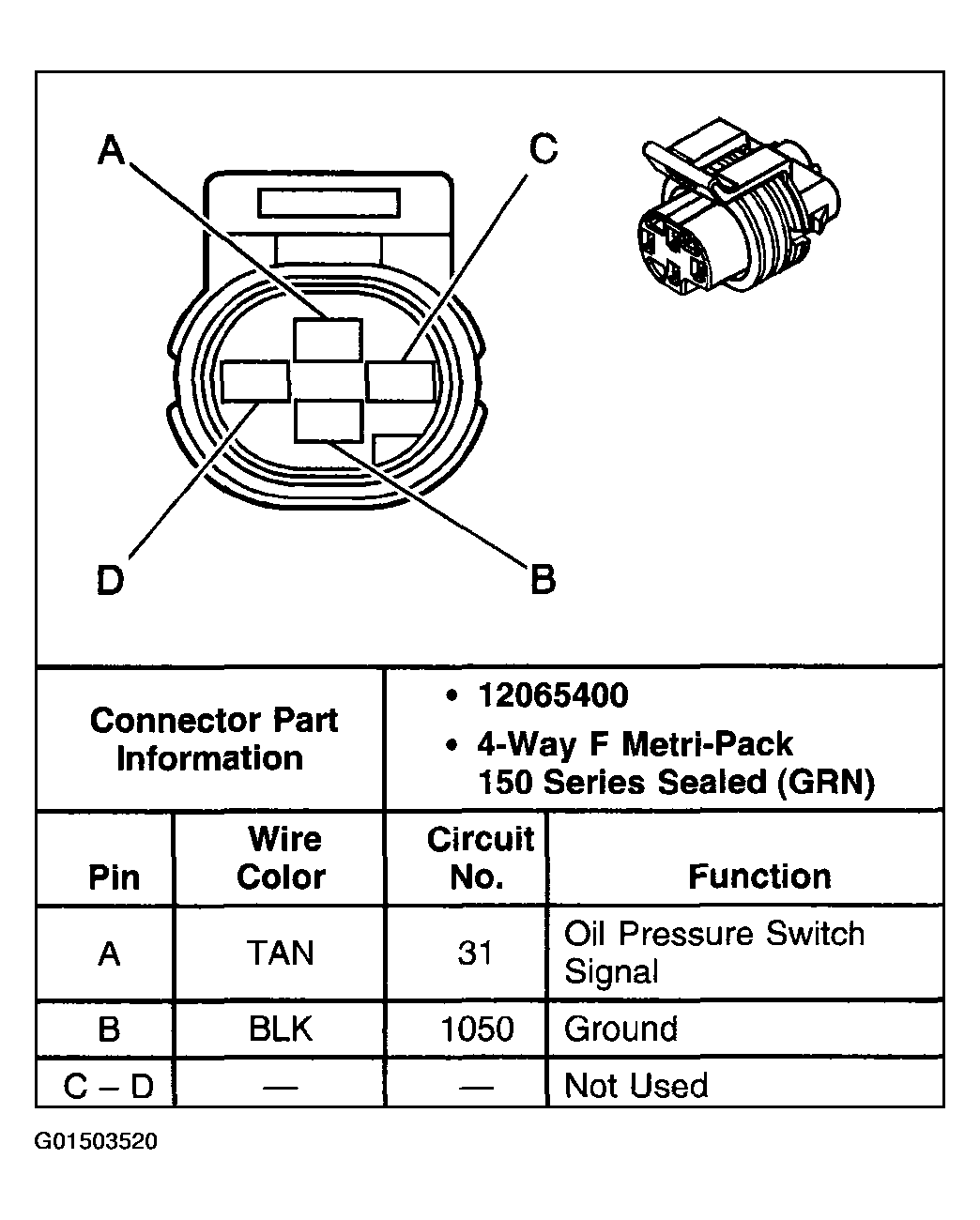

Fig 4: Engine Oil Pressure Switch (L36, L67) Connector End View

Courtesy of GENERAL MOTORS CORP.

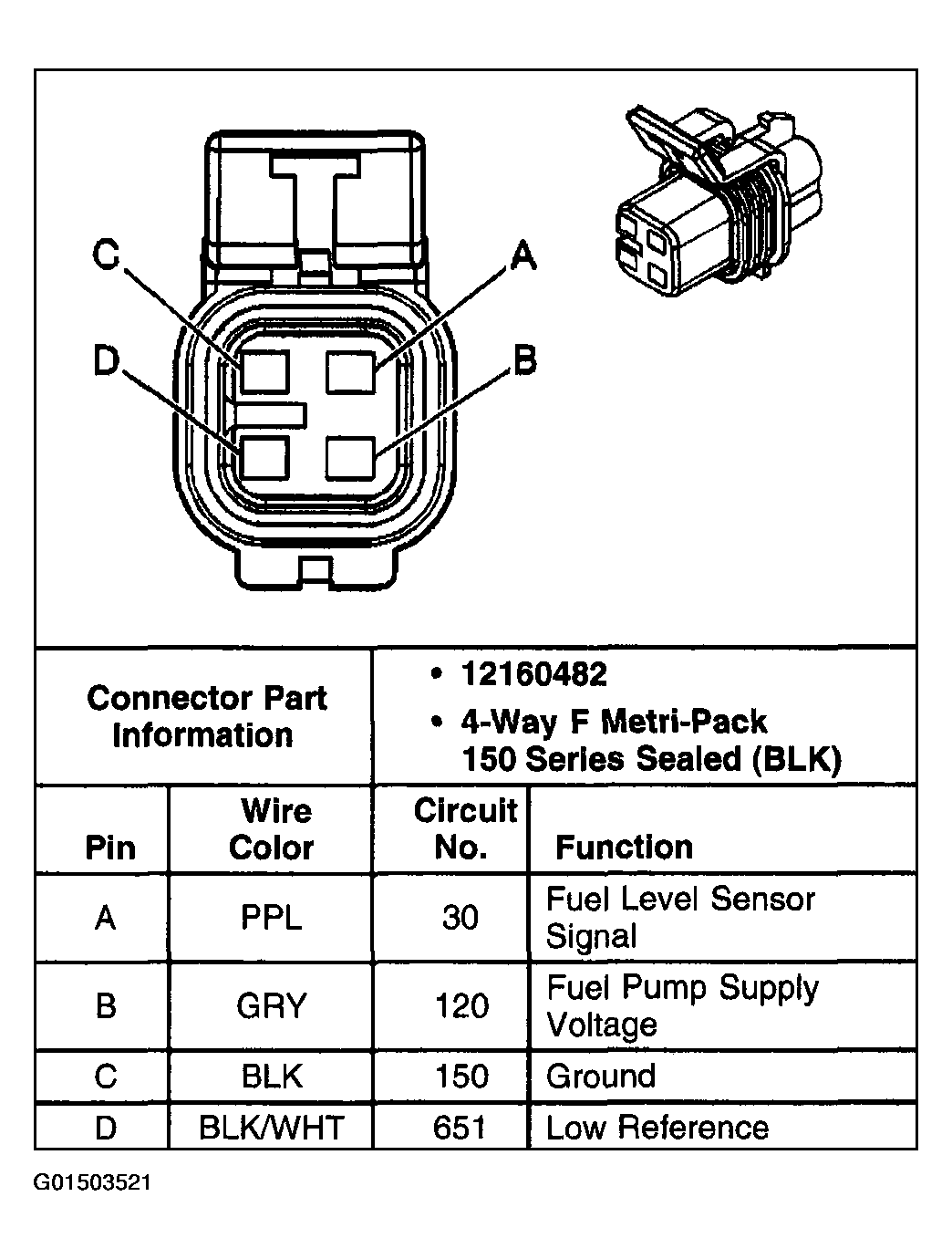

Fig 5: Fuel Pump And Sender Assembly Connector End View

Courtesy of GENERAL MOTORS CORP.

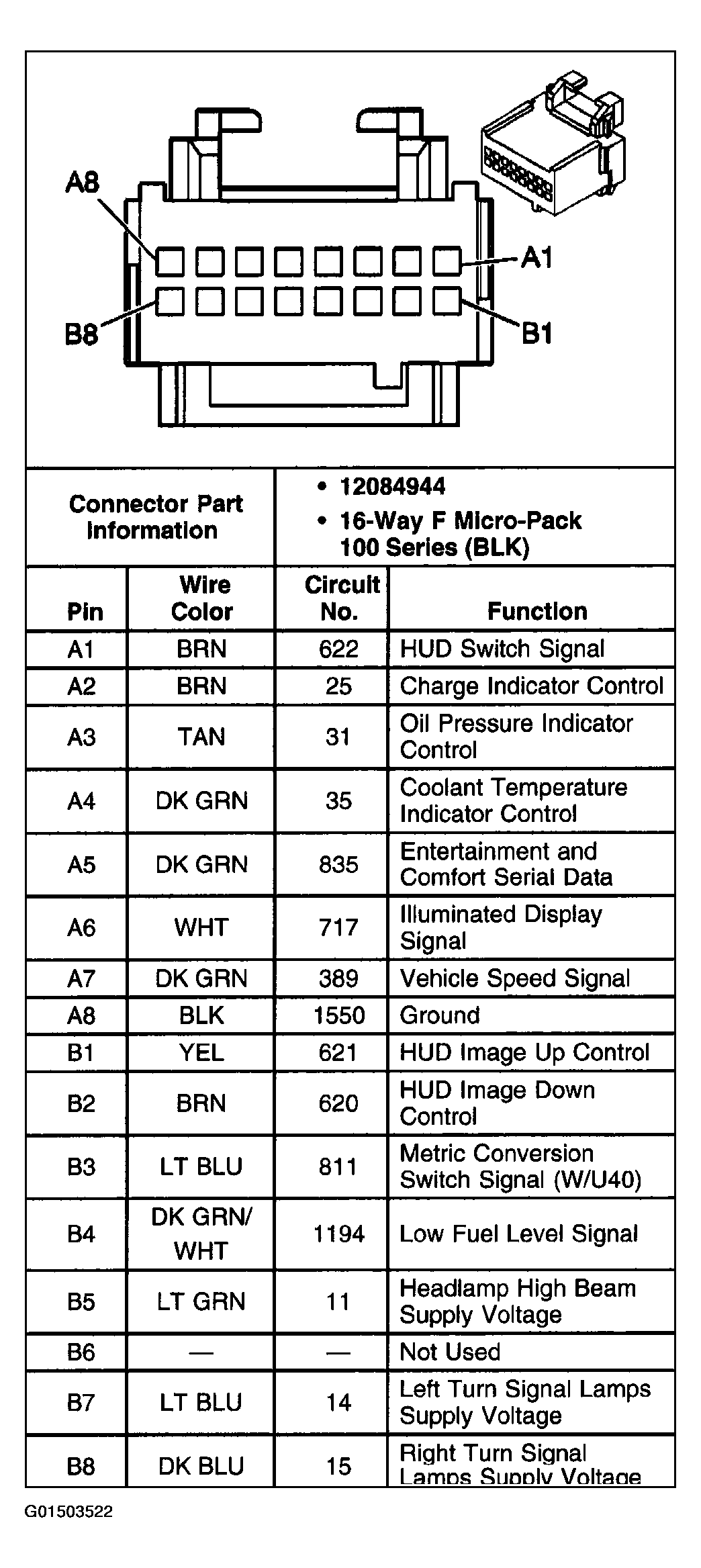

Fig 6: Head Up Display (UV6) Connector End View

Courtesy of GENERAL MOTORS CORP.

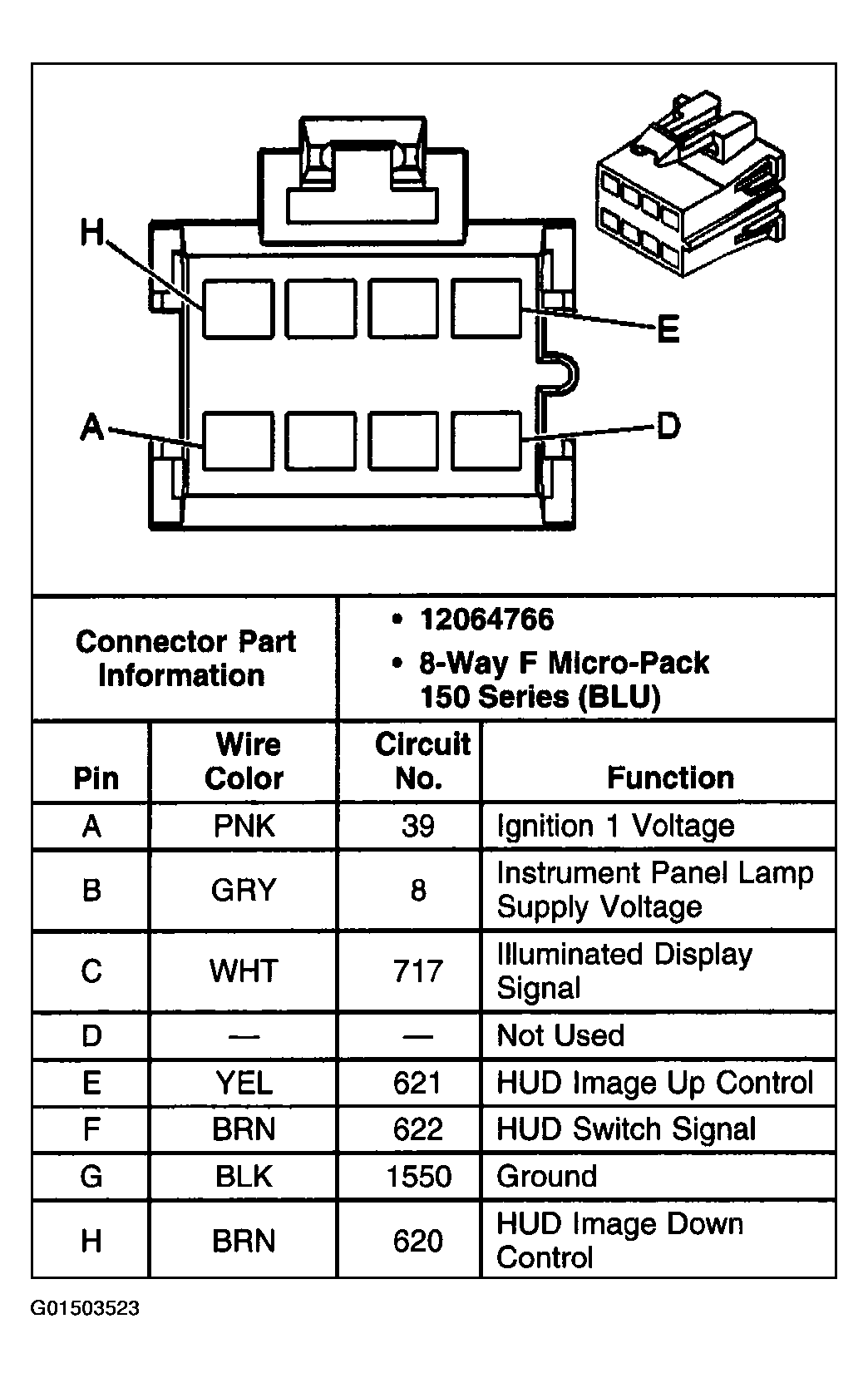

Fig 7: Head Up Display Switch (UV6) Connector End View

Courtesy of GENERAL MOTORS CORP.

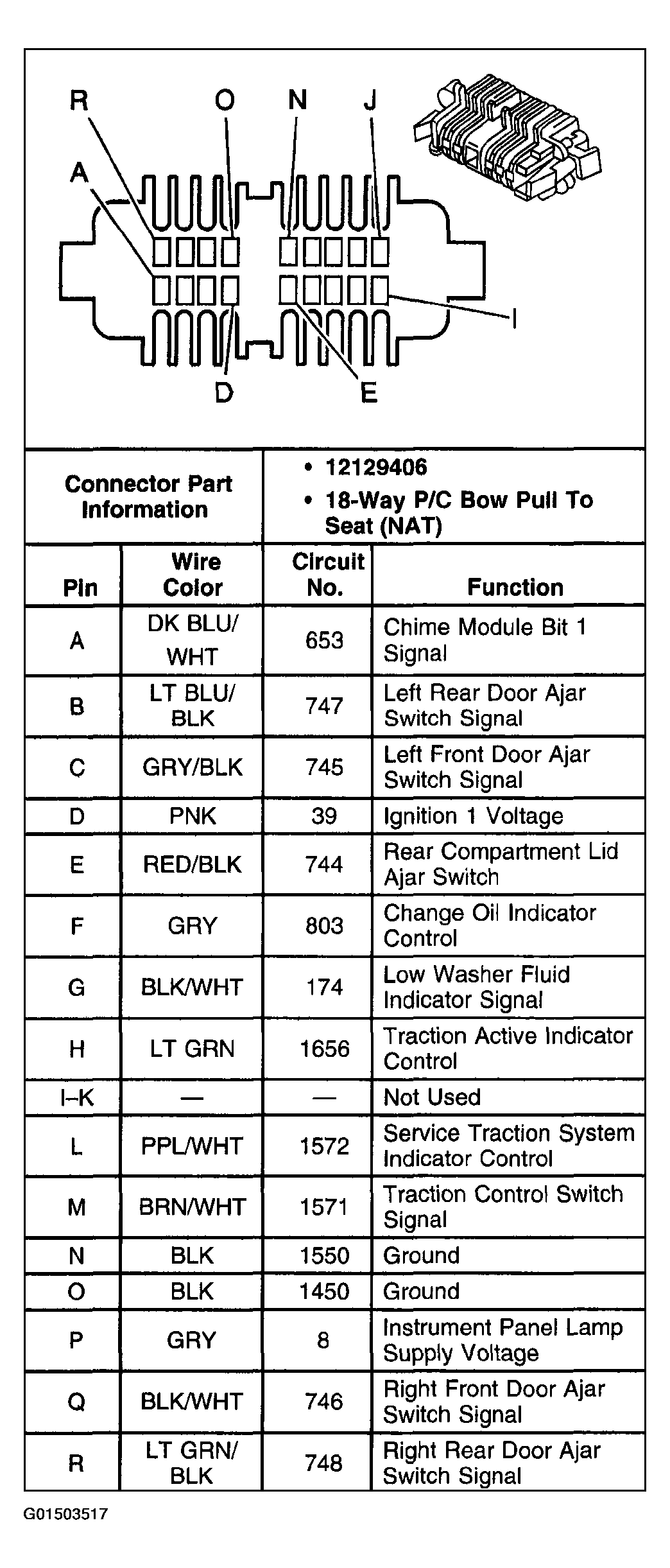

Fig 8: Instrument Panel Cluster, C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

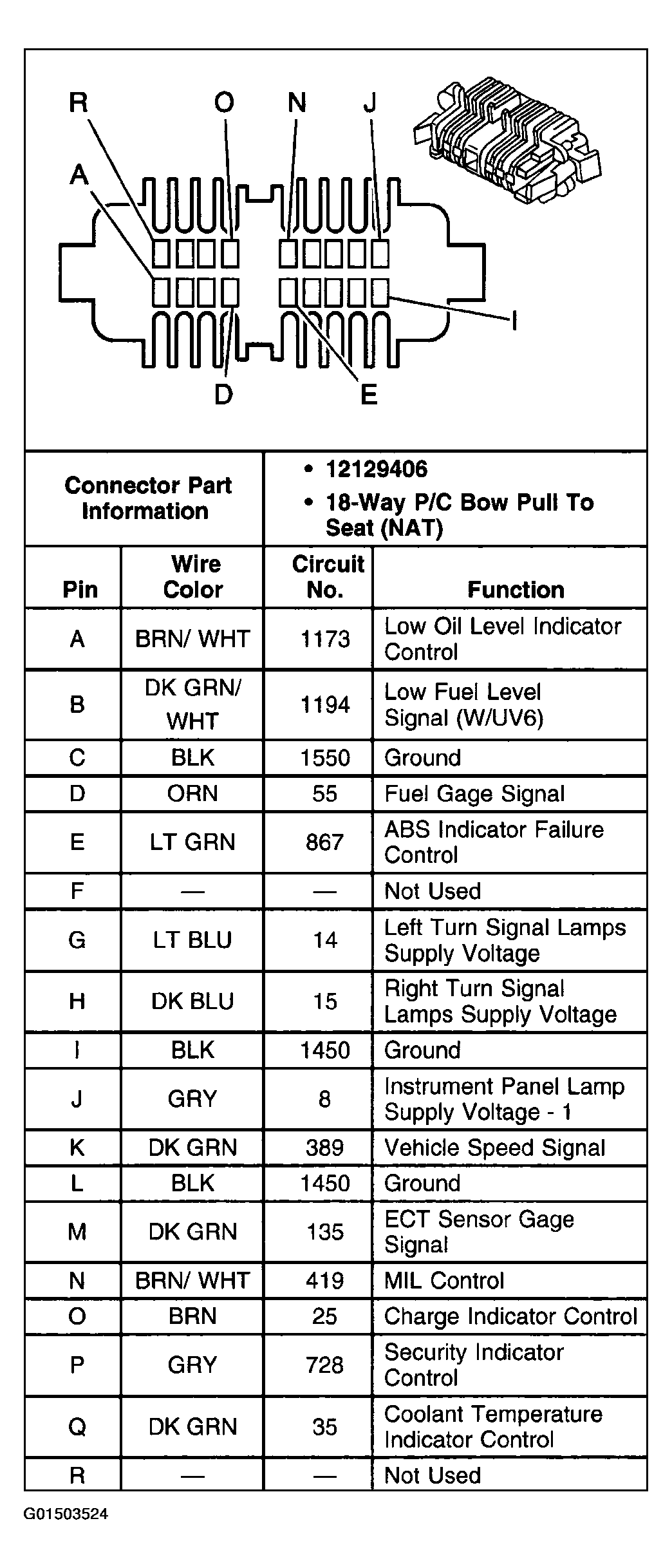

Fig 9: Instrument Panel Cluster, C2 Connector End View

Courtesy of GENERAL MOTORS CORP.
