Instrument Panel, Gages, and Console Component Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

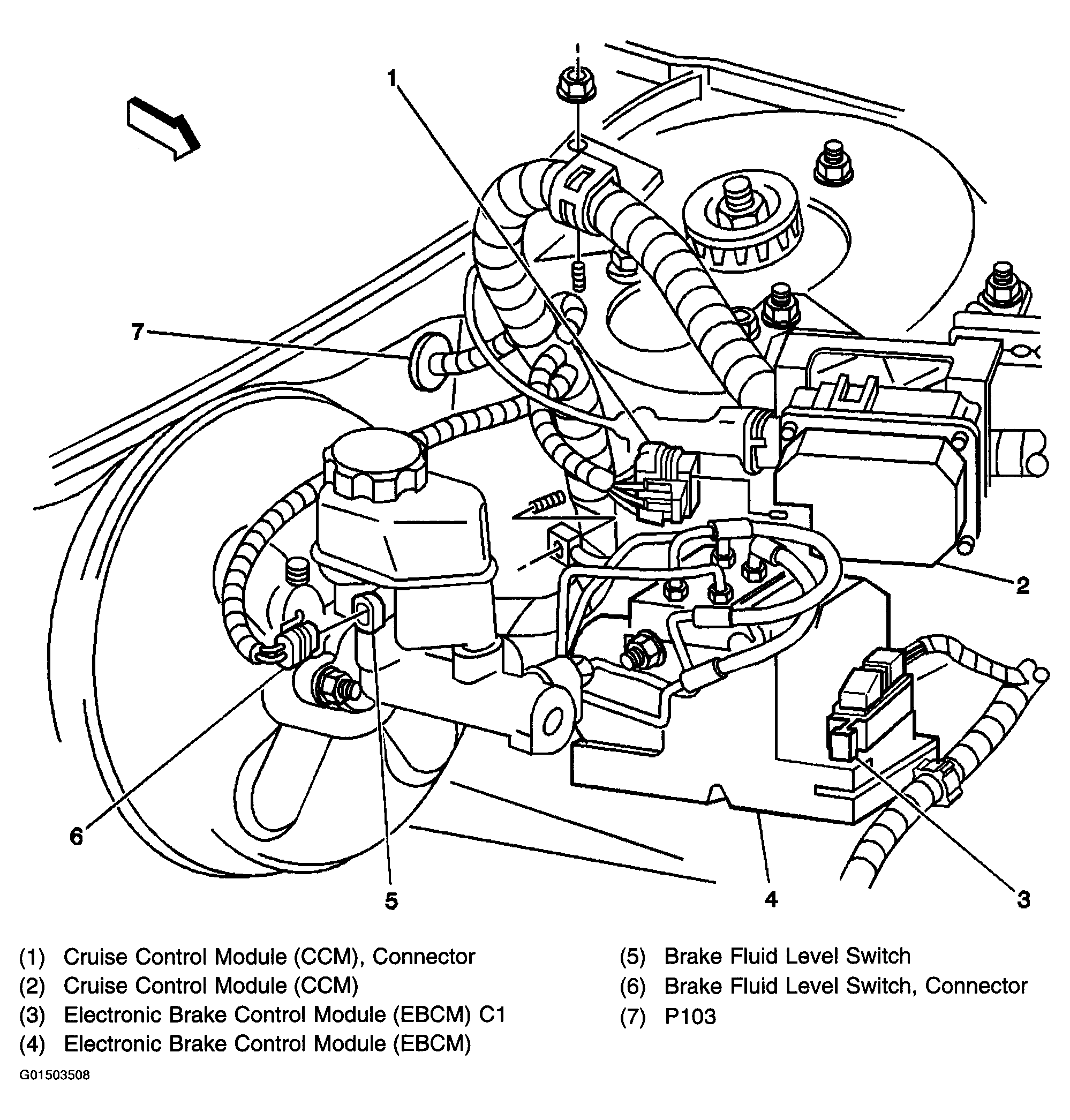

Fig 1: Upper Left Side of Engine Compartment Bulkhead Component Locator
G01503508Courtesy of GENERAL MOTORS CORP.

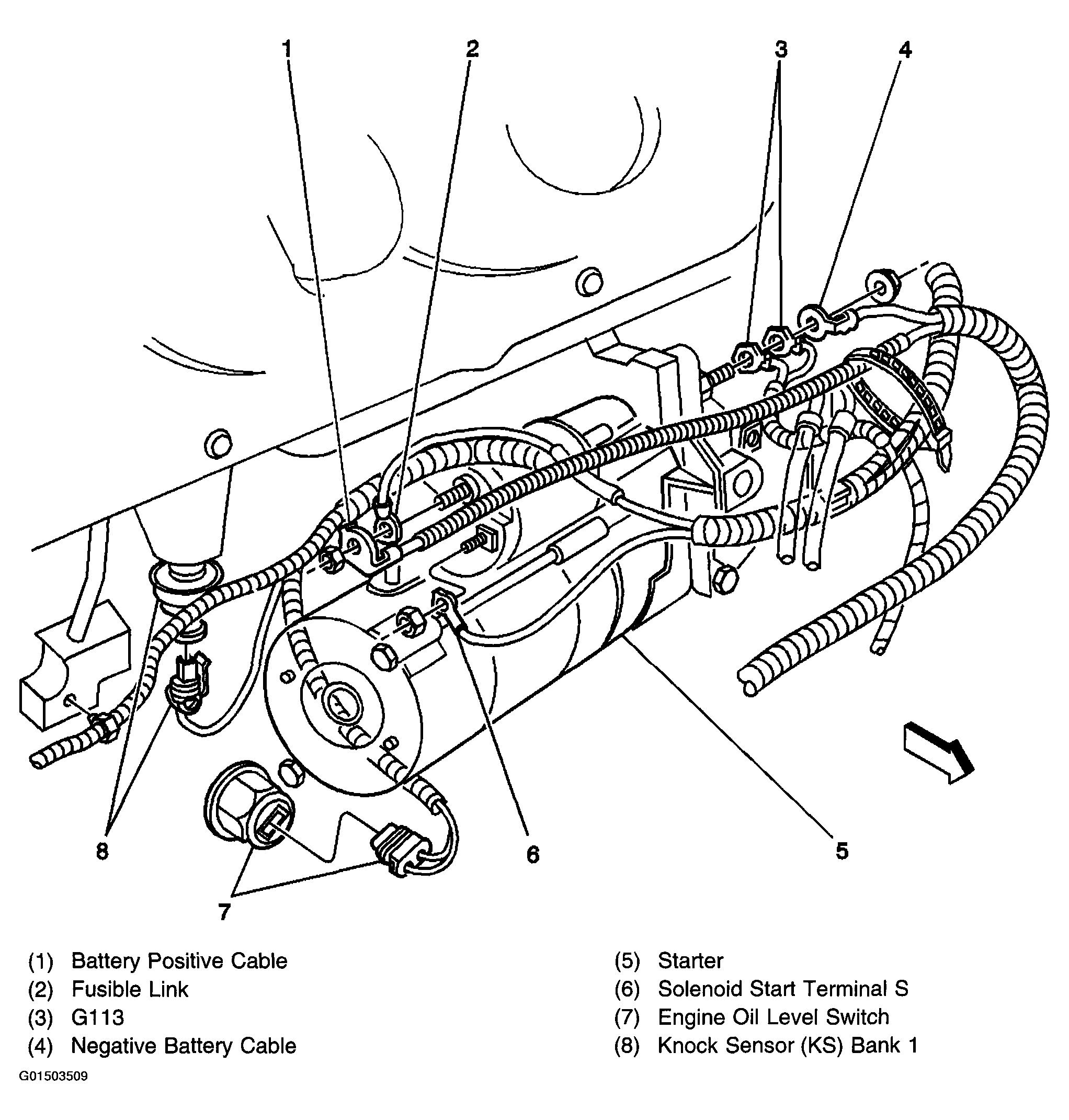

Fig 2: Lower Left Front of Engine - RPO L36, L67 Component View
G01503509Courtesy of GENERAL MOTORS CORP.

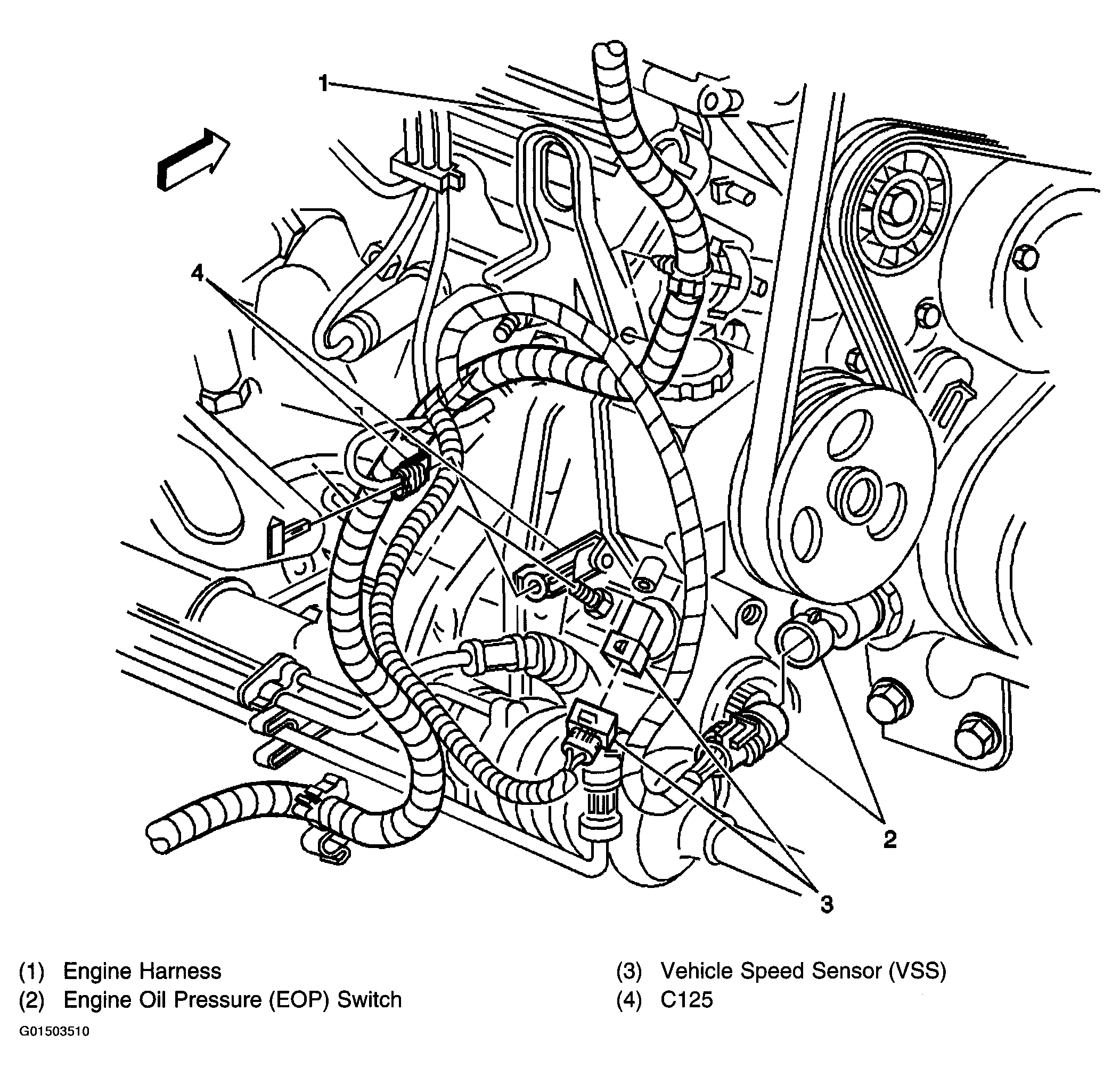

Fig 3: Lower Right Rear of Engine - RPO L36, L67 Component View
G01503510Courtesy of GENERAL MOTORS CORP.

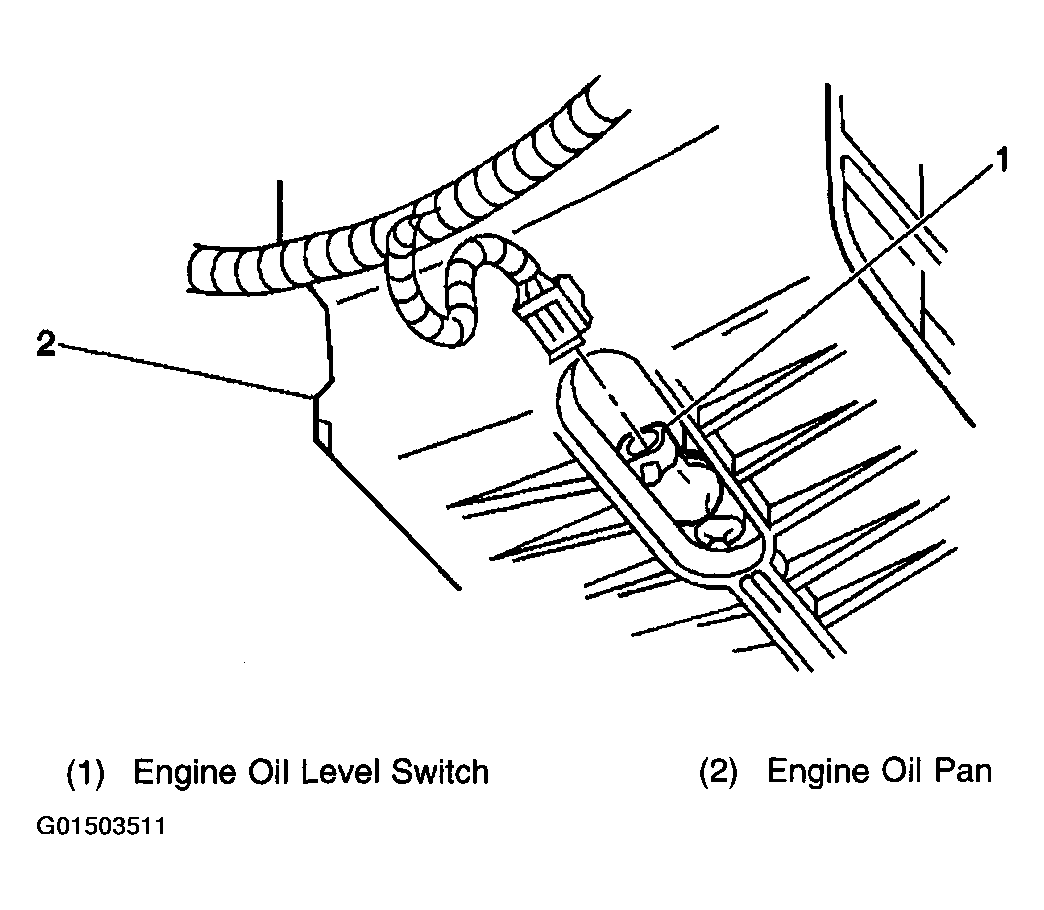

Fig 4: Center of Oil Pan (LG8) Component View
G01503511Courtesy of GENERAL MOTORS CORP.

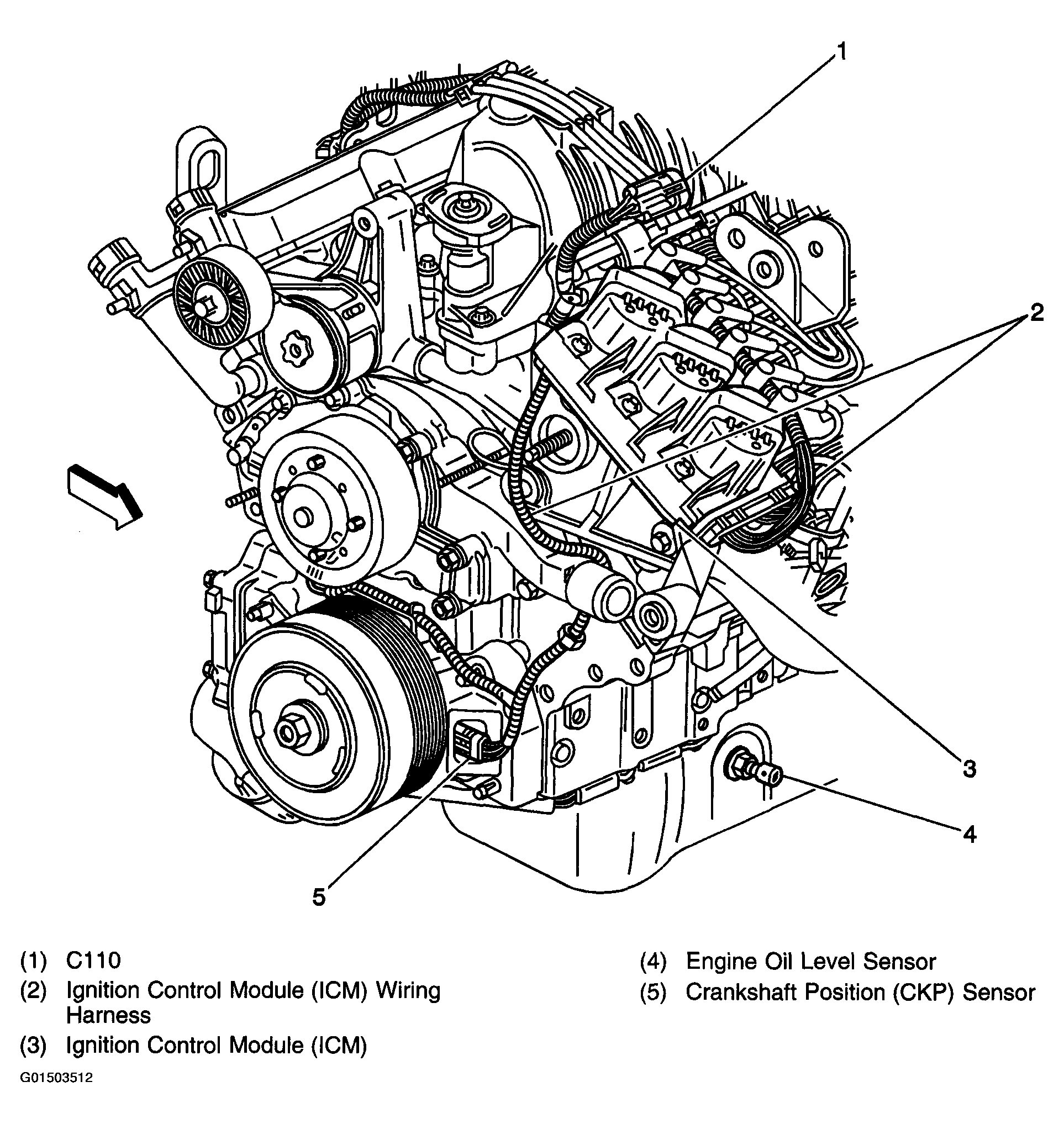

Fig 5: Right Front Side of Engine (W/RPO L36, L67) Component View
G01503512Courtesy of GENERAL MOTORS CORP.

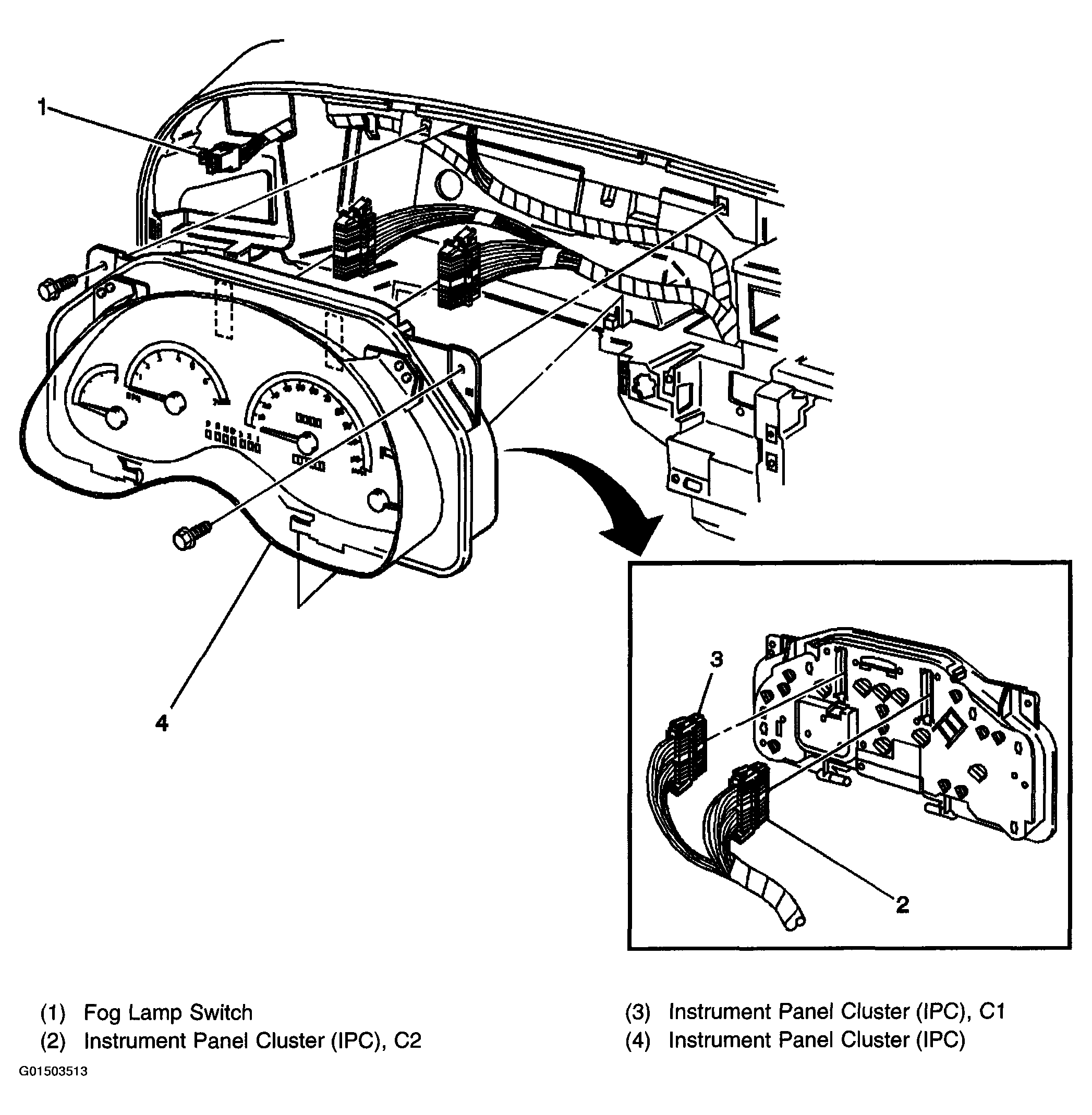

Fig 6: Instrument Panel Cluster (IPC) - Left Side Component View
G01503513Courtesy of GENERAL MOTORS CORP.

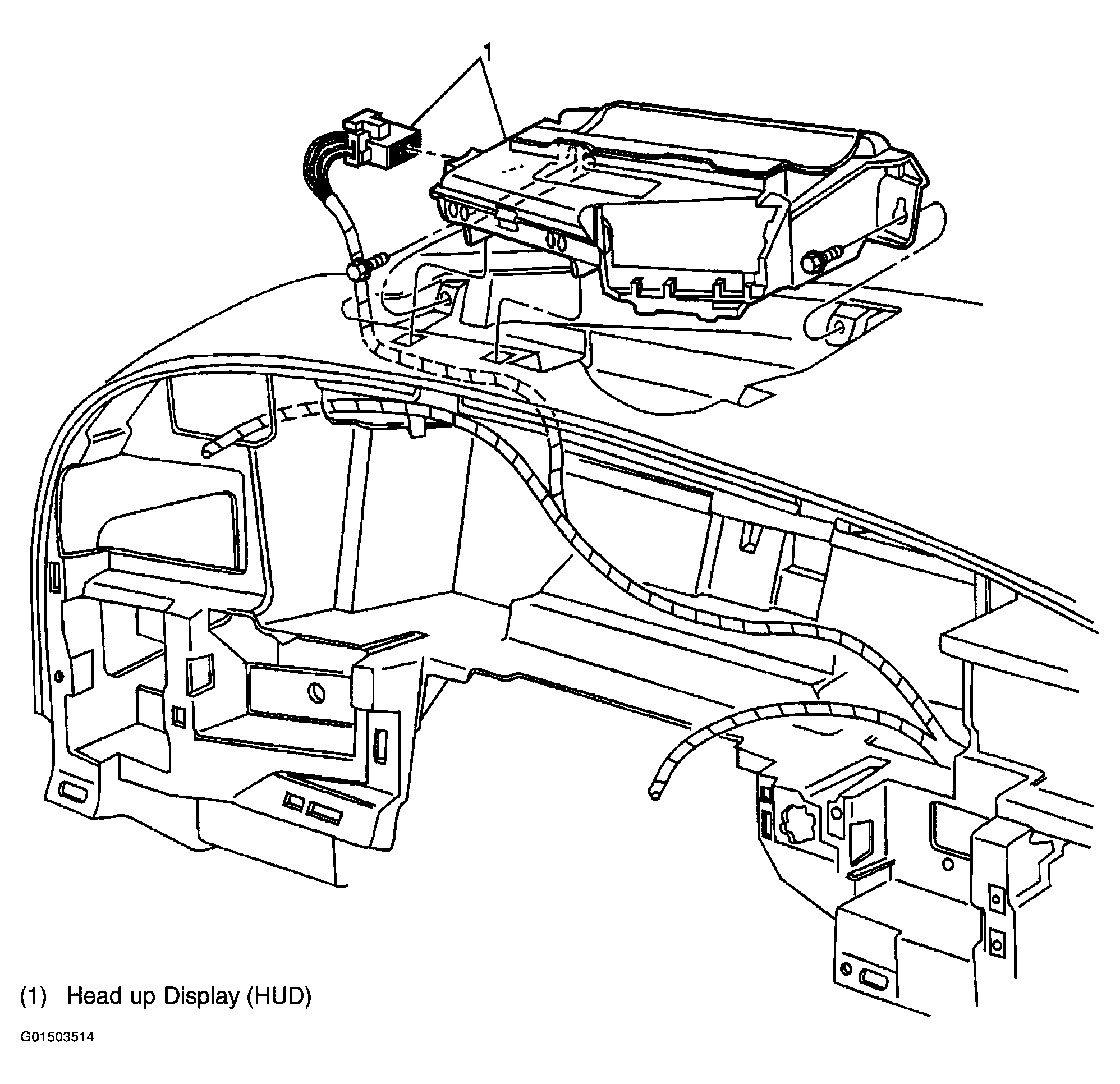

Fig 7: Top Left Side of I/P Component View
G01503514Courtesy of GENERAL MOTORS CORP.

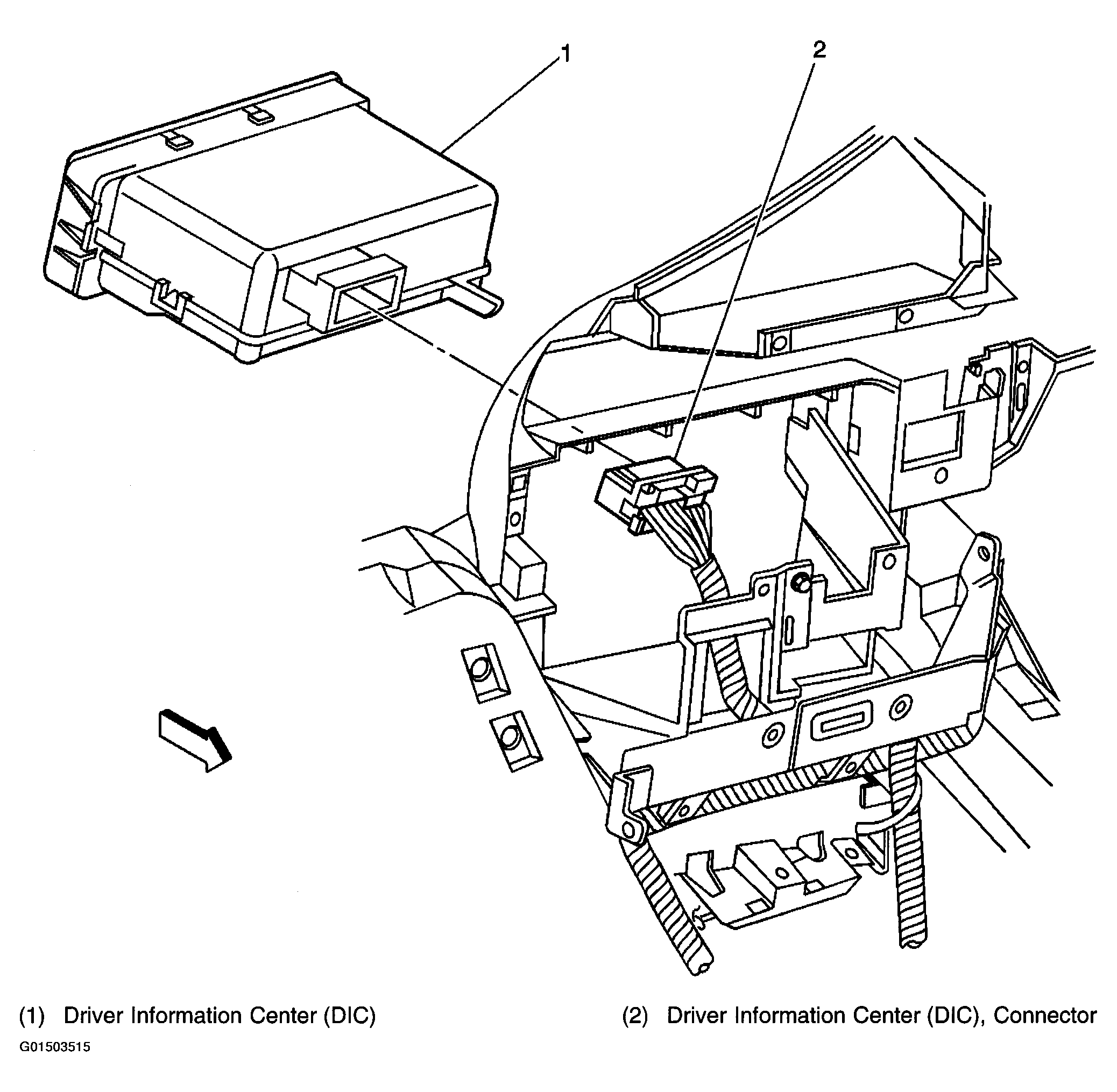

Fig 8: Center of I/P Component View
G01503515Courtesy of GENERAL MOTORS CORP.

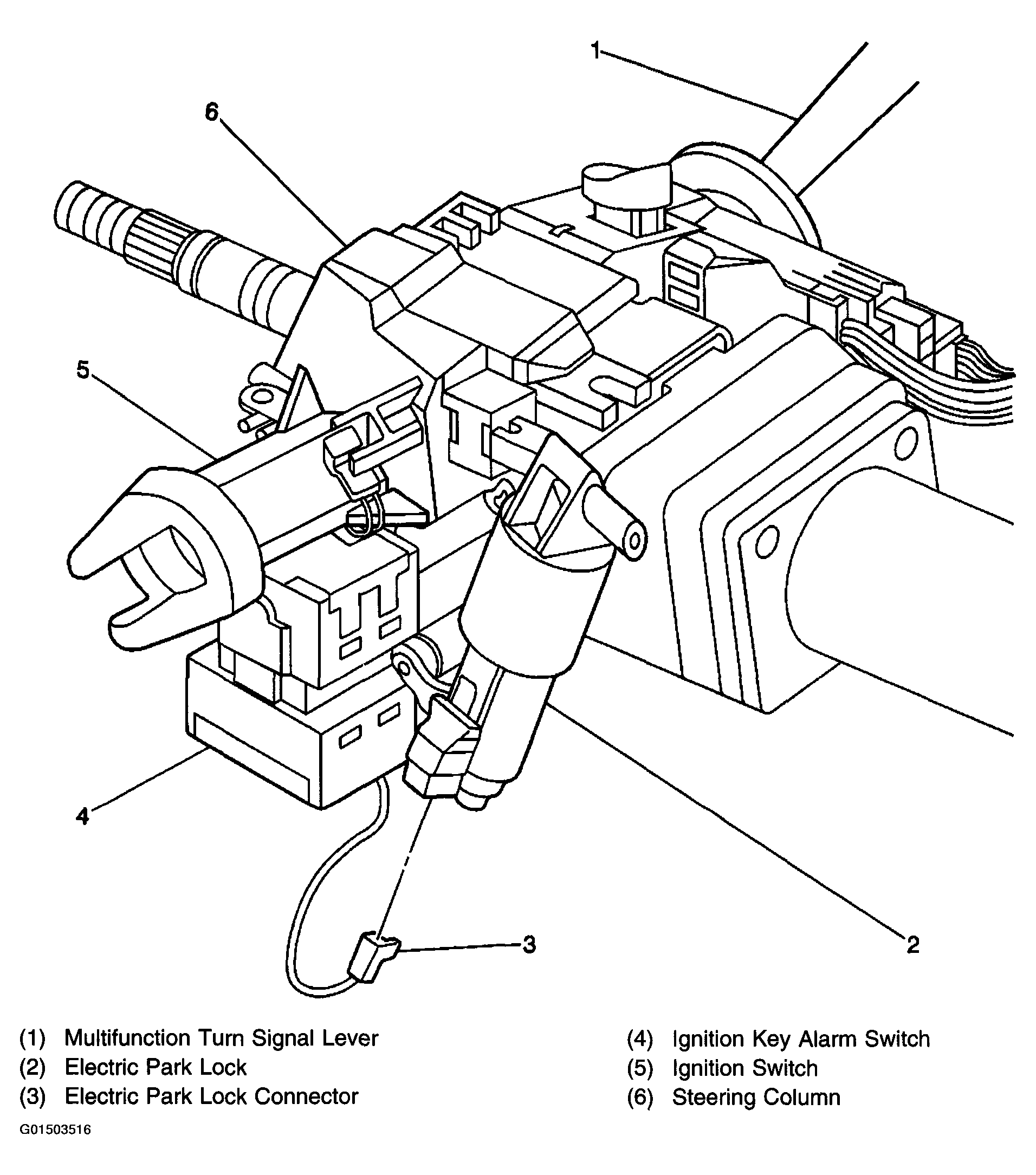

Fig 9: Steering Column Component View
G01503516Courtesy of GENERAL MOTORS CORP.
