OnStar Call Center Unable to Configure OnStar (R) System
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

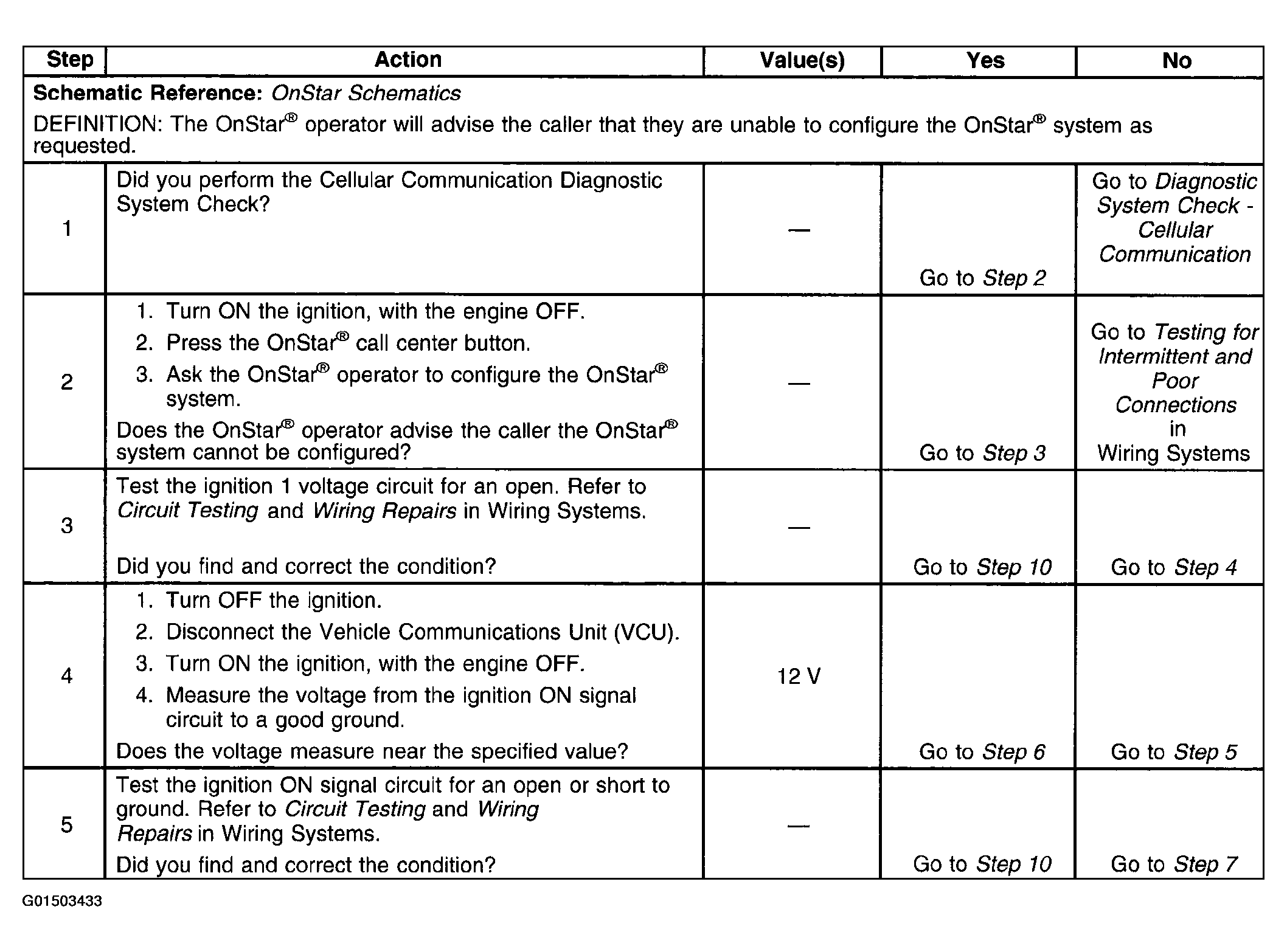

Fig 1: OnStar Call Center Unable To Configure OnStar (R) System Diagnostic Table (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

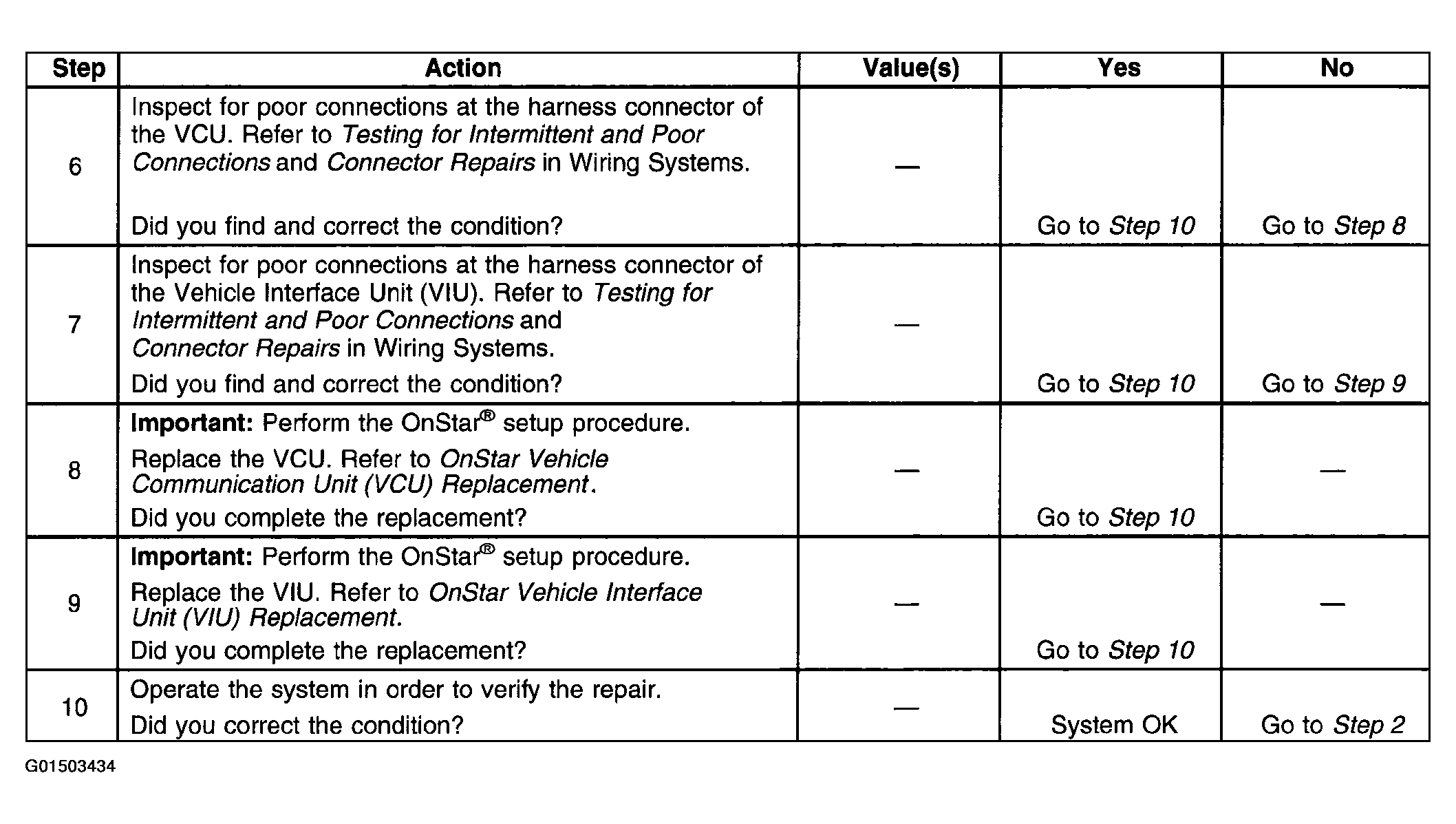

Fig 2: OnStar Call Center Unable To Configure OnStar (R) System Diagnostic Table (2 Of 2)
