Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in Doors.
  2. Remove the speaker wires from the plastic tab.

    Important:  Note the orientation of the front speaker to the retainers before removal.

  3. Using a small flat-bladed tool, remove the front speaker from the front door upper trim panel.

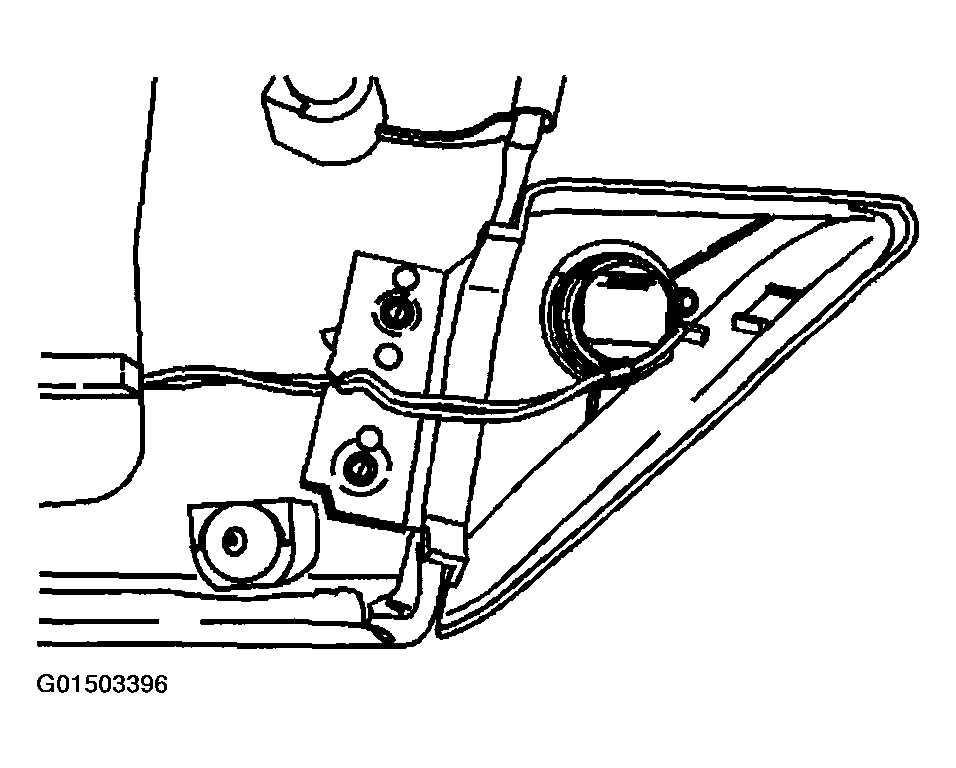

    Fig 1: Removing Front Speaker From Front Door Upper Trim Panel
    G01503396Courtesy of GENERAL MOTORS CORP.
