Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door inner trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in Doors.
  2. Remove the screws from the front door speaker.
  3. Disconnect the electrical connectors from the front door speaker.
  4. Remove the front door speaker from the front door.

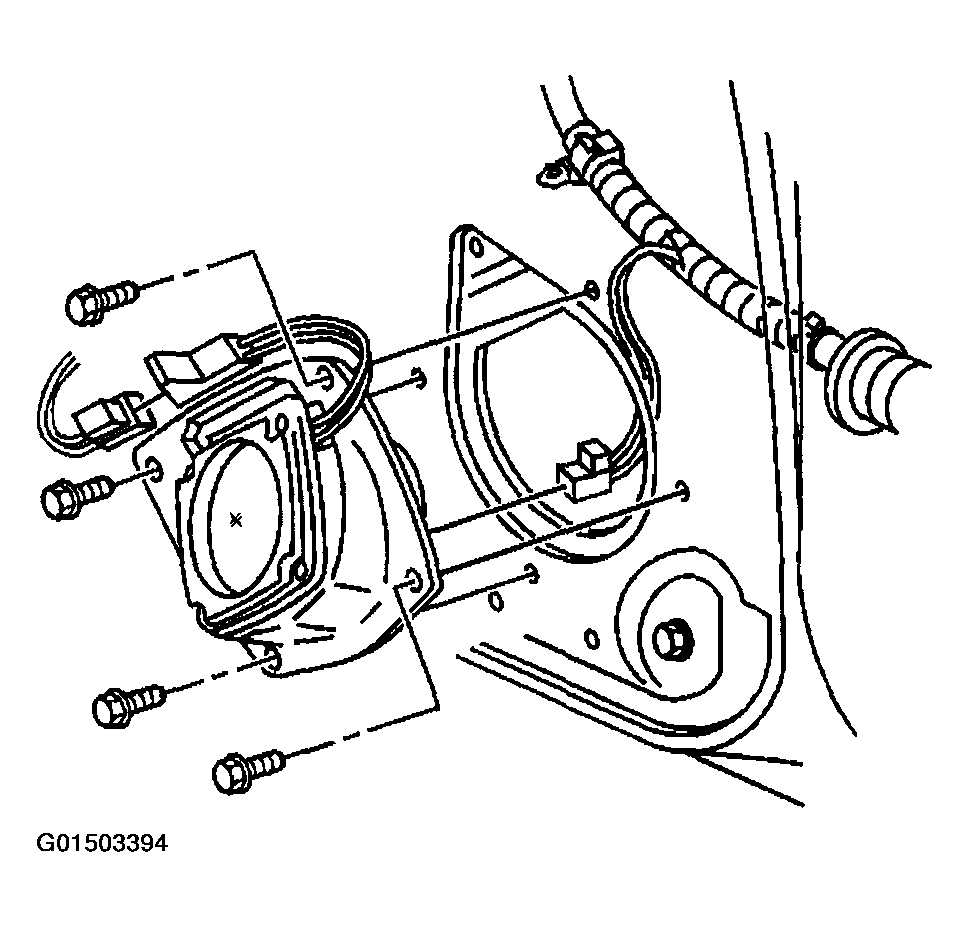

    Fig 1: Removing Front Door Speaker From Front Door
    G01503394Courtesy of GENERAL MOTORS CORP.
