Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  2. Remove the nuts from the rear speaker grille.
  3. Remove the rear speaker grille from the rear shelf trim panel.

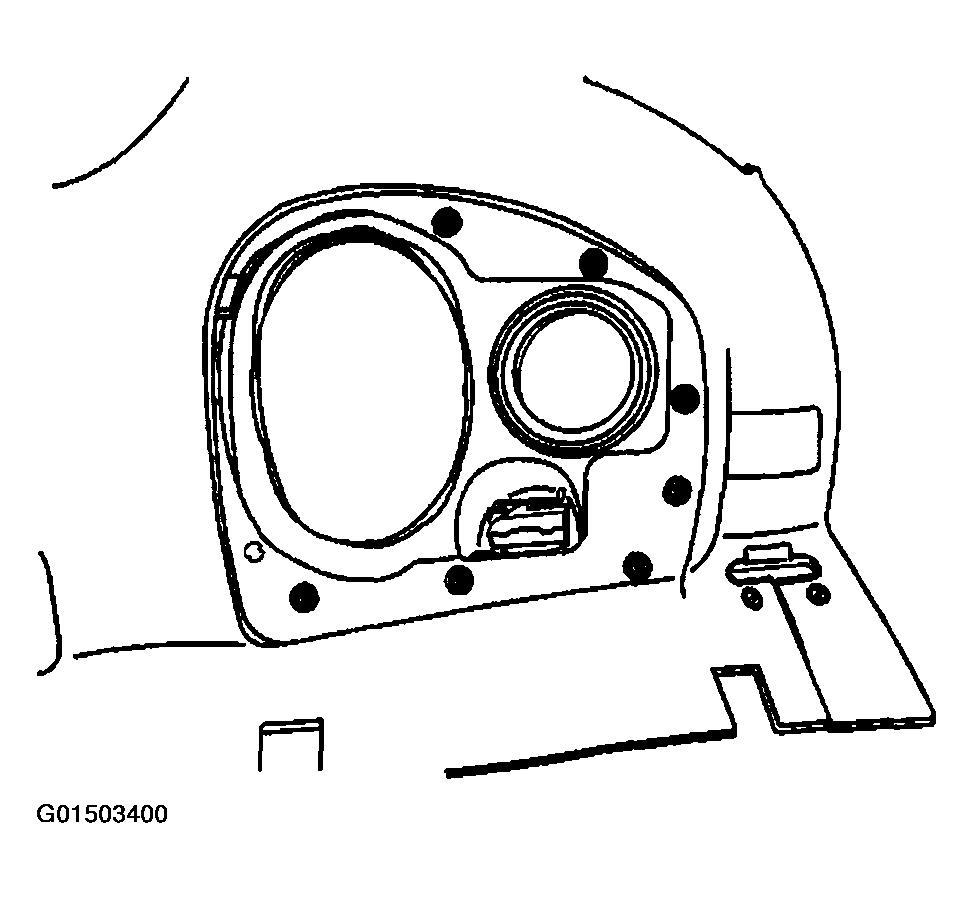

    Fig 1: Removing Rear Speaker Grille From Rear Shelf Trim Panel
    G01503400Courtesy of GENERAL MOTORS CORP.
