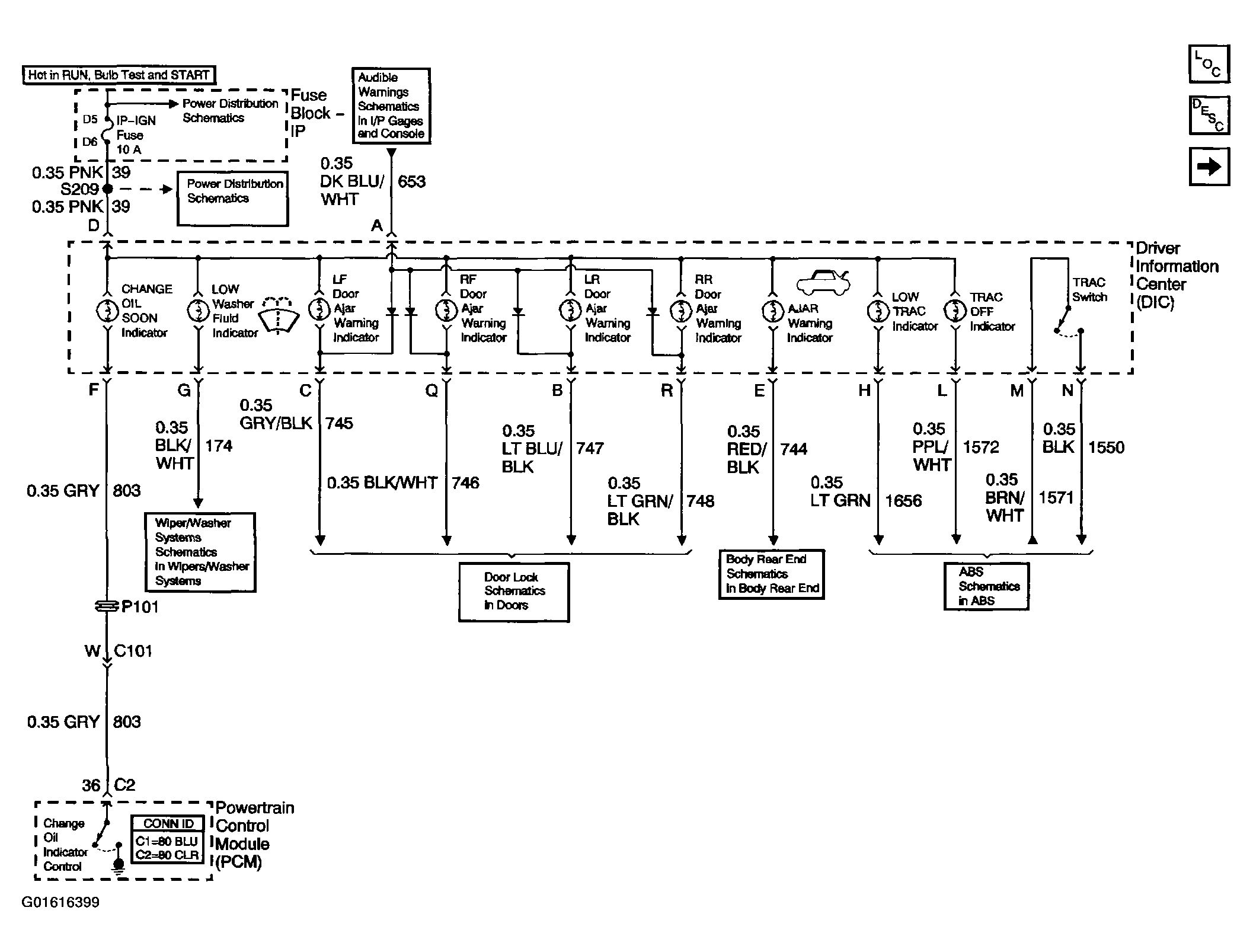

Fig 1: Driver Information System Schematics (Driver Information Center (DIC) (W/O U40))
Courtesy of GENERAL MOTORS CORP.

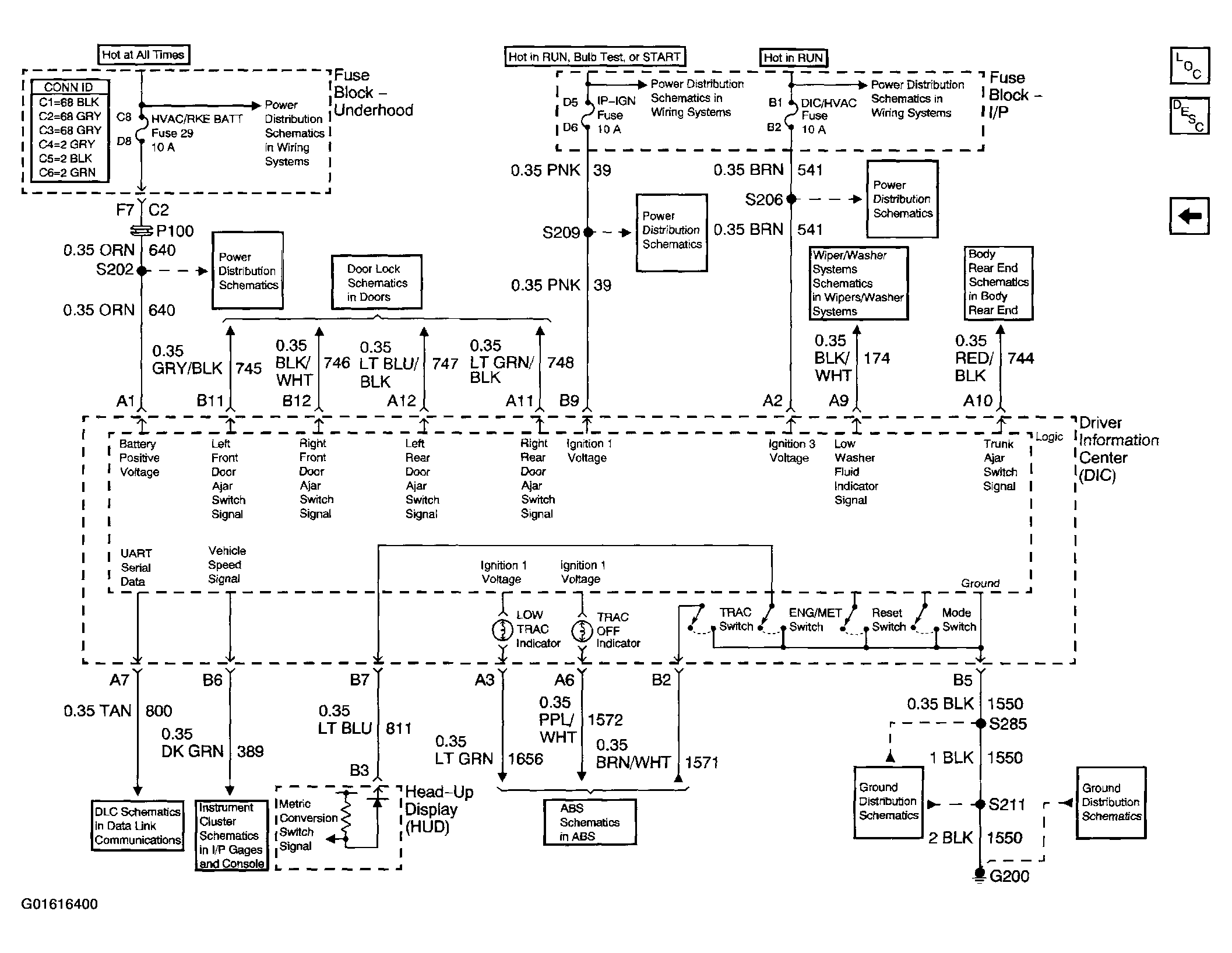

Fig 2: Driver Information System Schematics (Driver Information Center (DIC) (W/U40))
