Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the park brake.
  2. Position the transaxle selector in the low range.
  3. Raise the front floor console armrest.
  4. Remove the front floor console storage compartment.
  5. Remove the mat from the storage compartment.
  6. Open the console cup holder.

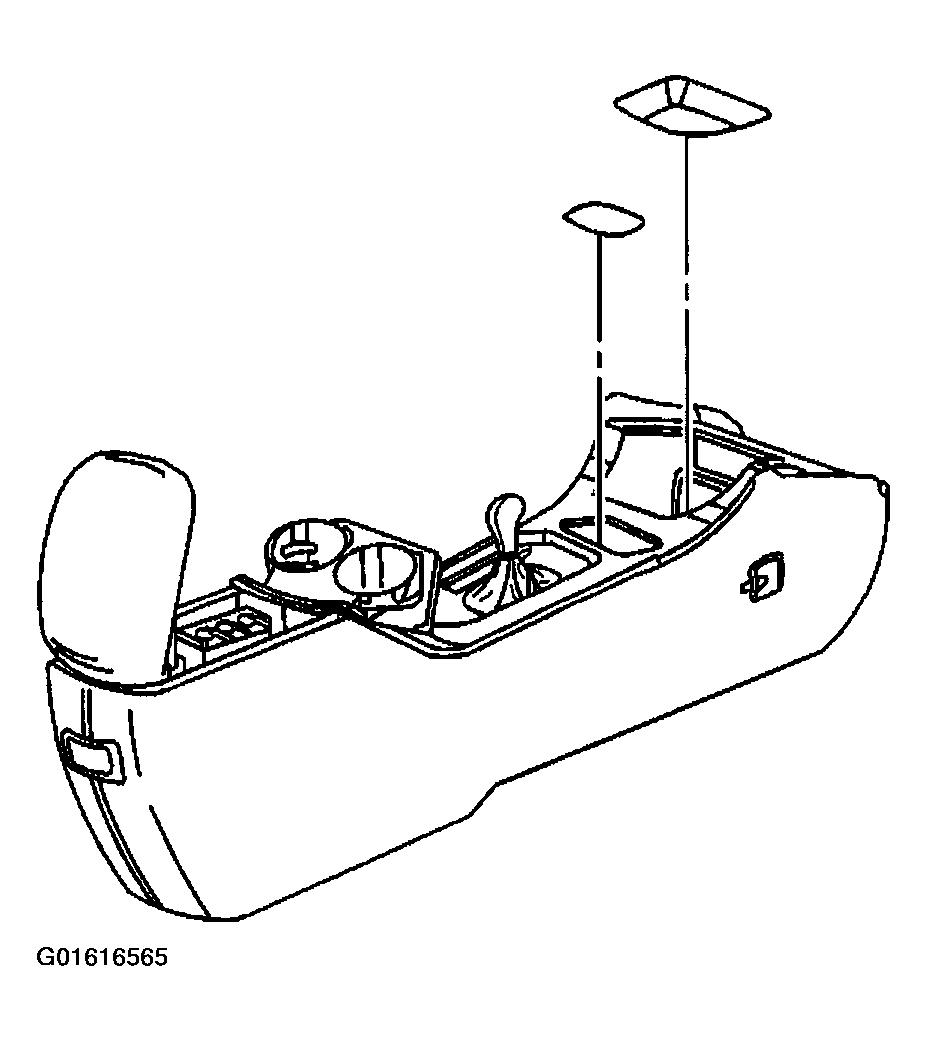

    Fig 1: Front Floor Console
    G01616565Courtesy of GENERAL MOTORS CORP.
  7. Remove the console trim plate, starting at the rear and pulling up, working forward in order to release the retainers.
  8. Remove the console trim plate from the front floor console.

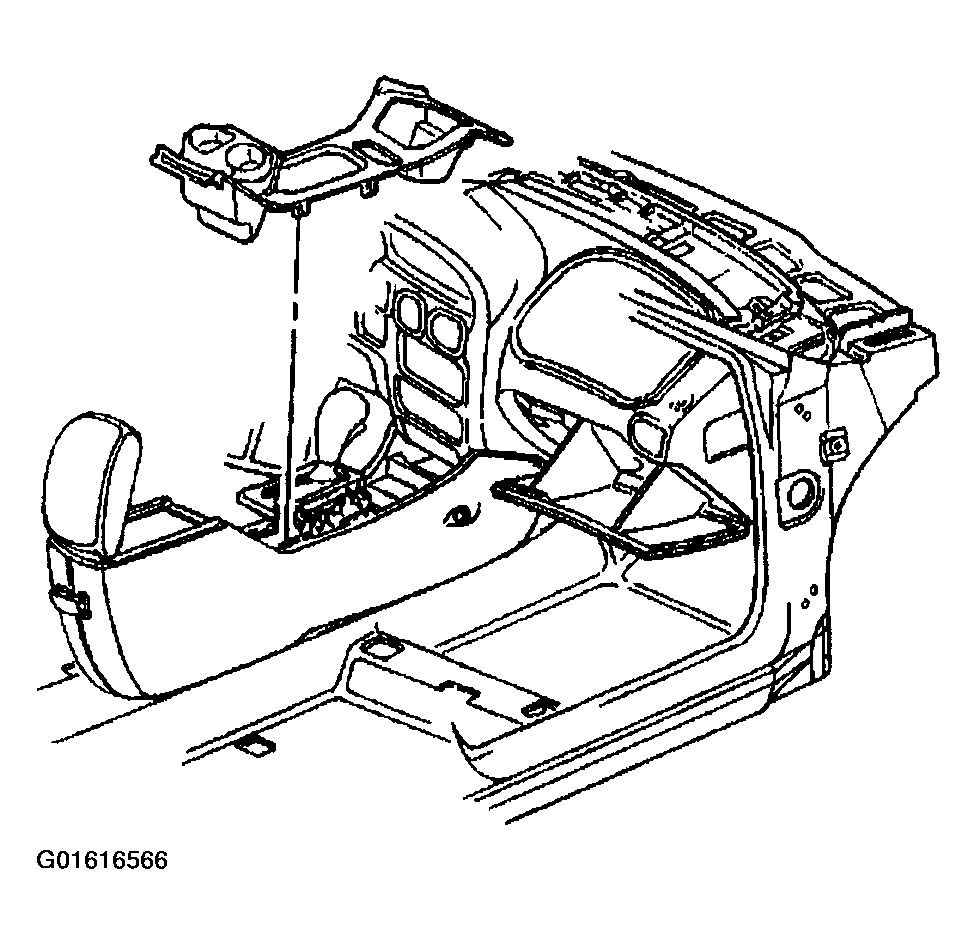

    Fig 2: Console Trim Plate
    G01616566Courtesy of GENERAL MOTORS CORP.
  9. Disconnect the electrical connector from the driver's seat heater switch, if equipped.

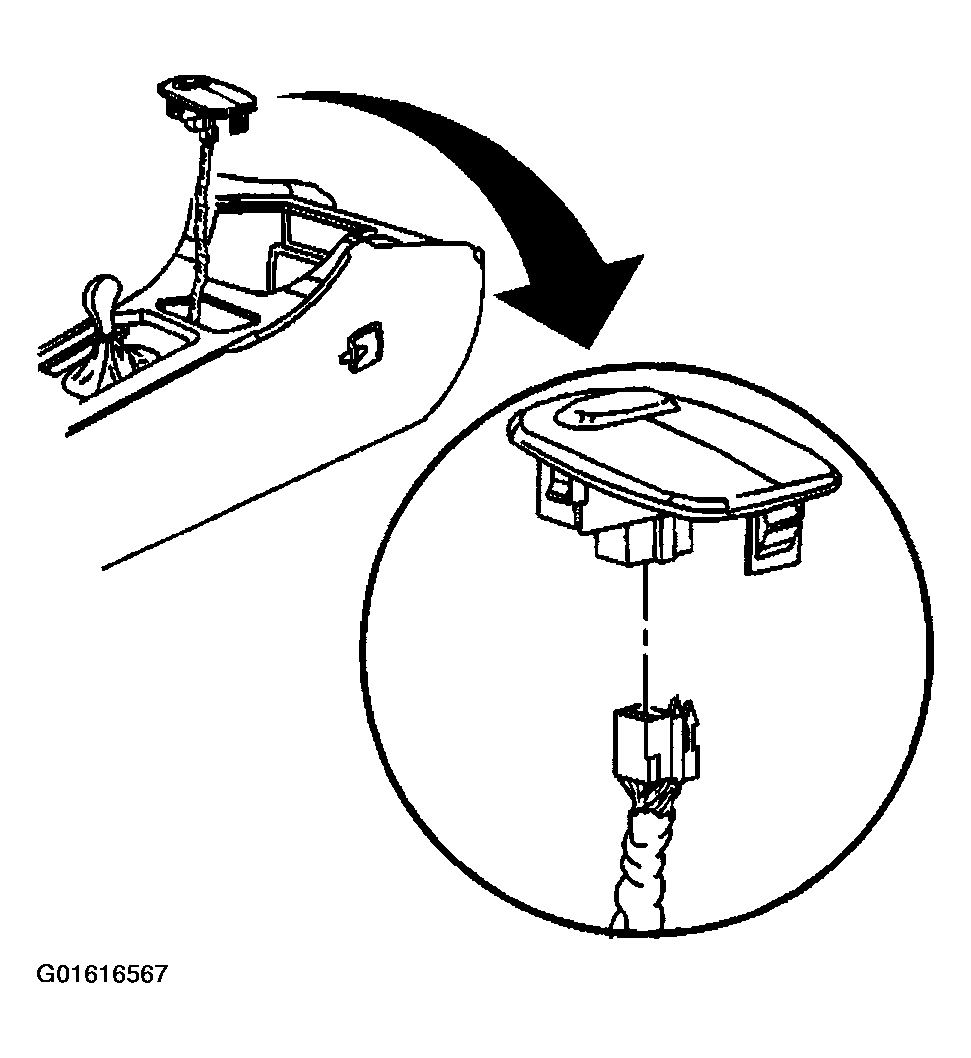

    Fig 3: Driver's Seat Heater Switch & Electrical Connector
    G01616567Courtesy of GENERAL MOTORS CORP.
