Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the driver's seat heater switch, if equipped.

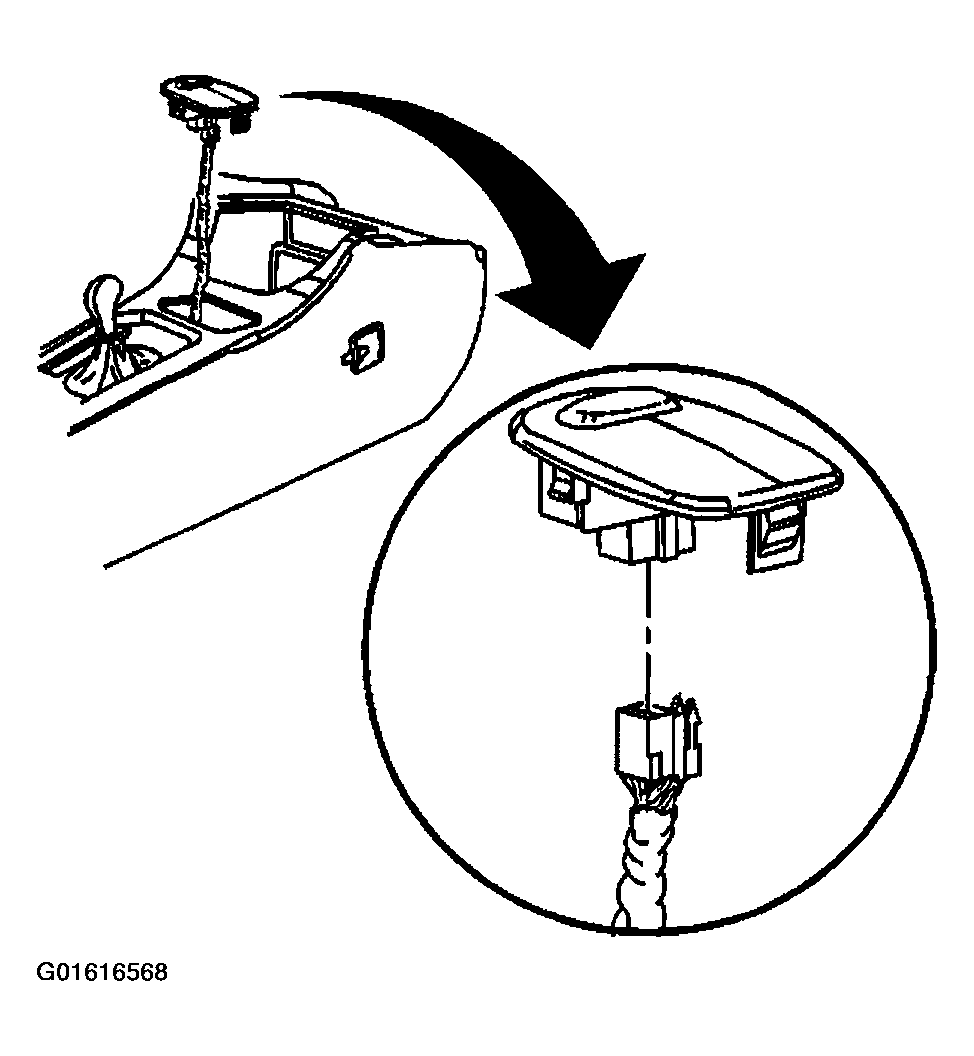

    Fig 1: Driver's Seat Heater Switch & Electrical Connector
    G01616568Courtesy of GENERAL MOTORS CORP.
  2. Install the trim plate to the front floor console by pressing down firmly until fully seated.
  3. Reposition the transaxle selector into PARK.
  4. Close the console cup holder.
  5. Install the console storage compartment.
  6. Lower the console armrest.

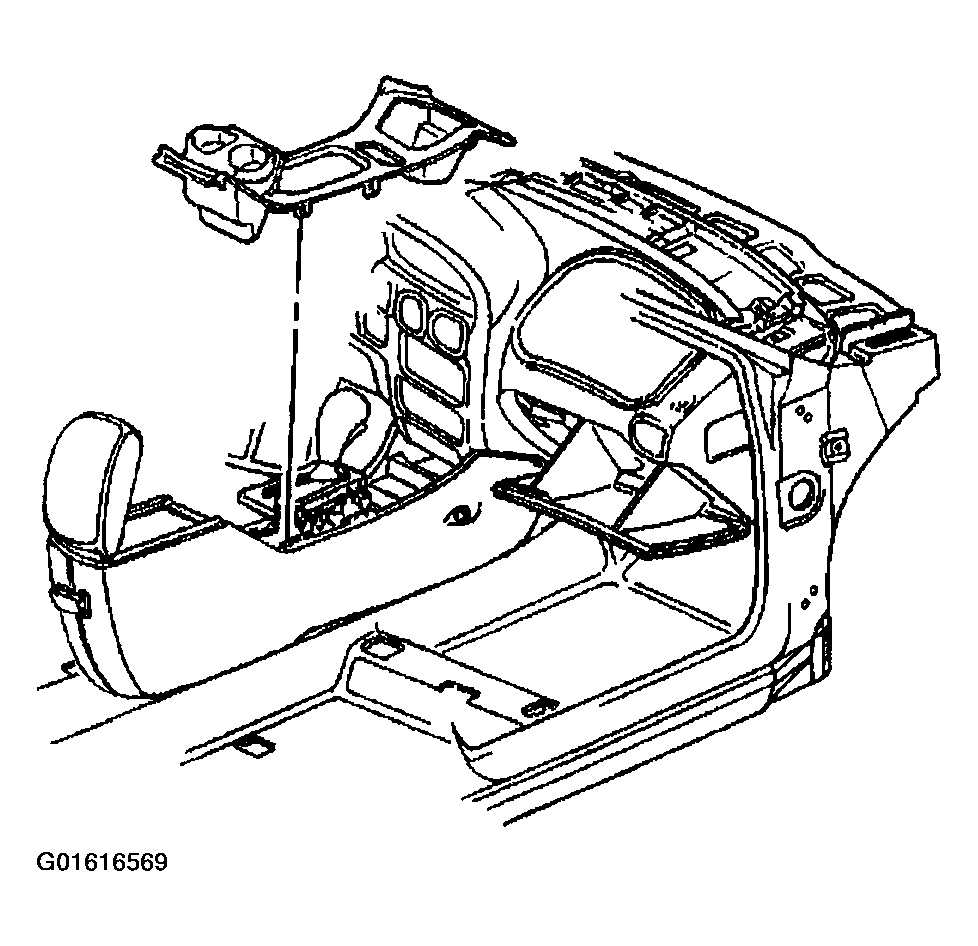

    Fig 2: Console Trim Plate
    G01616569Courtesy of GENERAL MOTORS CORP.
  7. Install the console storage compartment mat to the console storage compartment.
  8. Release the park brake.

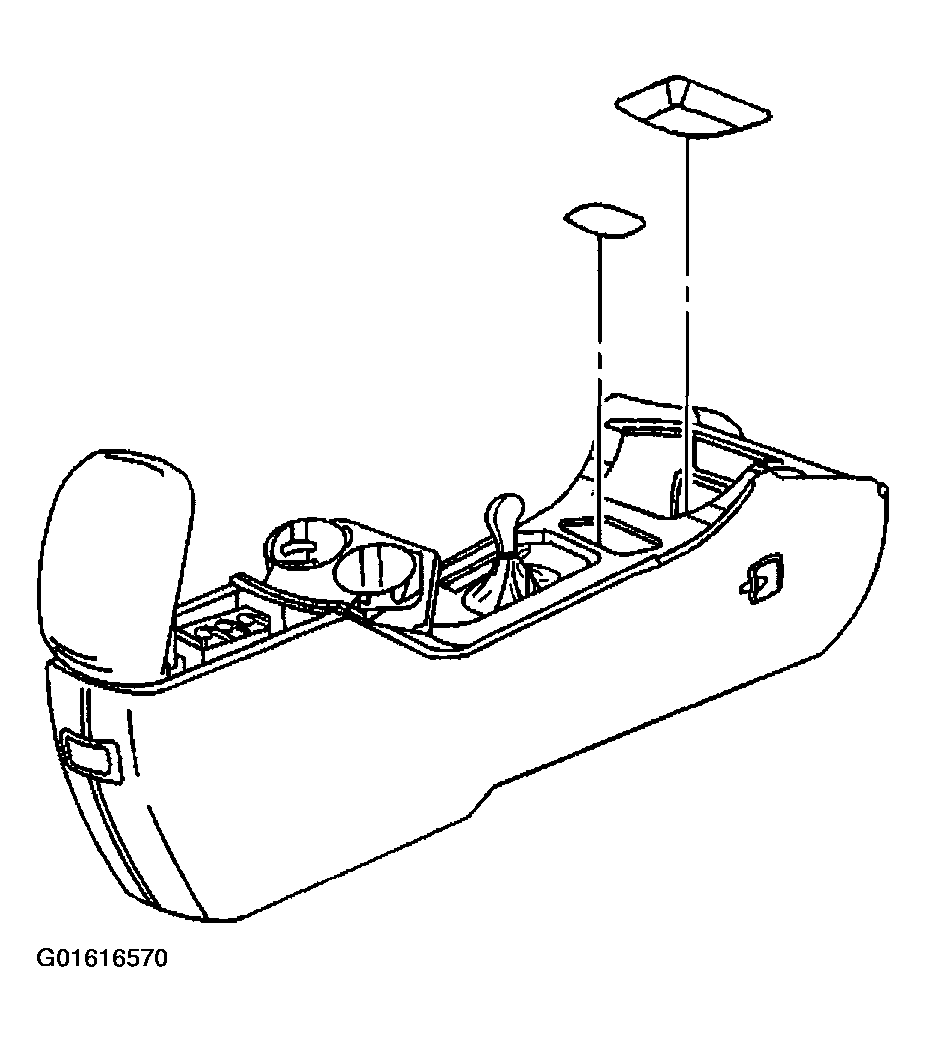

    Fig 3: Front Floor Console
    G01616570Courtesy of GENERAL MOTORS CORP.
