Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the IP trim pad to the vehicle.
  2. Reposition the IP wiring harness.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the IP upper trim pad bolts.

    Tighten

    Tighten the bolts to 5 N.m (44 lb in).

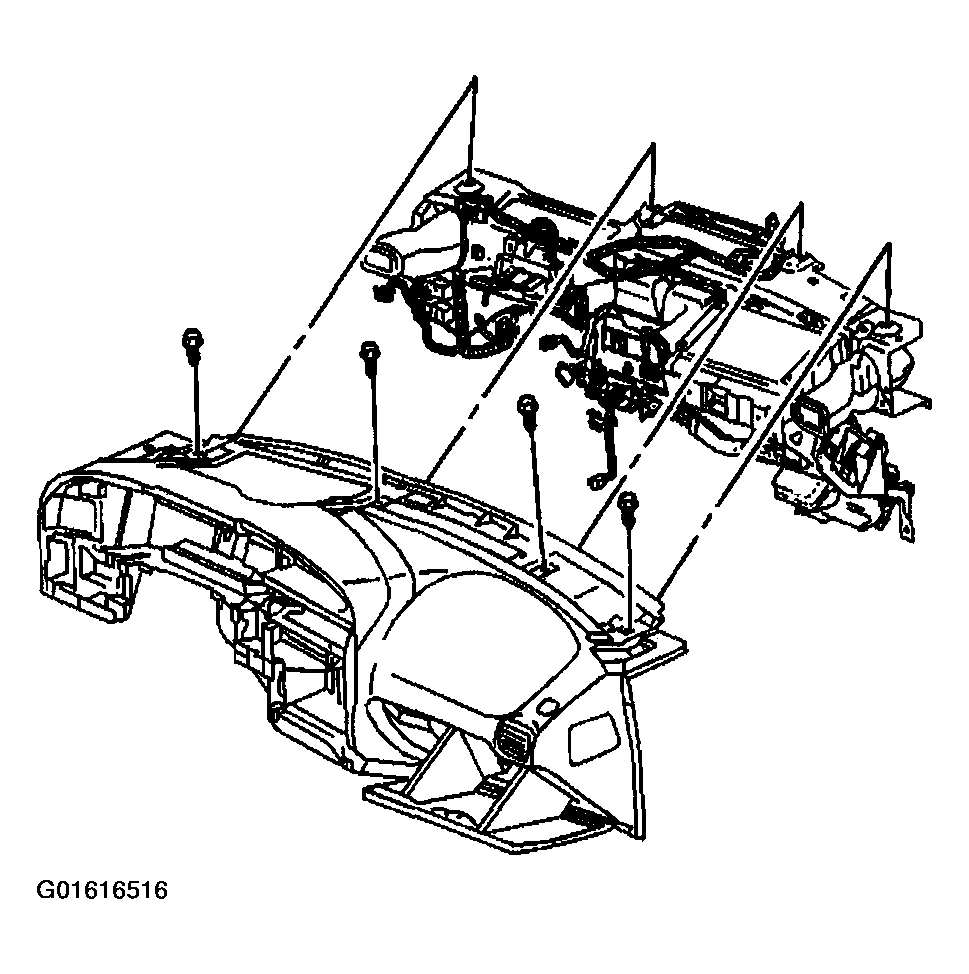

    Fig 1: I/P Trim Pad
    G01616516Courtesy of GENERAL MOTORS CORP.
  4. Install the IP cluster pocket bolt (1).

    Tighten

    Tighten the bolt to 5 N.m (44 lb in).

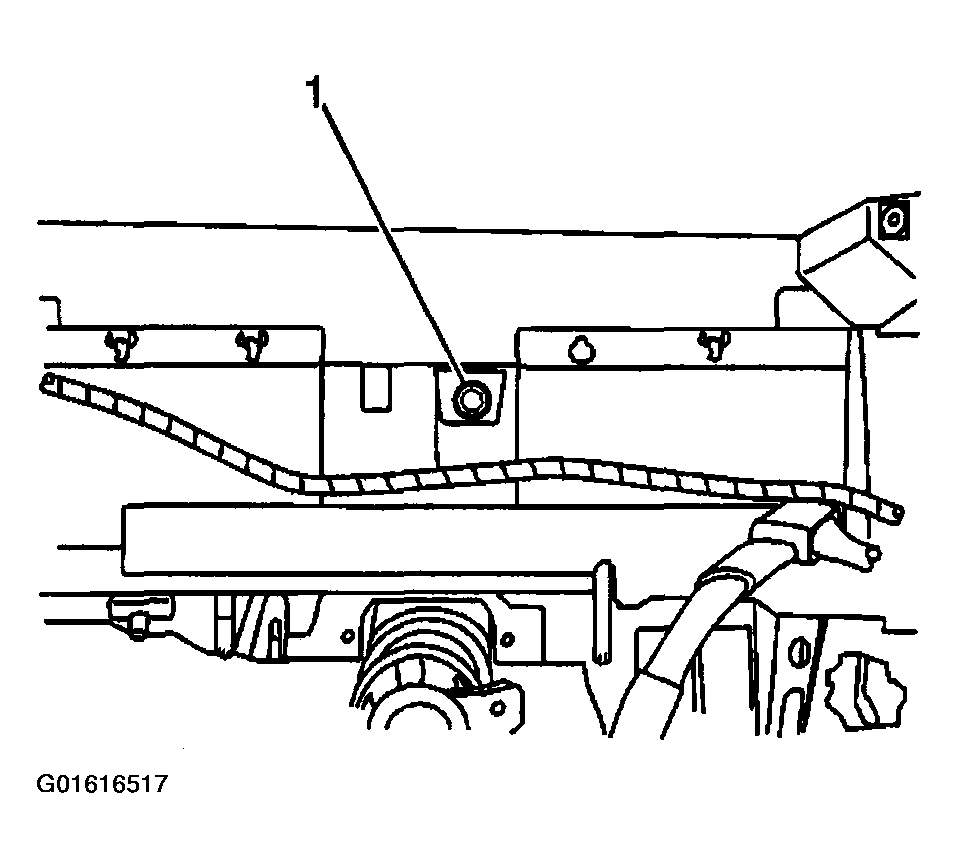

    Fig 2: I/P Cluster Pocket Bolt
    G01616517Courtesy of GENERAL MOTORS CORP.
  5. Install the IP lower bolts (1).

    Tighten

    Tighten the IP lower bolts to 2 N.m (18 lb in).

  6. Install the IP compartment lamp switch. Refer to IP COMPARTMENT LAMP SWITCH REPLACEMENT .
  7. Install the IP compartment lamp. Refer to IP COMPARTMENT LAMP BULB REPLACEMENT .
  8. Install the IP compartment. Refer to COMPARTMENT REPLACEMENT - IP .
  9. Install the driver information center. Refer to Driver Information Center Module Replacement .
  10. Install the HUD module, if equipped. Refer to Head Up Display Module Replacement .

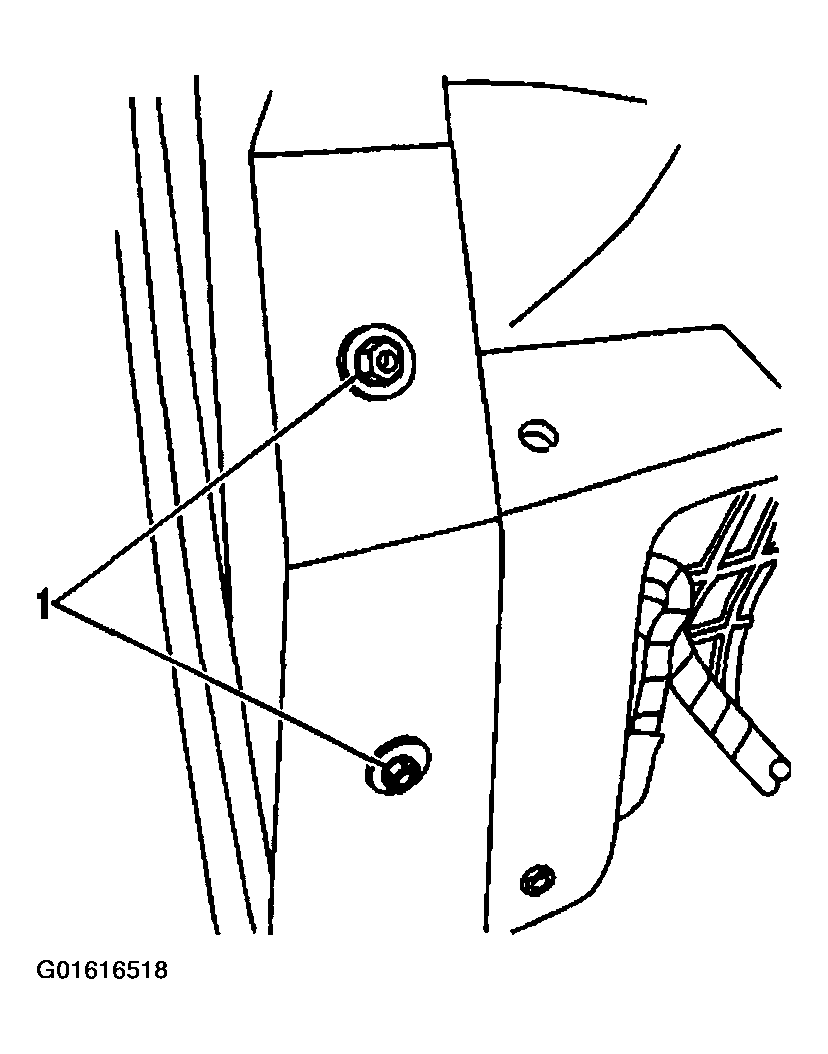

    Fig 3: I/P Lower Bolts
    G01616518Courtesy of GENERAL MOTORS CORP.
  11. Install the HUD dimmer switch, if equipped. Refer to Head Up Display Switch Replacement .
  12. Install the headlamp switch. Refer to HEADLAMP SWITCH REPLACEMENT .
  13. Install the IP cluster. Refer to Instrument Panel Cluster (IPC) Replacement .
  14. Install the HVAC control module. Refer to HVAC MODULE ASSEMBLY .
  15. Install the radio. Refer to RADIO REPLACEMENT .
  16. Install the IP cluster trim plate. Refer to TRIM PANEL REPLACEMENT - IP Cluster .
  17. Install the steering column. Refer to STEERING COLUMN REPLACEMENT .
  18. Install the knee bolster. Refer to Knee Bolster Replacement .
  19. Install the steering column filler. Refer to Steering Column Filler Replacement .
  20. Install the front floor console, if equipped. Refer to CONSOLE REPLACEMENT - Front Floor .
  21. Install the IP upper trim panel. Refer to TRIM PANEL REPLACEMENT - Instrument Panel (IP) Upper .
  22. Install the side upper garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR .
  23. Install the carpet retainers. Refer to CARPET RETAINER REPLACEMENT - FRONT .
  24. Install the IP insulators. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - Right  and CLOSEOUT/INSULATOR PANEL REPLACEMENT - Left .
  25. Enable the SIR system. Refer to ACTIVATING SYSTEM .
  26. Connect the battery ground negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
