Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel (IP) compartment door.
  2. Remove the IP compartment latch screws.
  3. Use a flat-bladed tool in order to remove the retainer clip from the IP compartment.

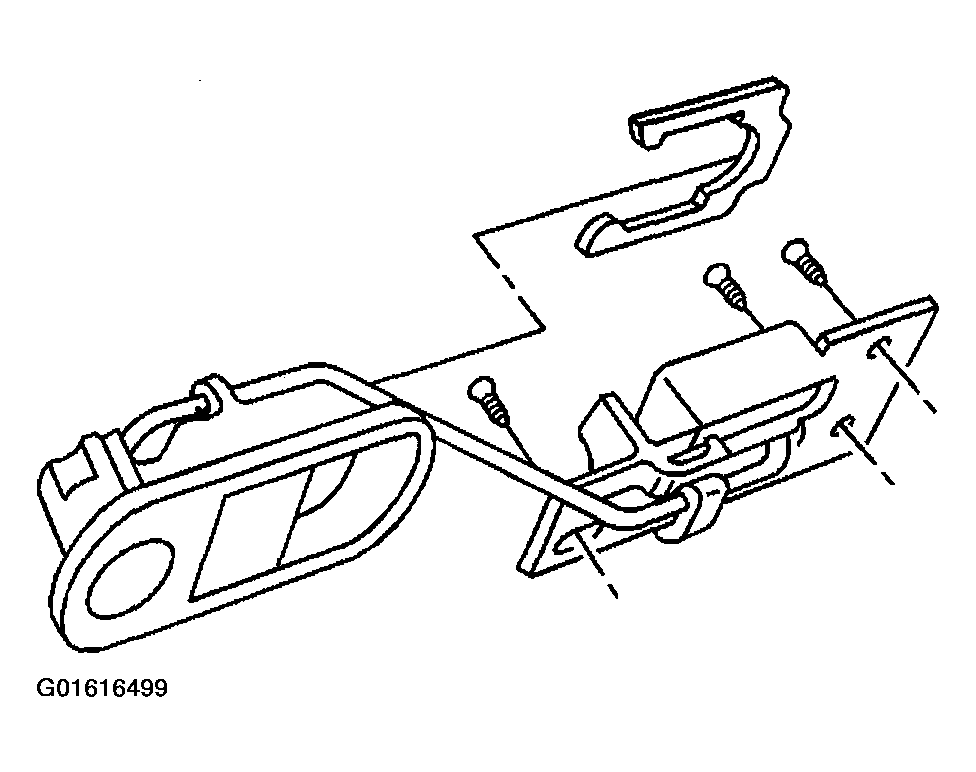

    Fig 1: Latch Assembly
    G01616499Courtesy of GENERAL MOTORS CORP.
  4. Remove the IP compartment latch from the IP compartment door.

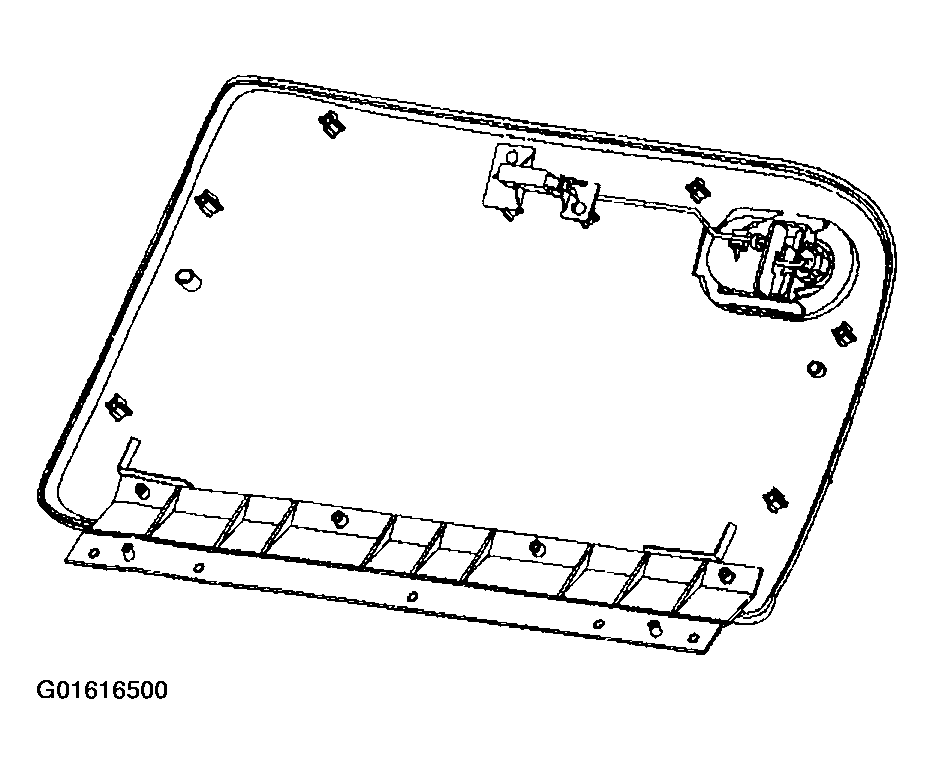

    Fig 2: I/P Compartment Door & Latch
    G01616500Courtesy of GENERAL MOTORS CORP.
