Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Align the IP compartment latch with the IP compartment door.

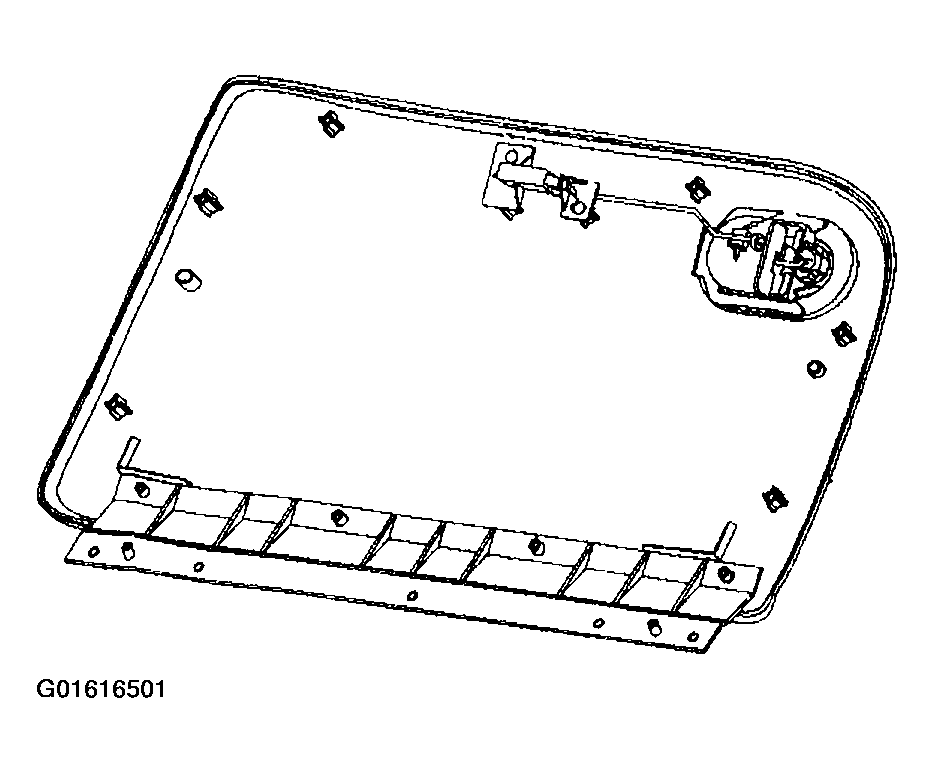

Fig 1: I/P Compartment Door & Latch
Courtesy of GENERAL MOTORS CORP.
Slide the retainer clip onto the IP compartment latch.
Route the lock rod into the IP latch.
NOTE: Refer to FASTENER NOTICE .
Install the IP compartment latch screws.
Tighten

Tighten the screws to 1 N.m (9 lb in).
Close the IP compartment door.

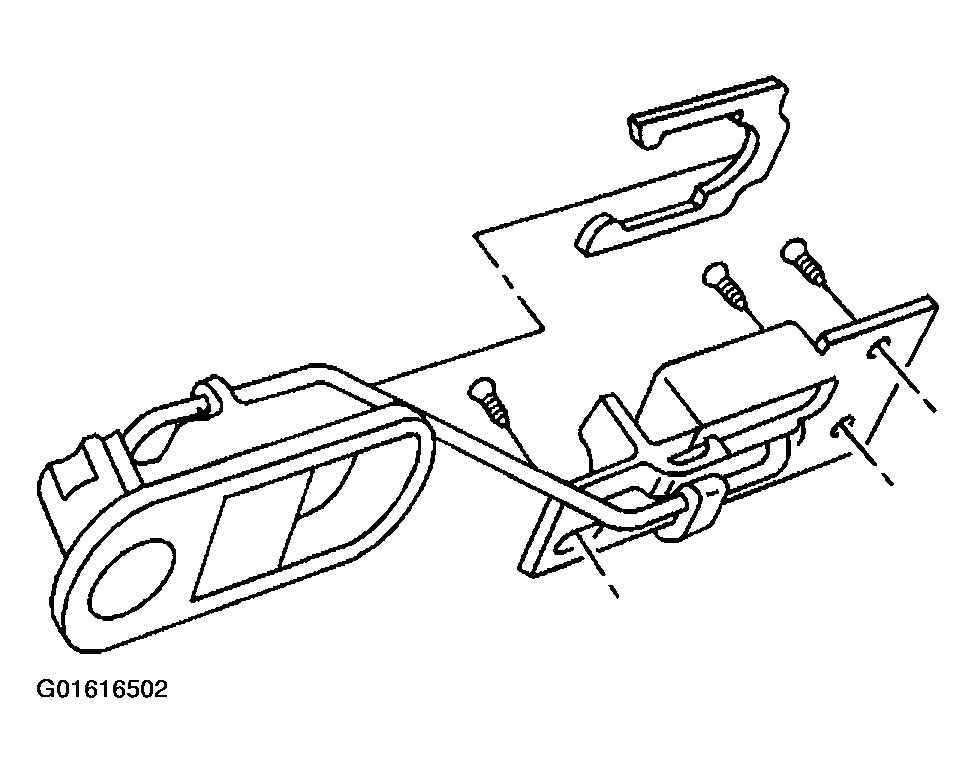

Fig 2: Latch Assembly
Courtesy of GENERAL MOTORS CORP.
