Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the knee bolster bracket to the IP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the knee bolster bracket bolts at the steering column support.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

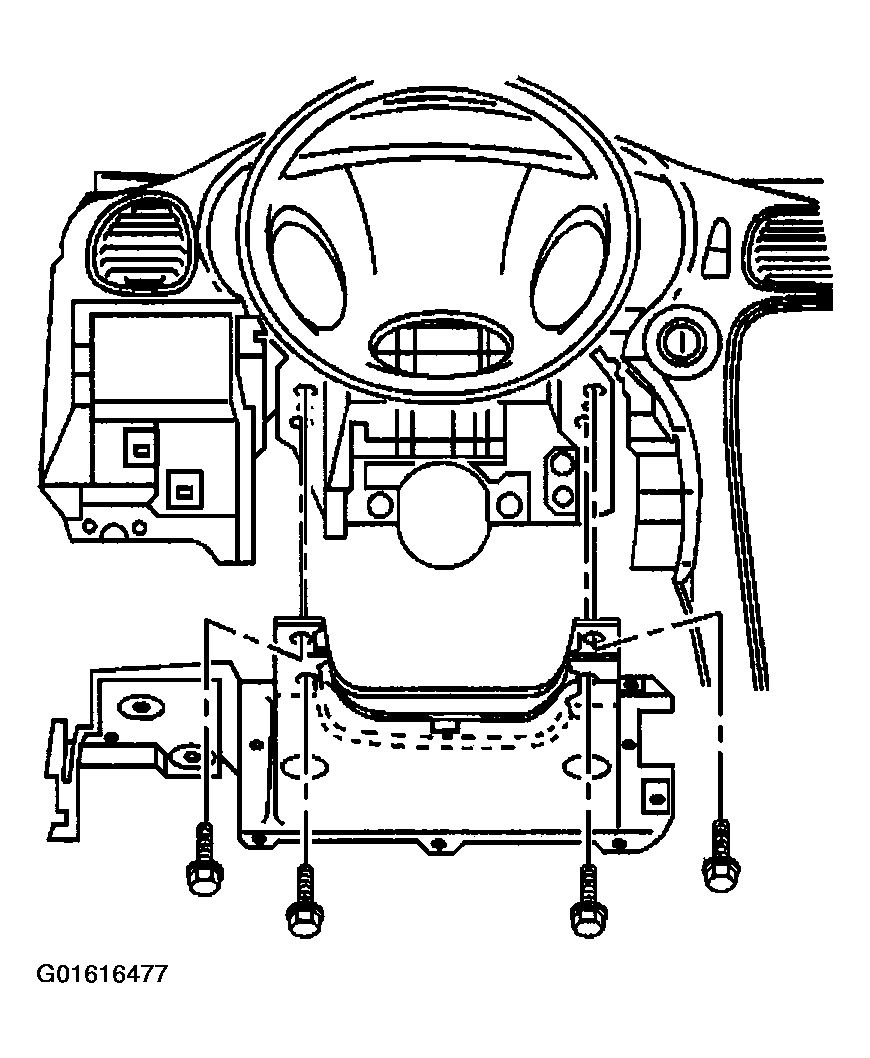

    Fig 1: Knee Bolster
    G01616477Courtesy of GENERAL MOTORS CORP.
  3. Install the knee bolster bracket bolts at the IP.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  4. Install the steering column filler. Refer to Steering Column Filler Replacement .
  5. Install the left IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - Left .

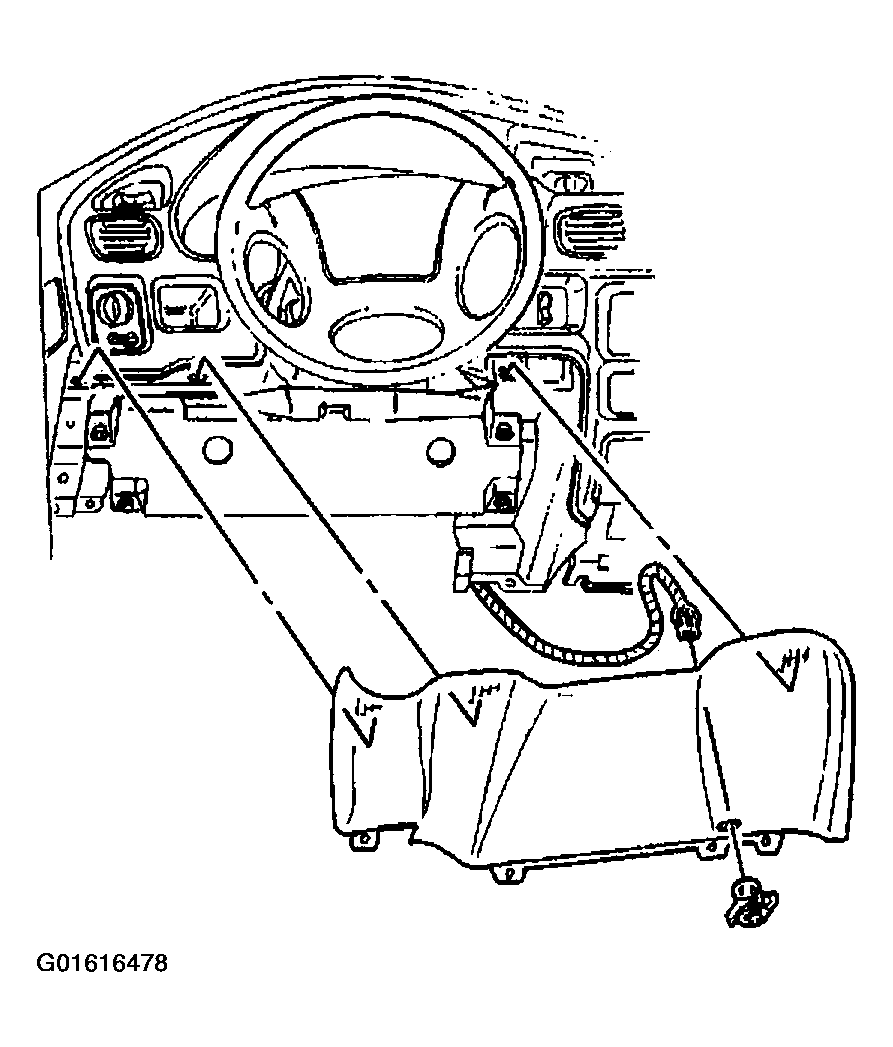

    Fig 2: Steering Column Filler
    G01616478Courtesy of GENERAL MOTORS CORP.
