Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the IPC:
    • The black electrical connector (1)
    • The natural electrical connector (2)

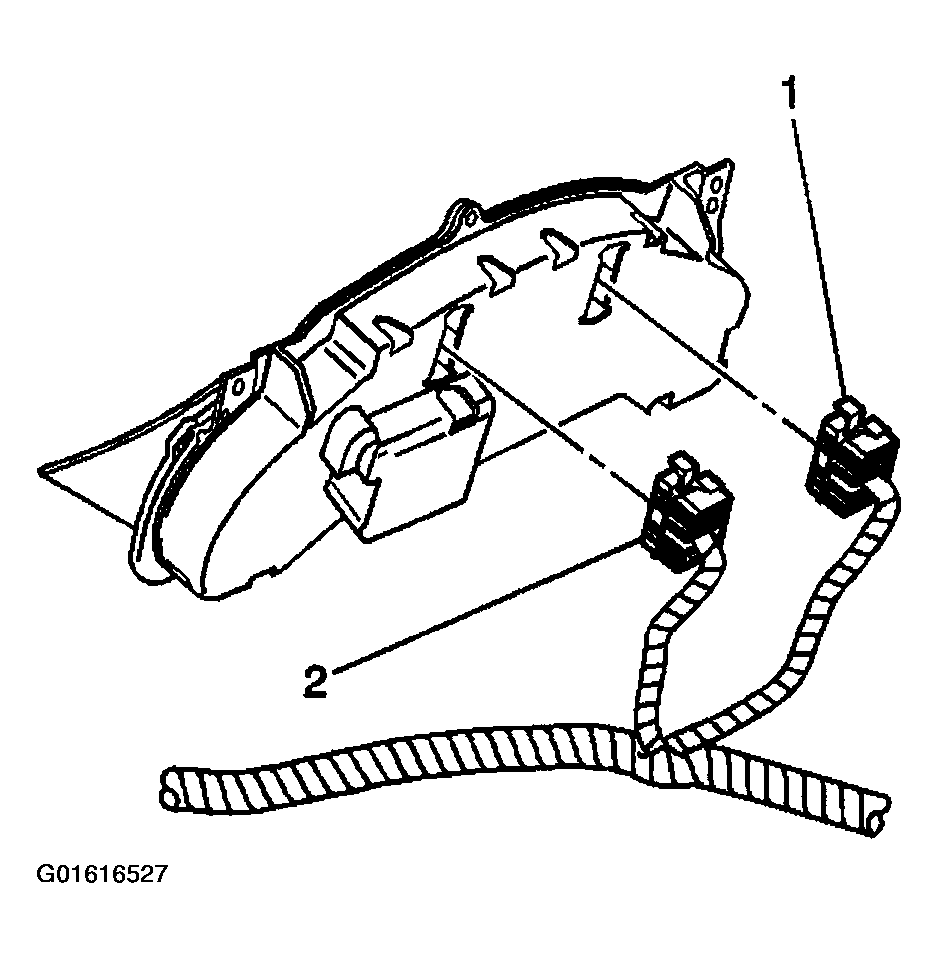

    Fig 1: IPC Electrical Connectors
    G01616527Courtesy of GENERAL MOTORS CORP.
  2. Position the locating pins to the locating pin receivers in the IP.
  3. Install the IPC by rotating the top of the IPC inward.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the IPC screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  5. Install the IPC trim plate. Refer to TRIM PANEL REPLACEMENT - IP Cluster .

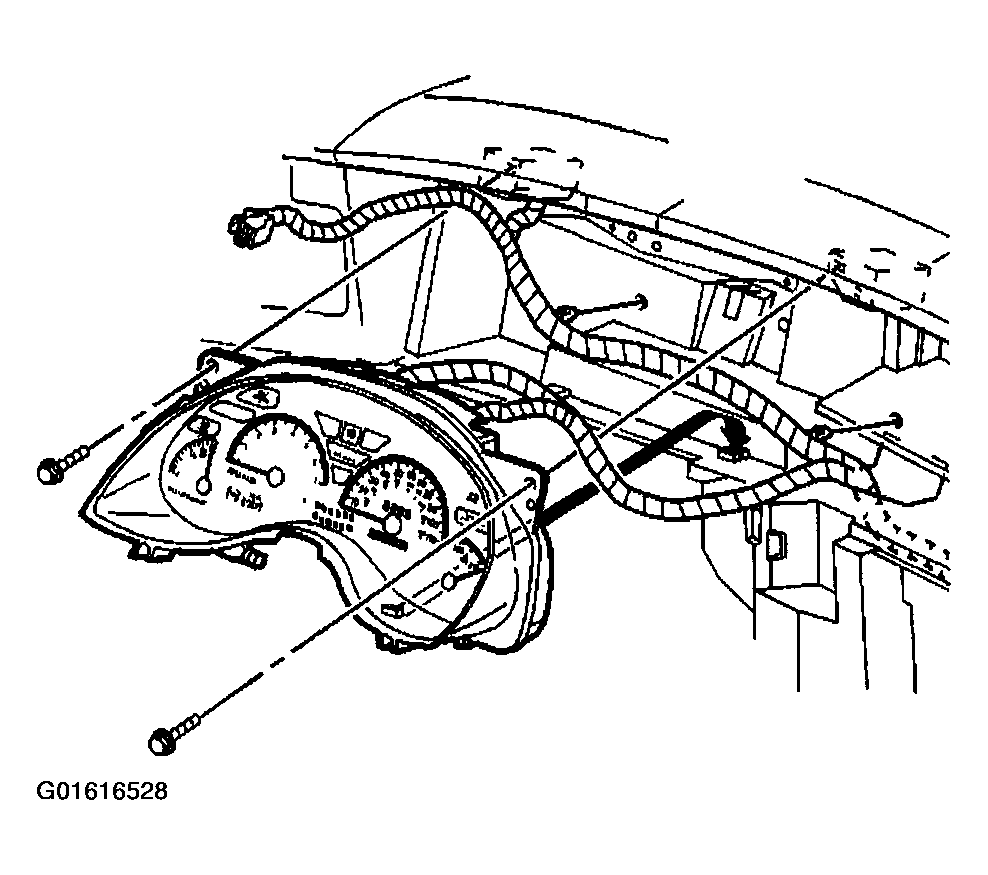

    Fig 2: IPC
    G01616528Courtesy of GENERAL MOTORS CORP.
