Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lens to the IPC.

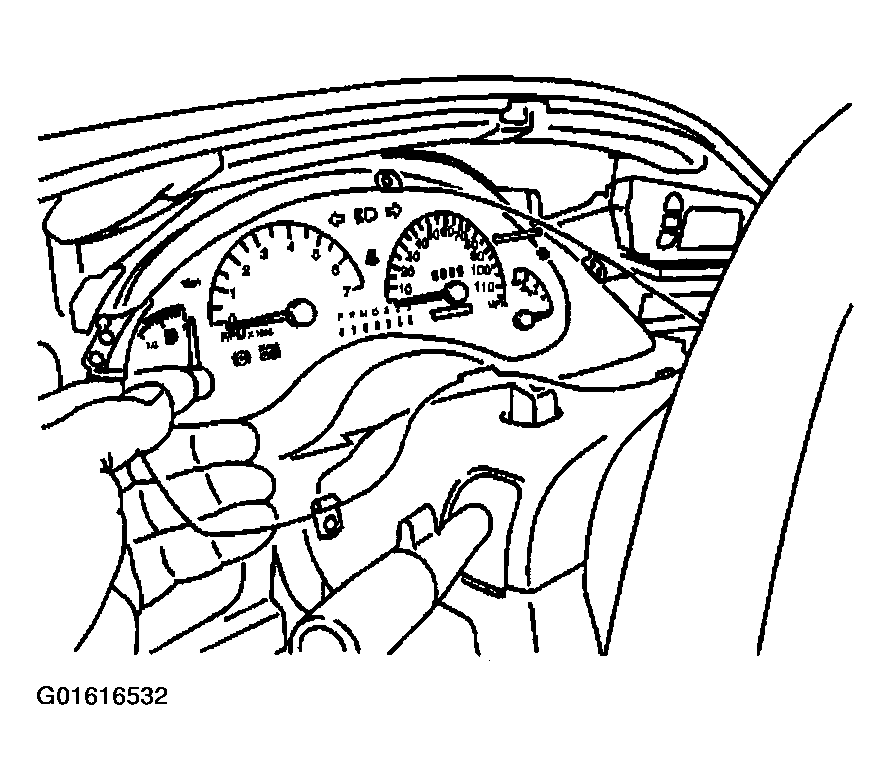

    Fig 1: IPC Lens
    G01616532Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the IPC lens screws.

    Tighten

    Tighten the screws to 1 N.m (9 lb in).

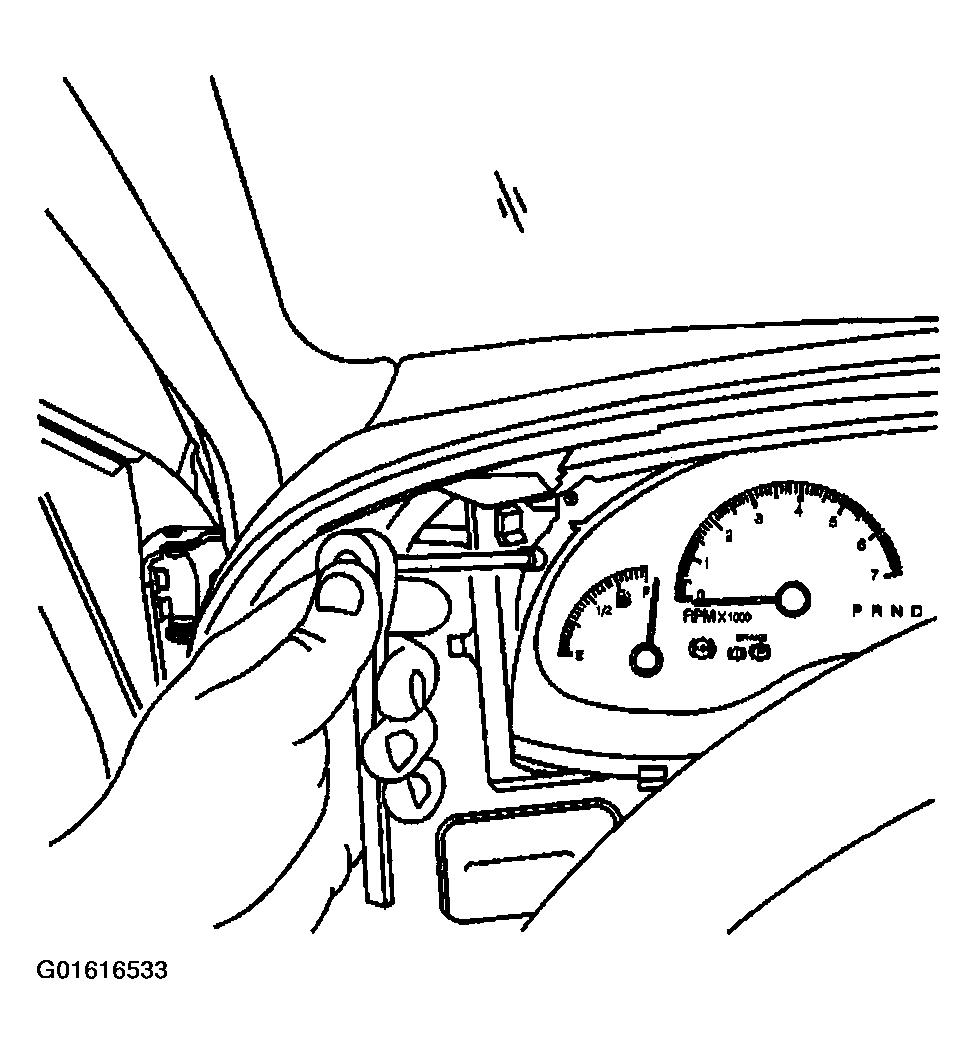

    Fig 2: Installing IPC Lens Screws
    G01616533Courtesy of GENERAL MOTORS CORP.
  3. Remove the protective cover from the instrument cluster lens, if new.

    Push the rubber knob onto the trip meter reset stem.

  4. Install the IPC trim plate. Refer to TRIM PANEL REPLACEMENT - IP Cluster .

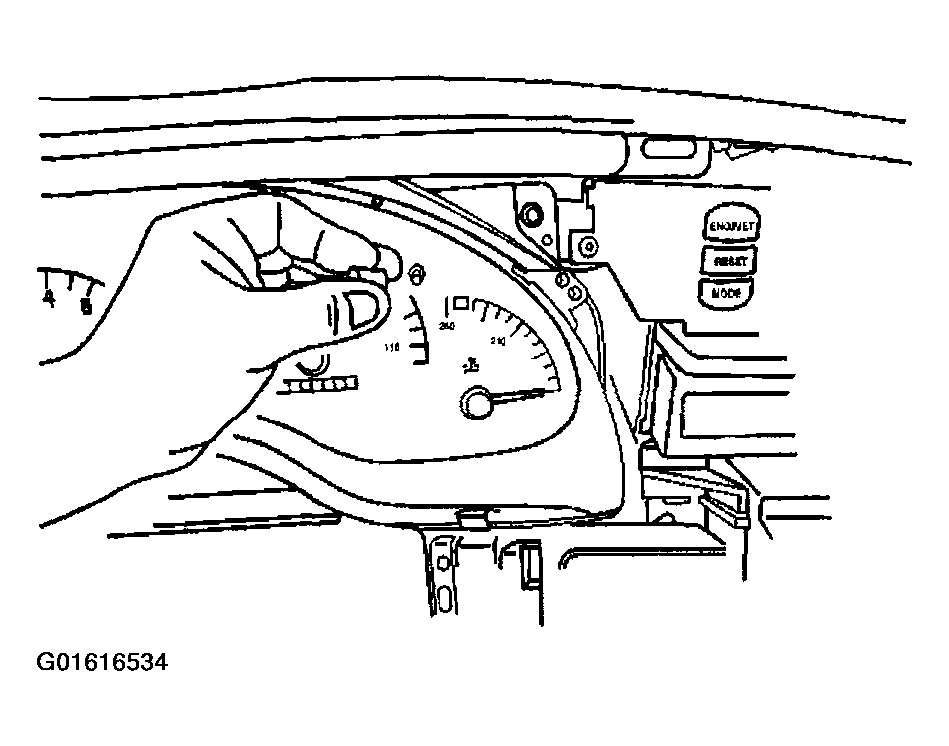

    Fig 3: Installing Trip Meter Reset Stem Rubber Knob
    G01616534Courtesy of GENERAL MOTORS CORP.
