Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IPC) cluster. Refer to Instrument Panel Cluster (IPC) Replacement .
  2. Rotate the inoperative lamp counterclockwise.

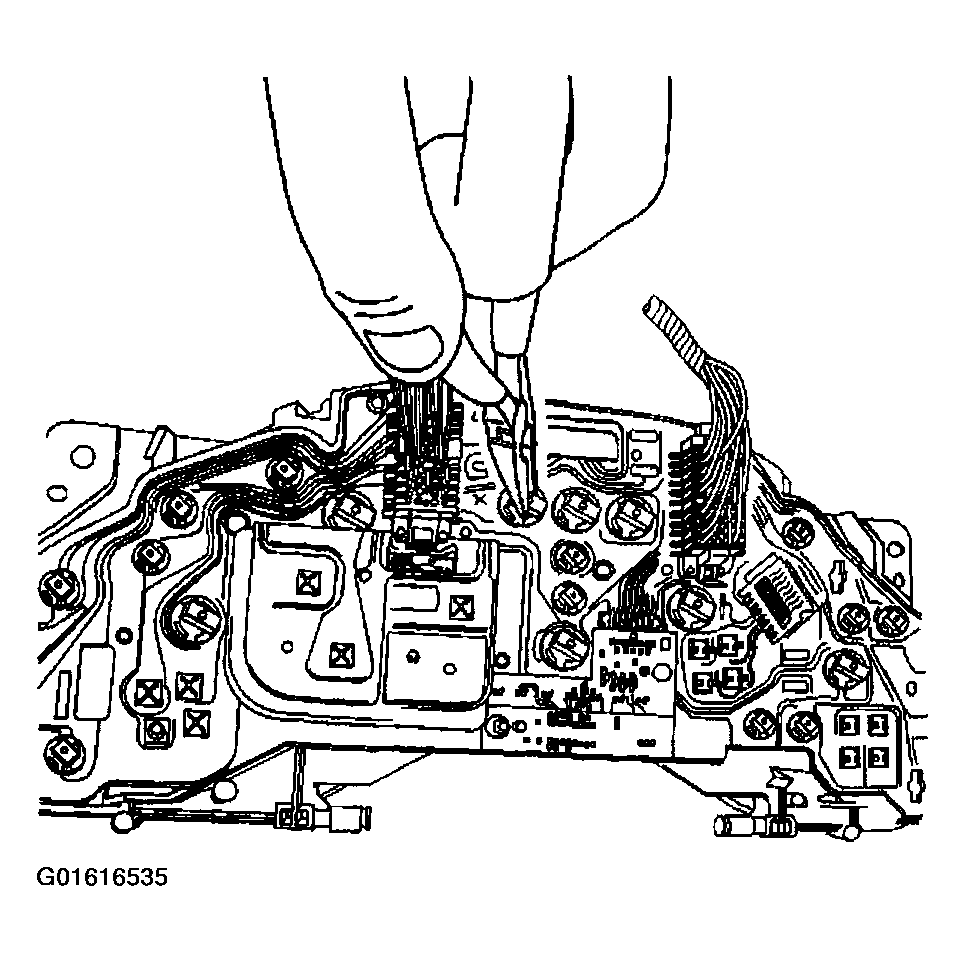

    Fig 1: Rotating Lamp Counterclockwise
    G01616535Courtesy of GENERAL MOTORS CORP.
  3. Remove the lamp from the cluster.

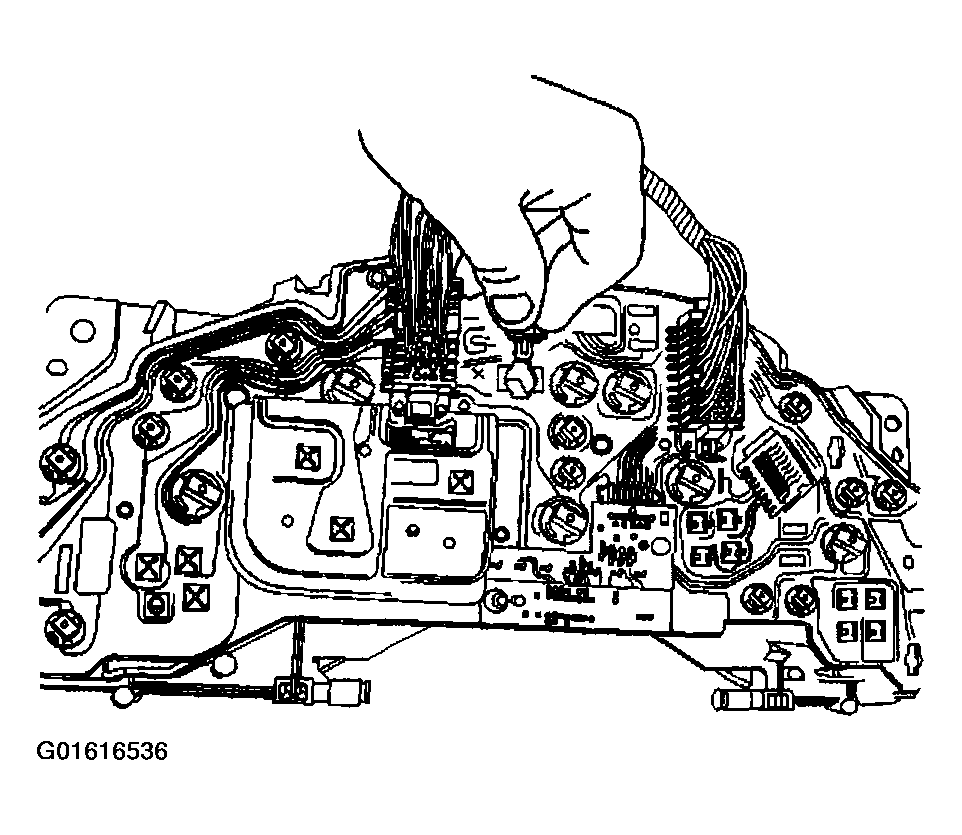

    Fig 2: Removing Lamp From Cluster
    G01616536Courtesy of GENERAL MOTORS CORP.
  4. Pull the bulb from the lamp socket.

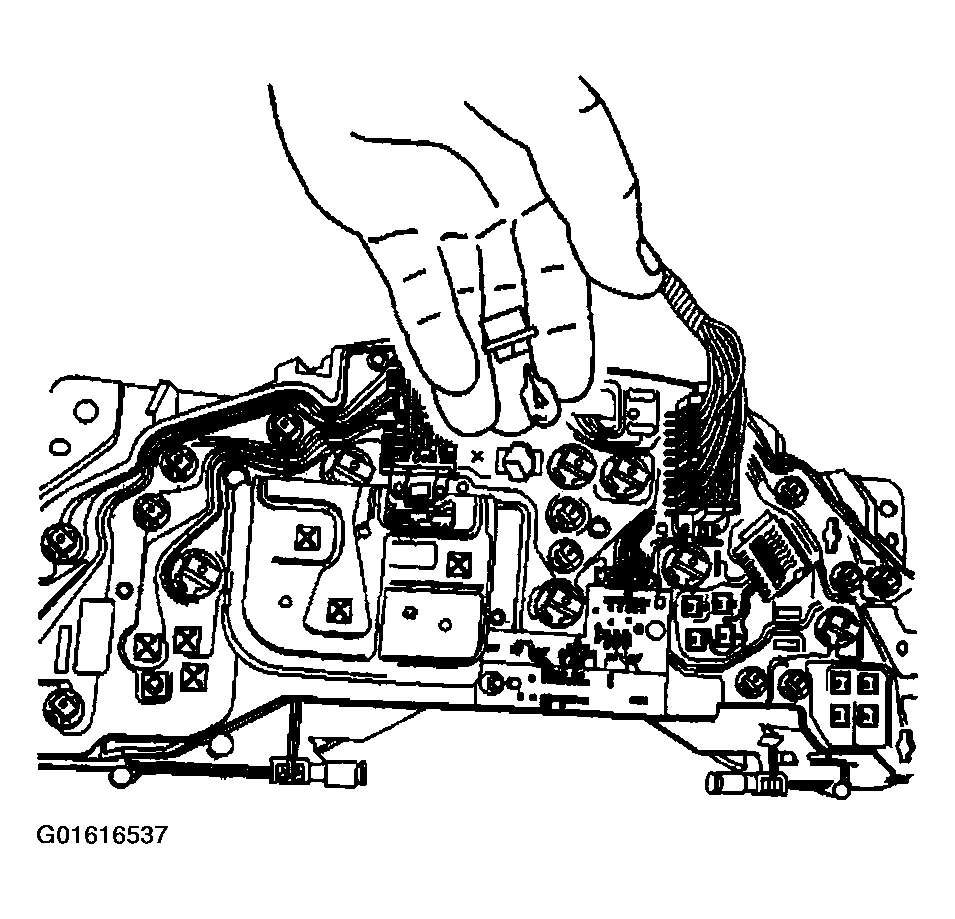

    Fig 3: Pulling Bulb From Lamp Socket
    G01616537Courtesy of GENERAL MOTORS CORP.
