Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster (IPC) trim plate. Refer to Instrument Panel Cluster (IPC) Replacement .
  2. Unsnap the head-up display (HUD) dimmer switch from the instrument panel (IP).
  3. Disconnect the electrical connectors from the HUD dimmer switch.
  4. Remove the HUD dimmer switch.

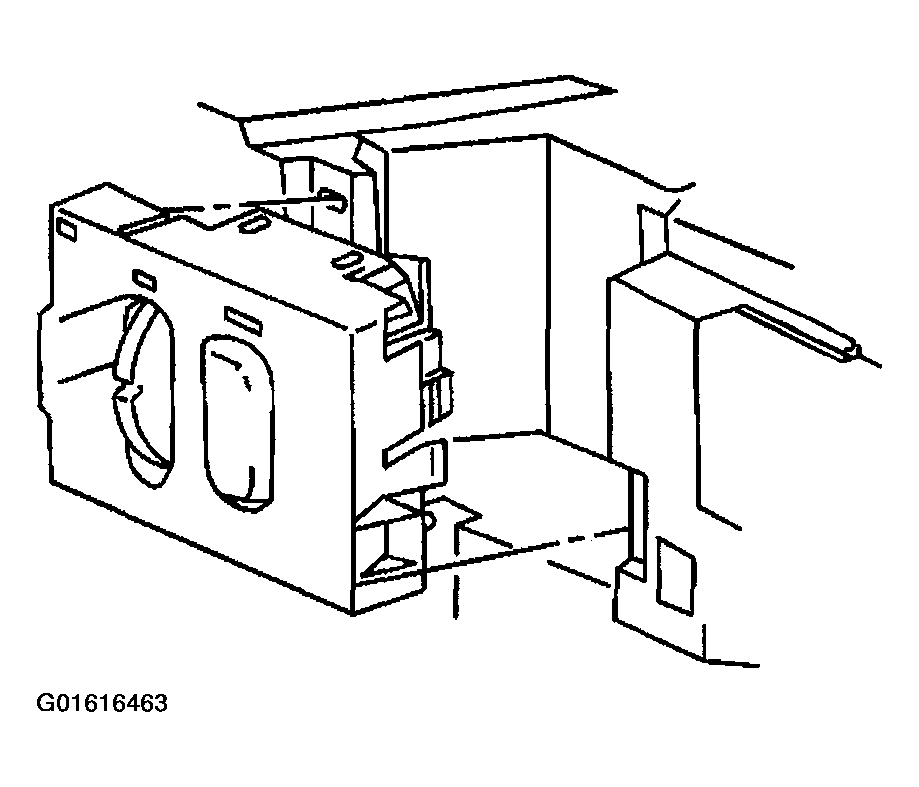

    Fig 1: HUD Dimmer Switch
    G01616463Courtesy of GENERAL MOTORS CORP.
