Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the electrical connector into the HUD dimmer switch.
  2. Snap the HUD dimmer switch into place in the IP.
  3. Install the IPC trim plate. Refer to Instrument Panel Cluster (IPC) Replacement .

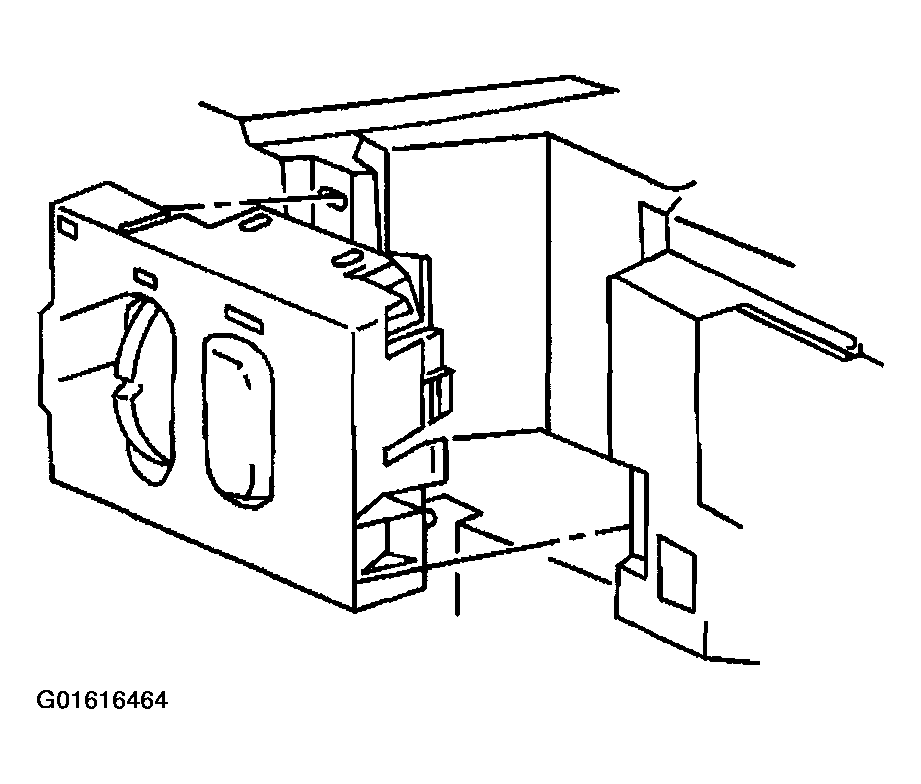

    Fig 1: HUD Dimmer Switch
    G01616464Courtesy of GENERAL MOTORS CORP.
