Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the air outlet deflector to the instrument panel (IP).

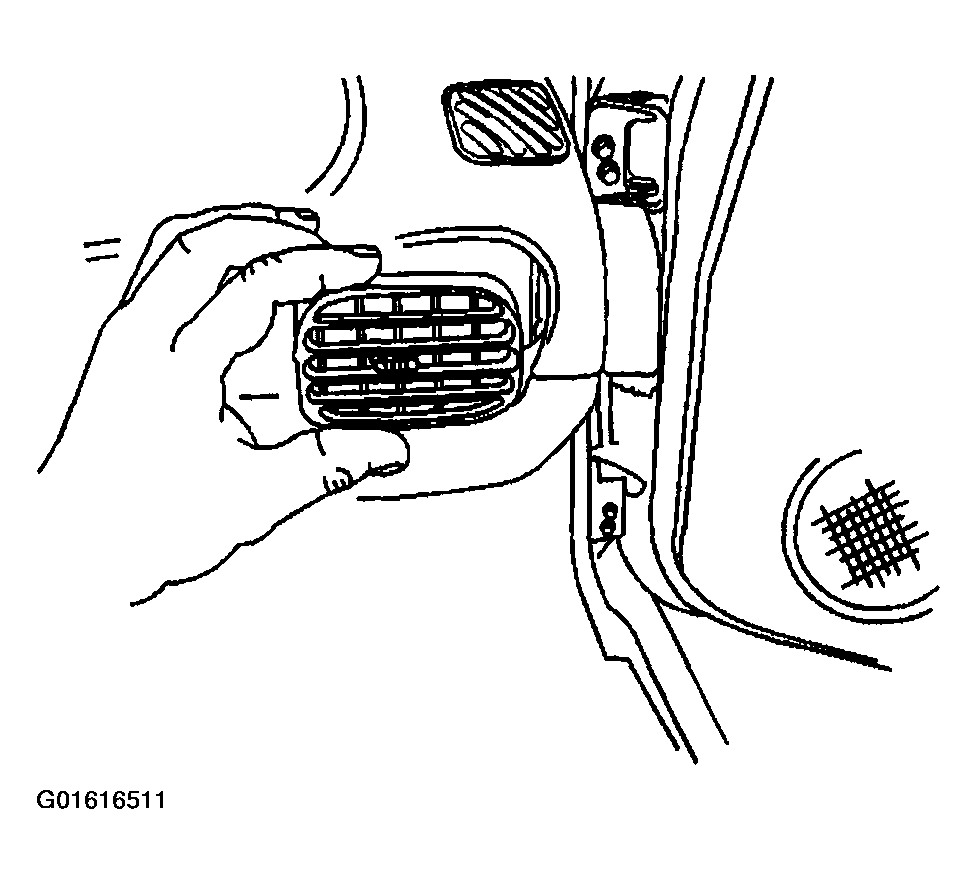

    Fig 1: Positioning Air Outlet Deflector
    G01616511Courtesy of GENERAL MOTORS CORP.
  2. Install the air outlet deflector to the IP by pressing into place until fully seated.
  3. Inspect the air outlet deflector for proper movement.

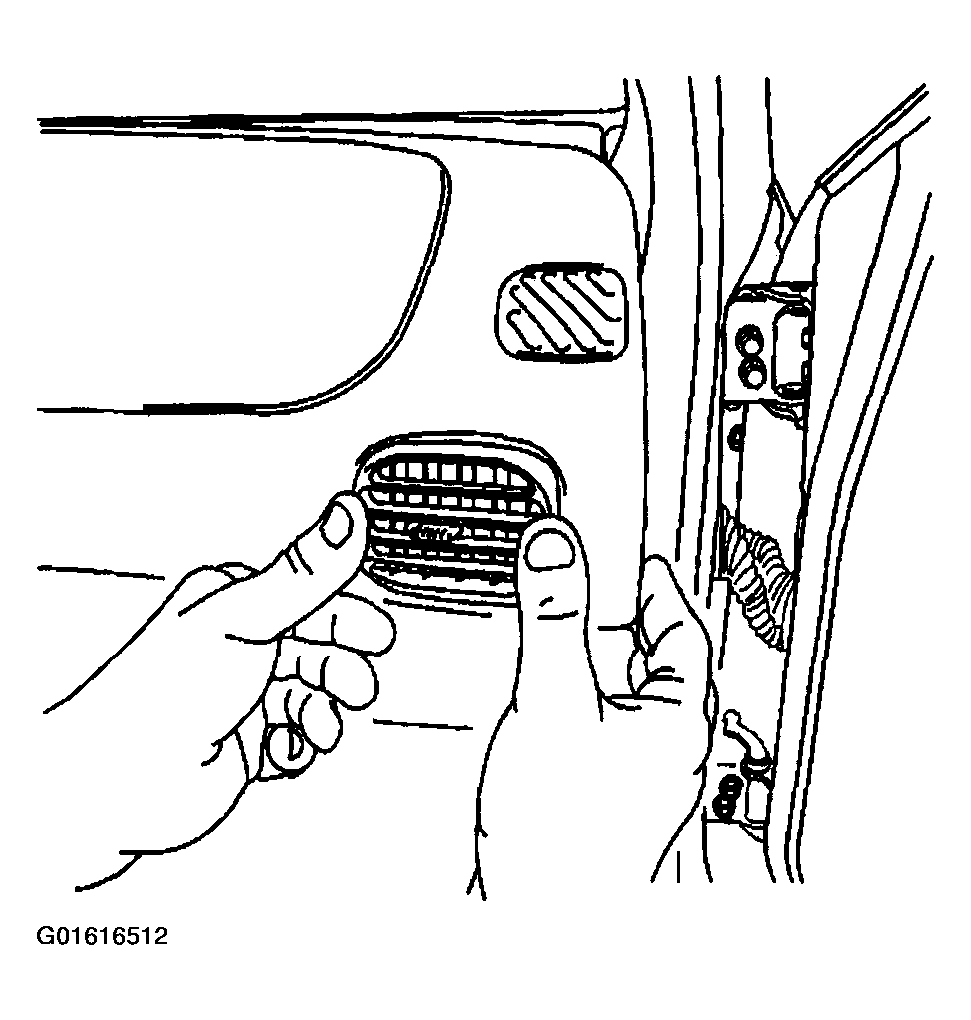

    Fig 2: Installing Air Outlet Deflector
    G01616512Courtesy of GENERAL MOTORS CORP.
