Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the support springs to the cupholder.

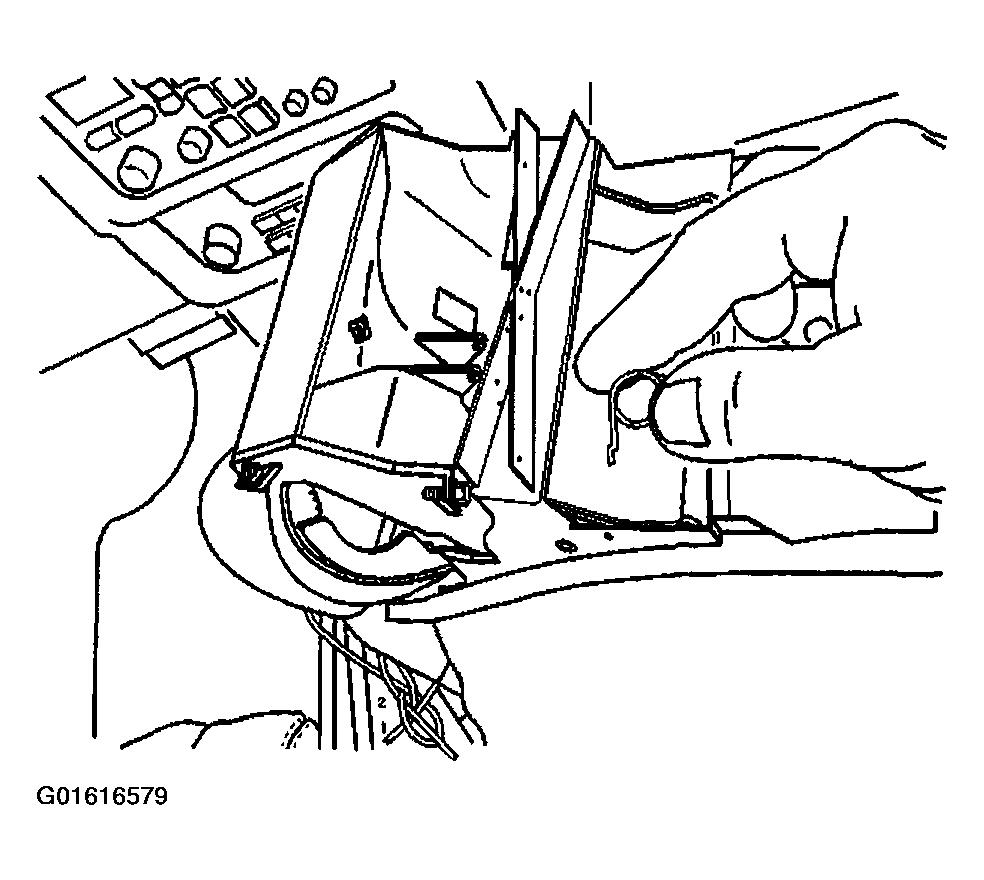

    Fig 1: Installing Support Springs To Cupholder
    G01616579Courtesy of GENERAL MOTORS CORP.
  2. Position the cupholder to the console trim plate. Install the cupholder to the trim plate by pressing into place until fully seated into the pivot points.
    Fig 2: Installing Cupholder To Console Trim Plate
    G01616580Courtesy of GENERAL MOTORS CORP.
  3. Install the support springs to the console cup holder.
  4. Inspect the cupholder for proper installation.
  5. Install the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - Front Floor Console .

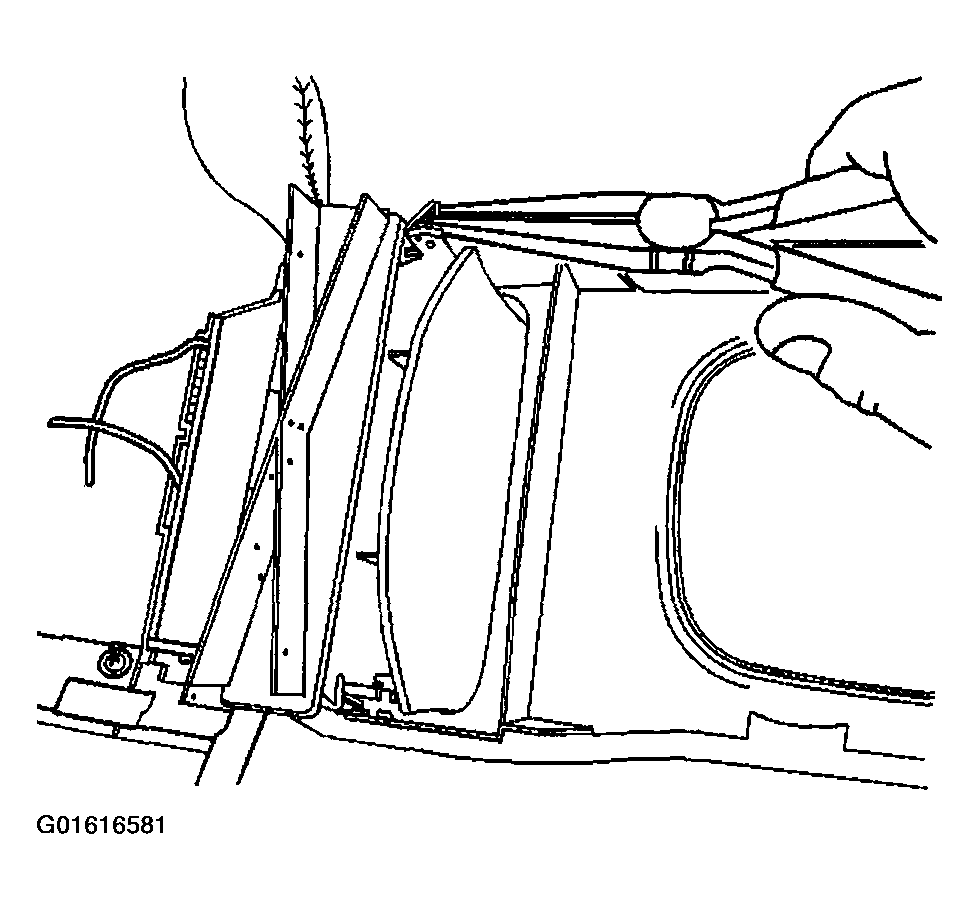

    Fig 3: Installing Support Springs
    G01616581Courtesy of GENERAL MOTORS CORP.
