Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the front floor console armrest.
  2. Remove the armrest hinge screws.

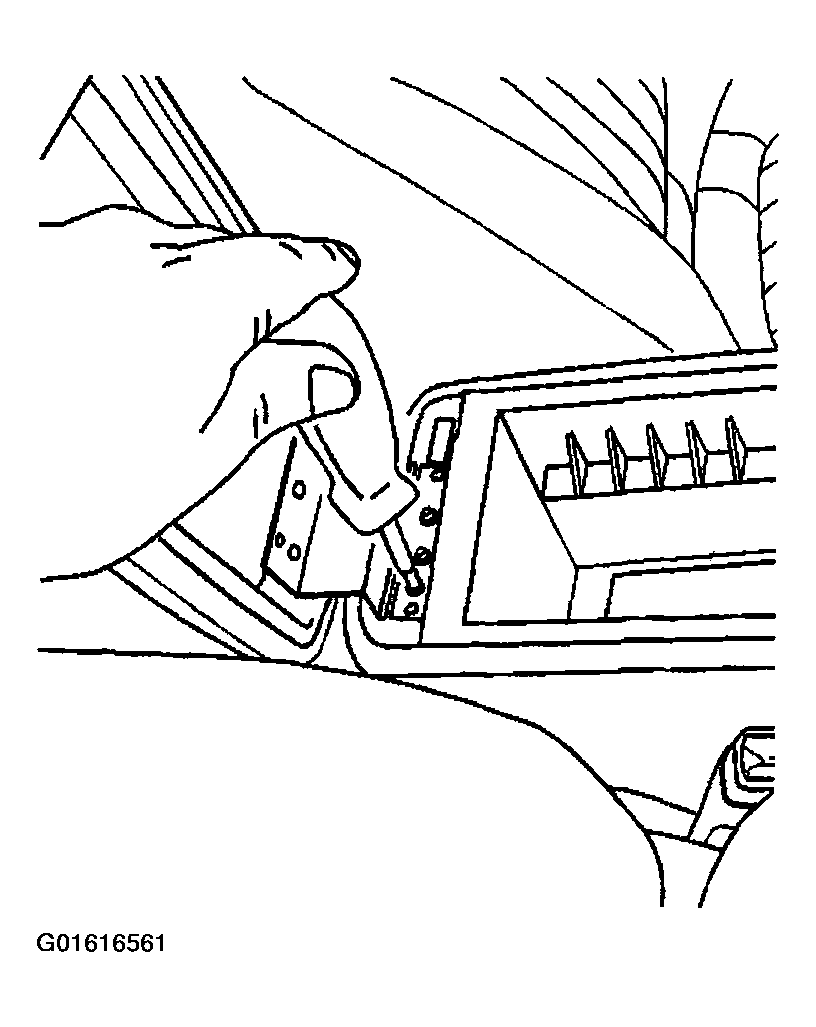

    Fig 1: Removing Armrest Hinge Screws
    G01616561Courtesy of GENERAL MOTORS CORP.
  3. Remove the armrest from the console.

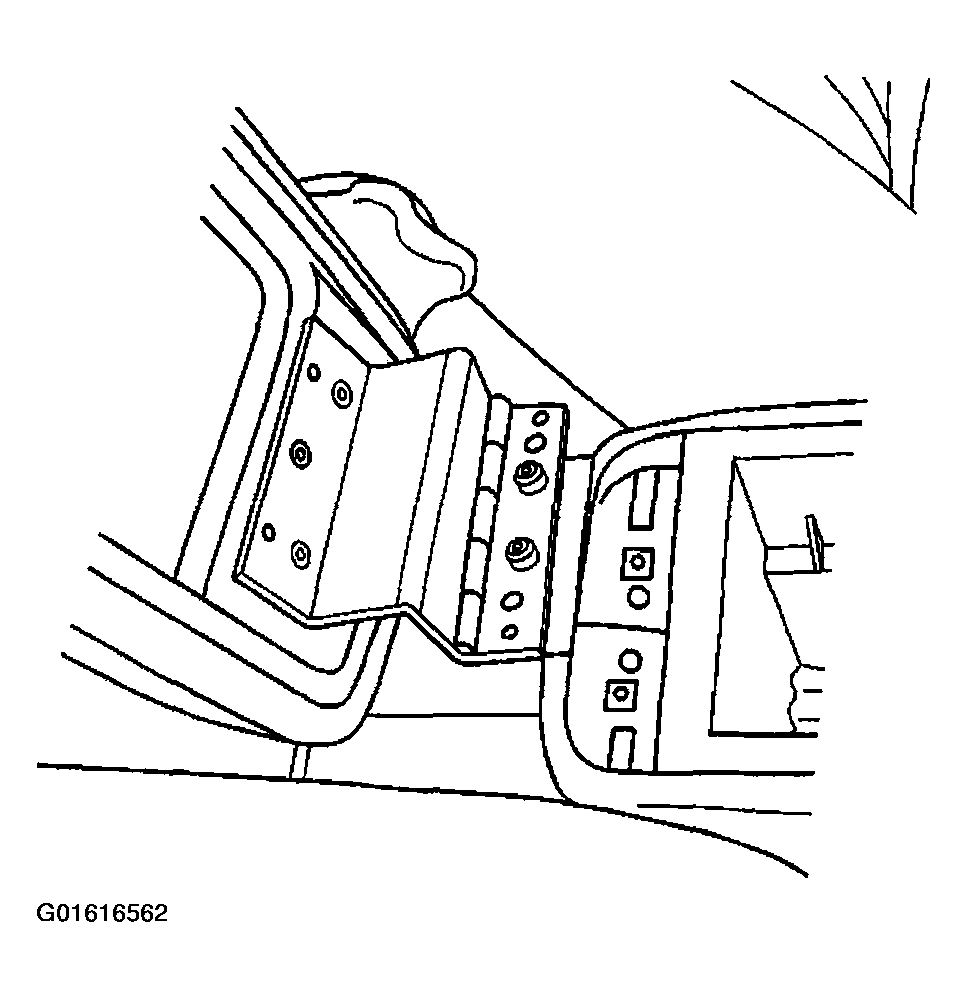

    Fig 2: Removing Armrest
    G01616562Courtesy of GENERAL MOTORS CORP.
