Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the armrest hinge to the floor console.

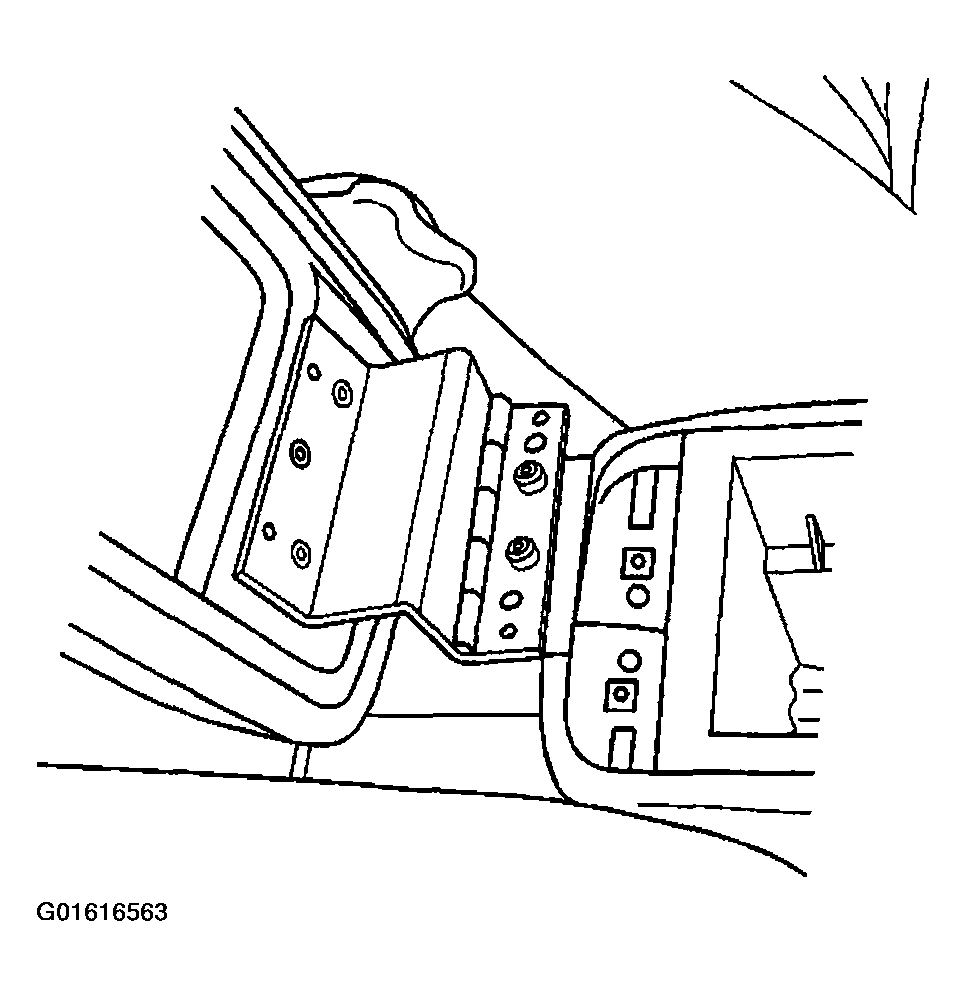

    Fig 1: Aligning Armrest Hinge
    G01616563Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the armrest hinge screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Lower the console armrest.

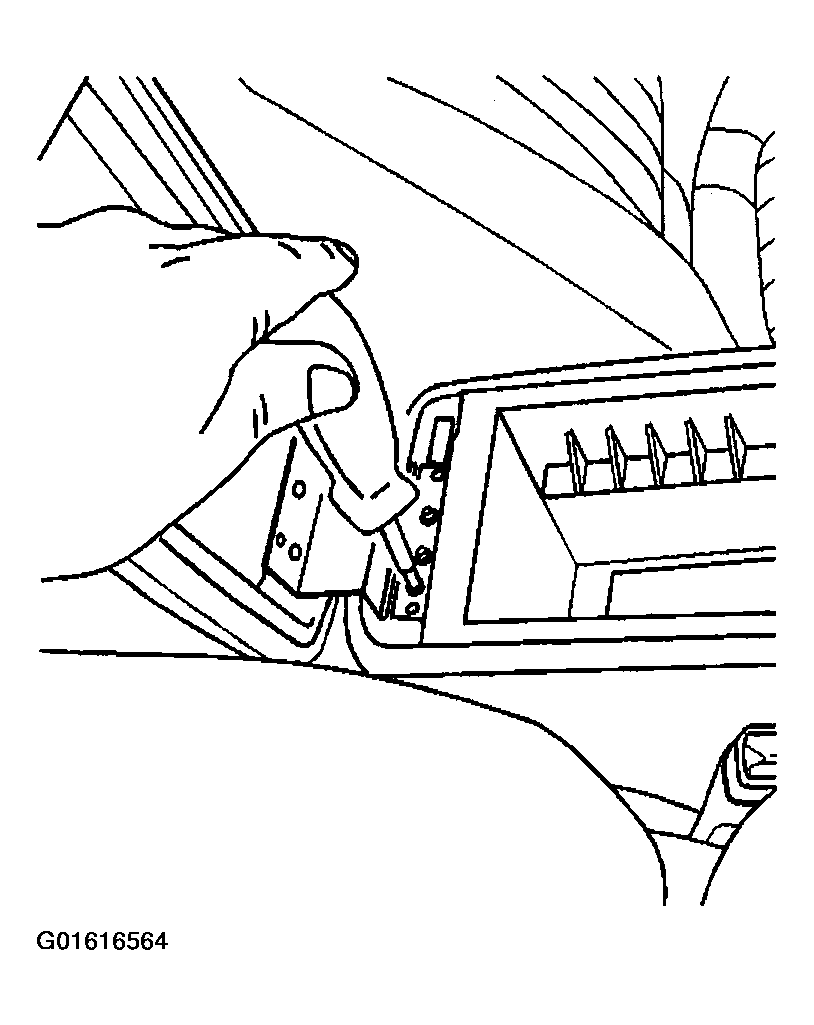

    Fig 2: Installing Armrest Hinge Screws
    G01616564Courtesy of GENERAL MOTORS CORP.
