Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) compartment hinge screws.
  2. Open the IP compartment.

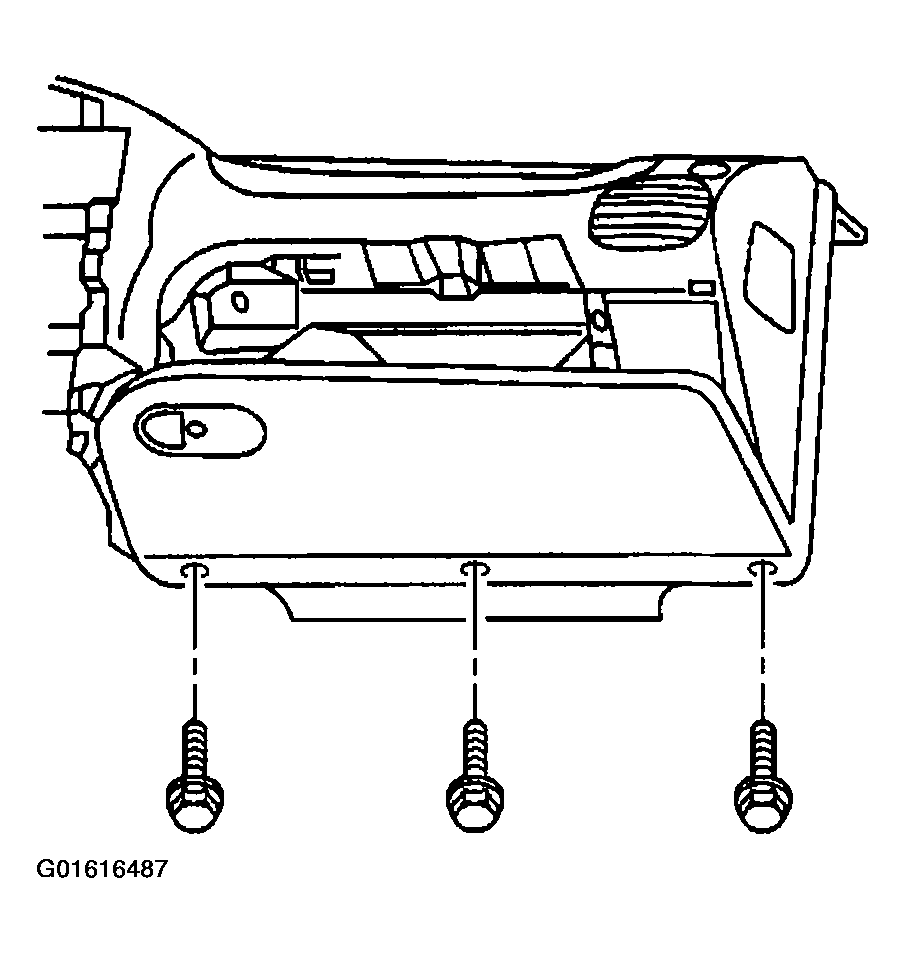

    Fig 1: I/P Compartment Hinge Screws
    G01616487Courtesy of GENERAL MOTORS CORP.
  3. Press inward on both sides of the IP compartment housing. Rotate down and out removing the housing from the IP.
    Fig 2: I/P Compartment
    G01616488Courtesy of GENERAL MOTORS CORP.
