Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the compartment housing with the IP.
  2. Press inward on both sides of the compartment housing. Rotate upward and inward to install the housing into the IP.
    Fig 1: I/P Compartment
    G01616489Courtesy of GENERAL MOTORS CORP.
  3. Hand tighten the IP compartment hinge screws.
  4. Align the IP compartment housing in order to ensure the correct fit.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the IP compartment hinge screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  6. Close the IP compartment.

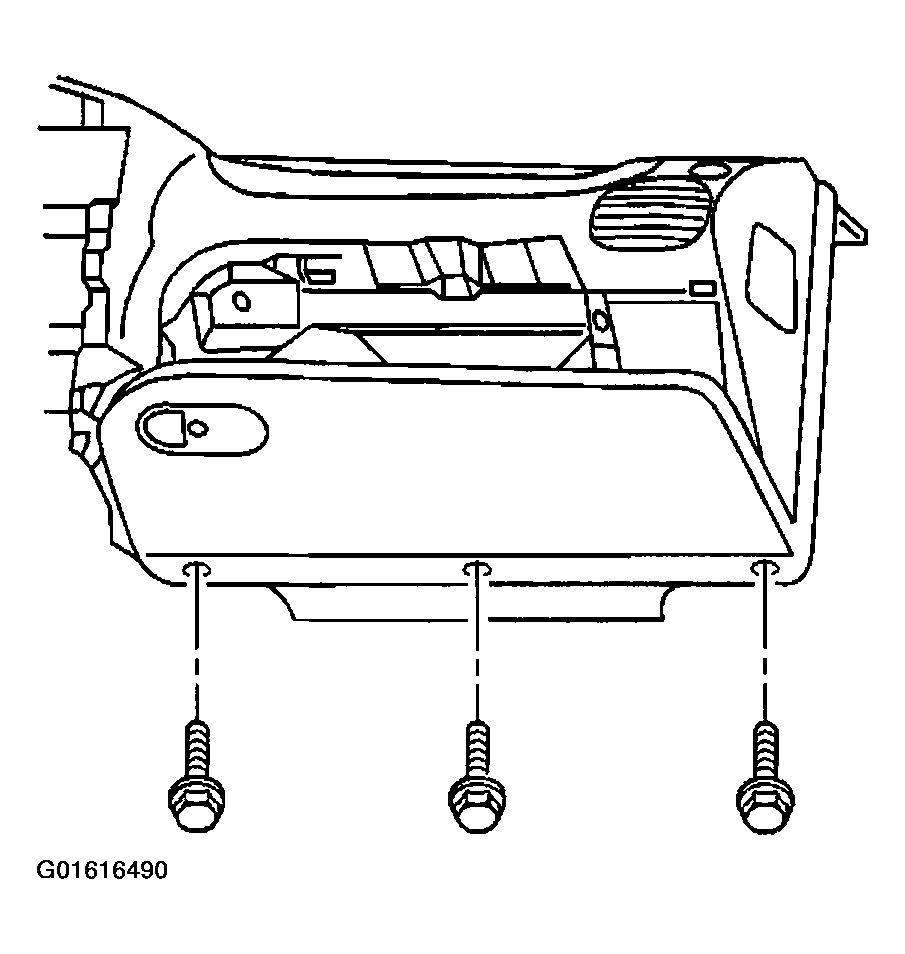

    Fig 2: I/P Compartment Hinge Screws
    G01616490Courtesy of GENERAL MOTORS CORP.
