Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the courtesy lamp into the left I/P insulator. Rotate the courtesy lamp clockwise to secure correctly.

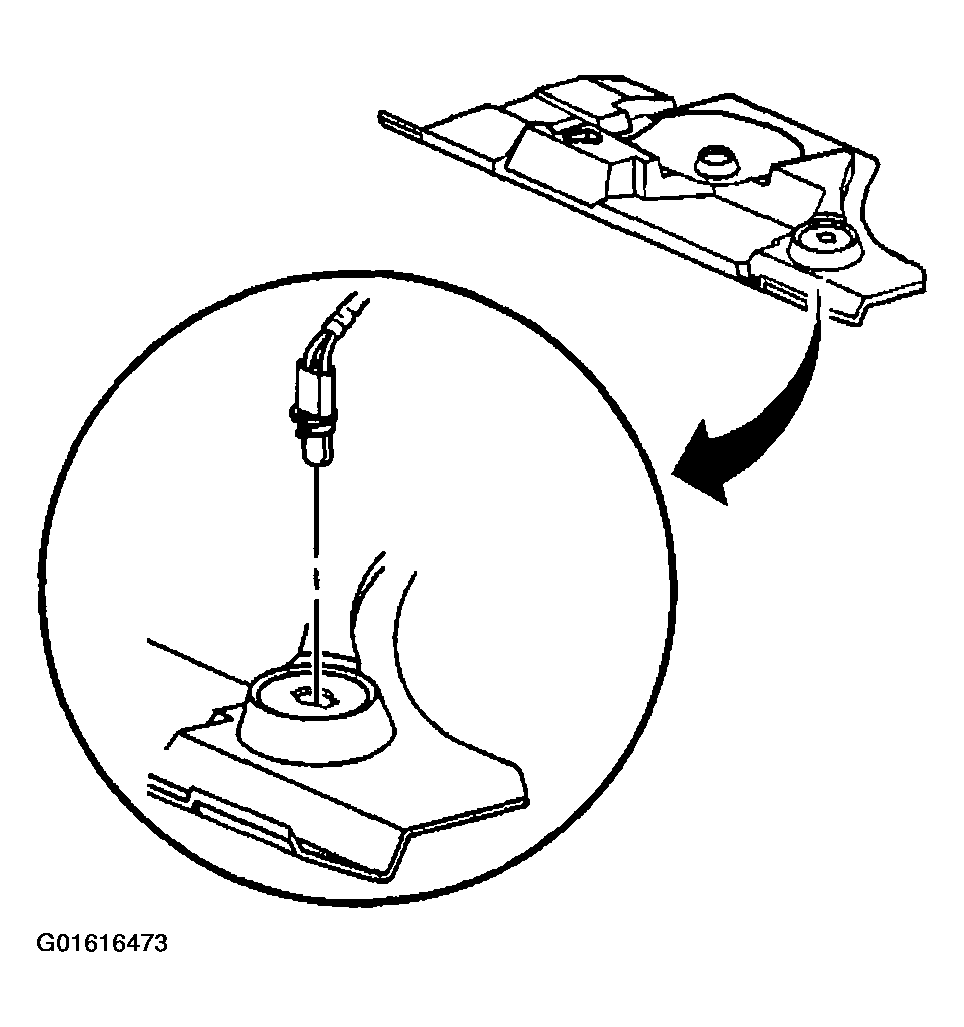

    Fig 1: Courtesy Lamp
    G01616473Courtesy of GENERAL MOTORS CORP.
  2. Install the left I/P insulator to the instrument panel.
  3. Install the push-in retainers to the left I/P insulator.
    Fig 2: Left I/P Insulator
    G01616474Courtesy of GENERAL MOTORS CORP.
