Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the lighter element.
Install the lighter element retainer.

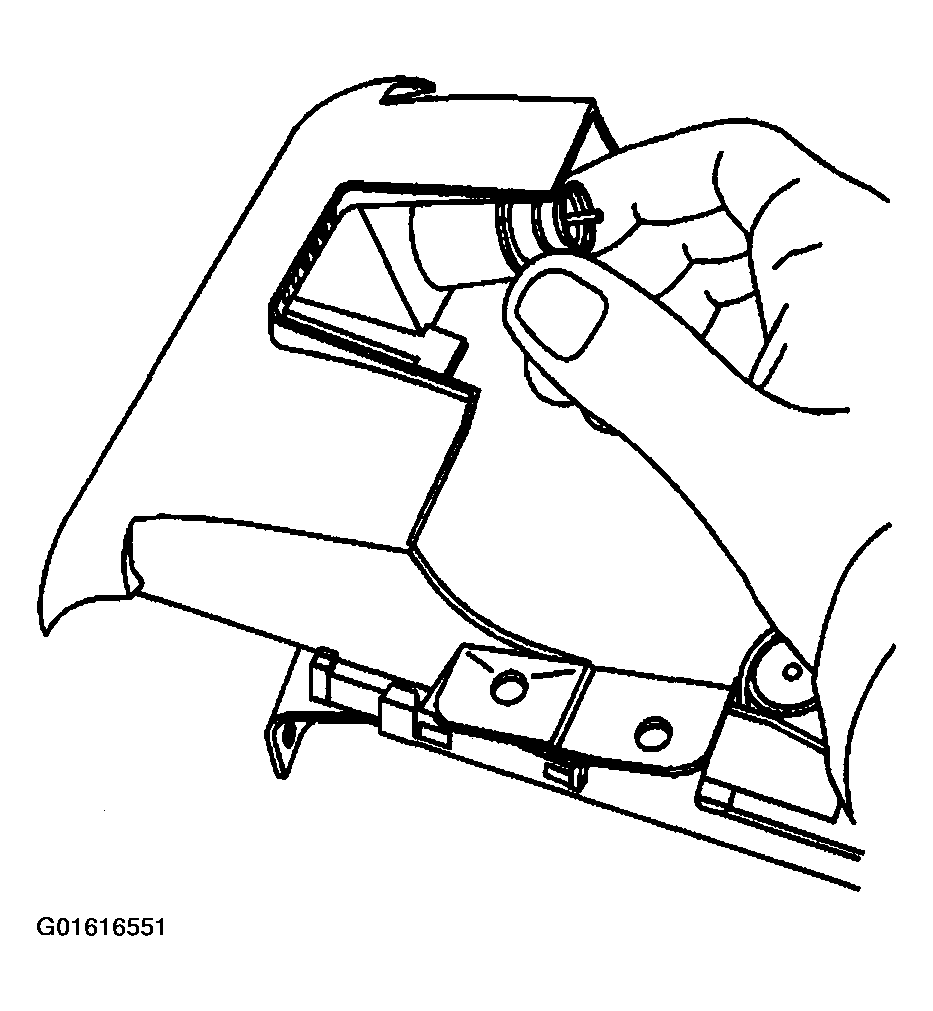

Fig 1: Installing Lighter Element
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the lighter element.
Install the ashtray. Refer to Ashtray Replacement .

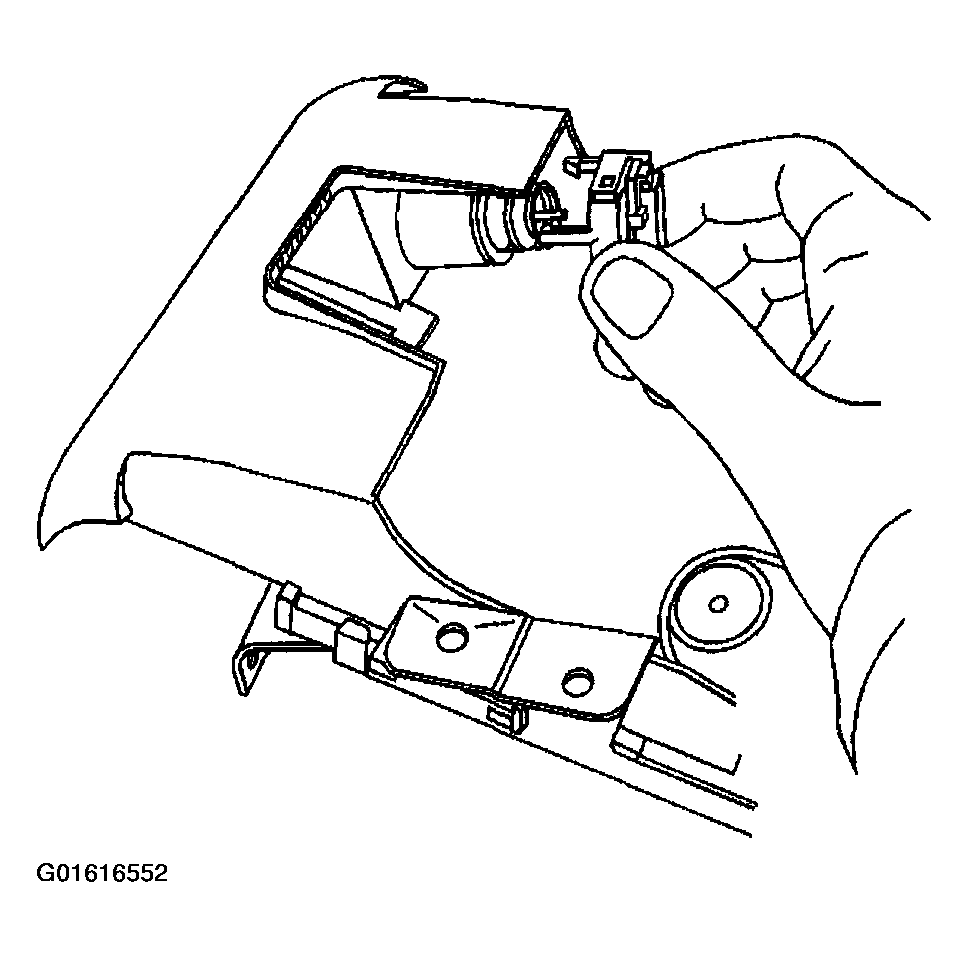

Fig 2: Connecting Lighter Element Electrical Connector
Courtesy of GENERAL MOTORS CORP.
