Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IPC) cluster trim plate. Refer to TRIM PANEL REPLACEMENT - IP Cluster .
  2. Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - Front Floor Console .
  3. Remove the ashtray from the bracket.

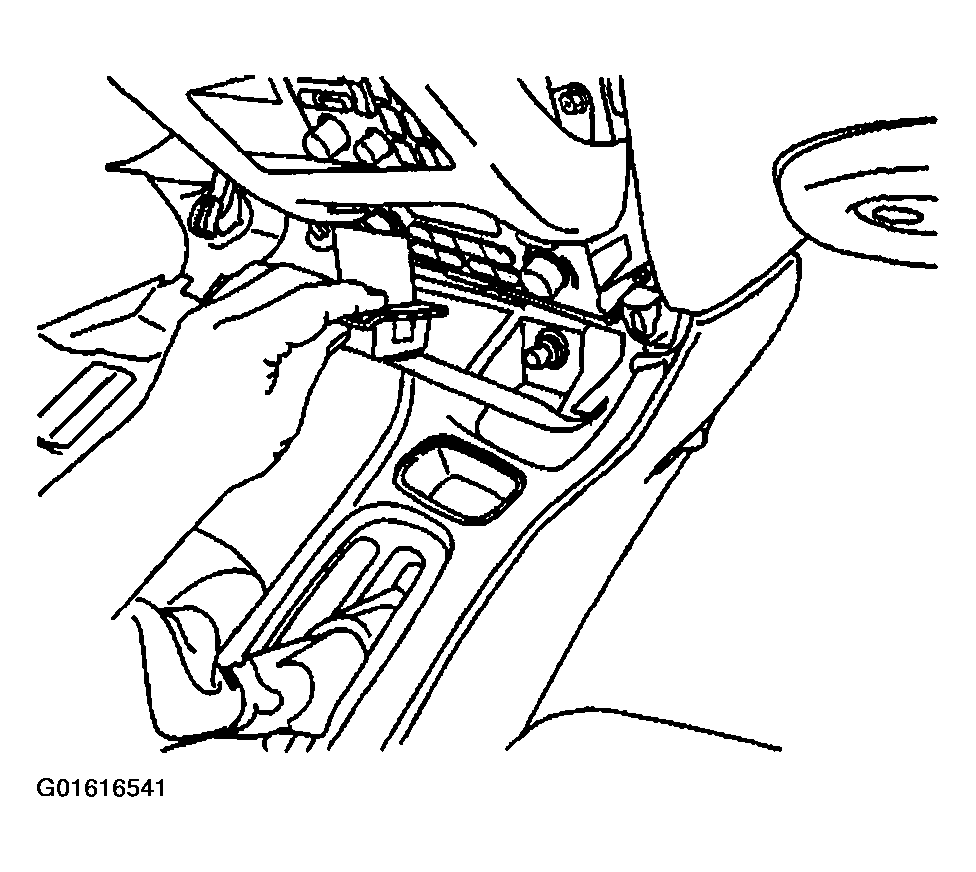

    Fig 1: Removing Ashtray
    G01616541Courtesy of GENERAL MOTORS CORP.
  4. Remove the lower ashtray bracket screws.
  5. Remove the upper ashtray bracket screws.

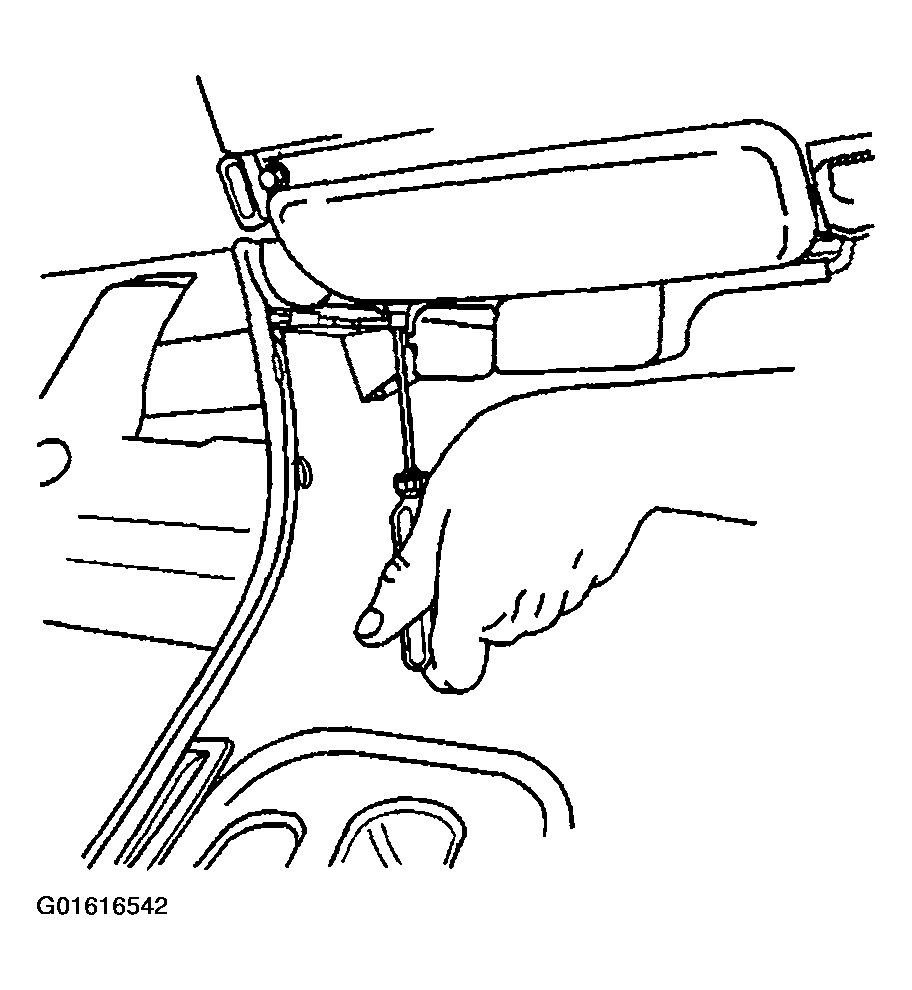

    Fig 2: Removing Ashtray Bracket Screws
    G01616542Courtesy of GENERAL MOTORS CORP.
  6. Remove the ashtray bracket from the instrument panel (IP).
  7. Disconnect the electrical connector from the ashtray bracket.

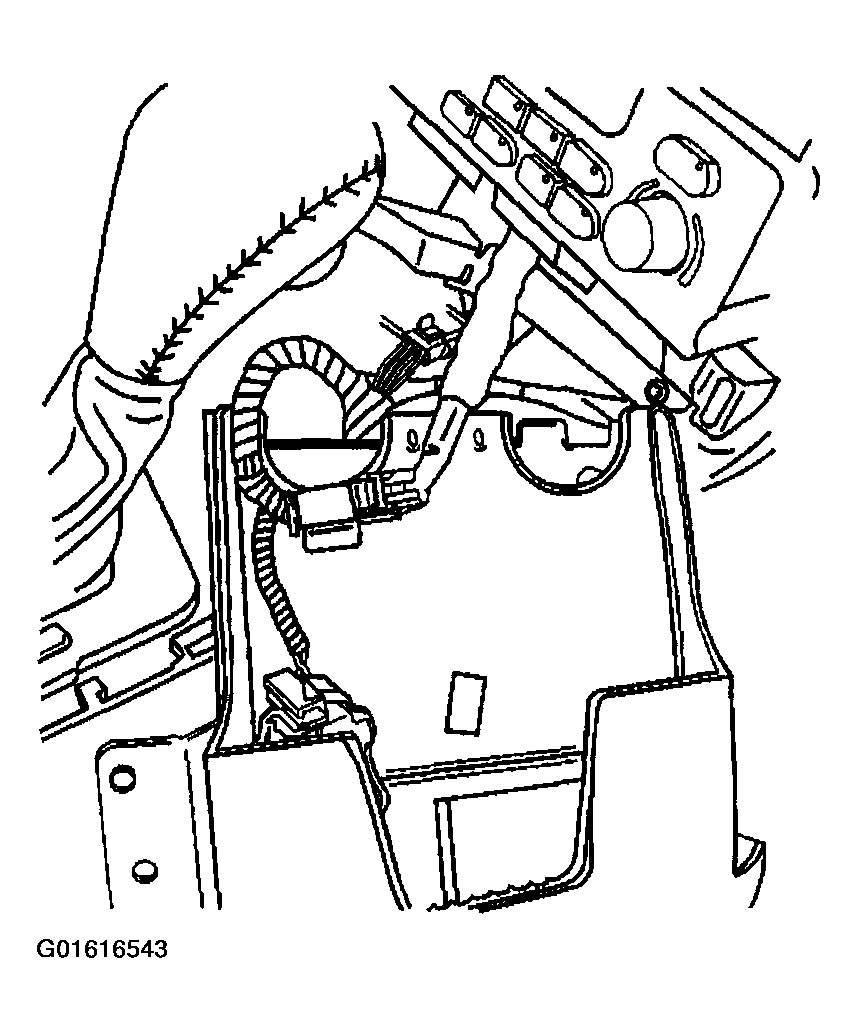

    Fig 3: Ashtray Bracket Electrical Connector
    G01616543Courtesy of GENERAL MOTORS CORP.
