Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the ashtray bracket.
  2. Install the ashtray bracket to the IP.

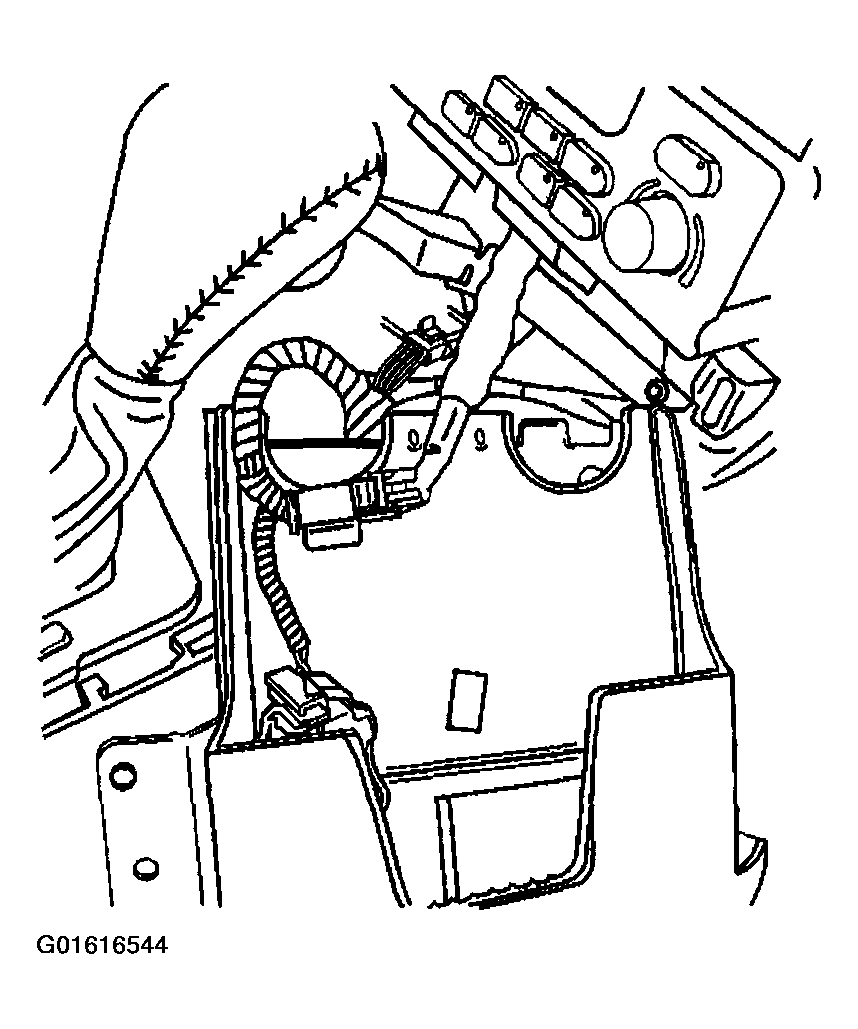

    Fig 1: Ashtray Bracket Electrical Connector
    G01616544Courtesy of GENERAL MOTORS CORP.
  3. Install the upper ashtray bracket screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

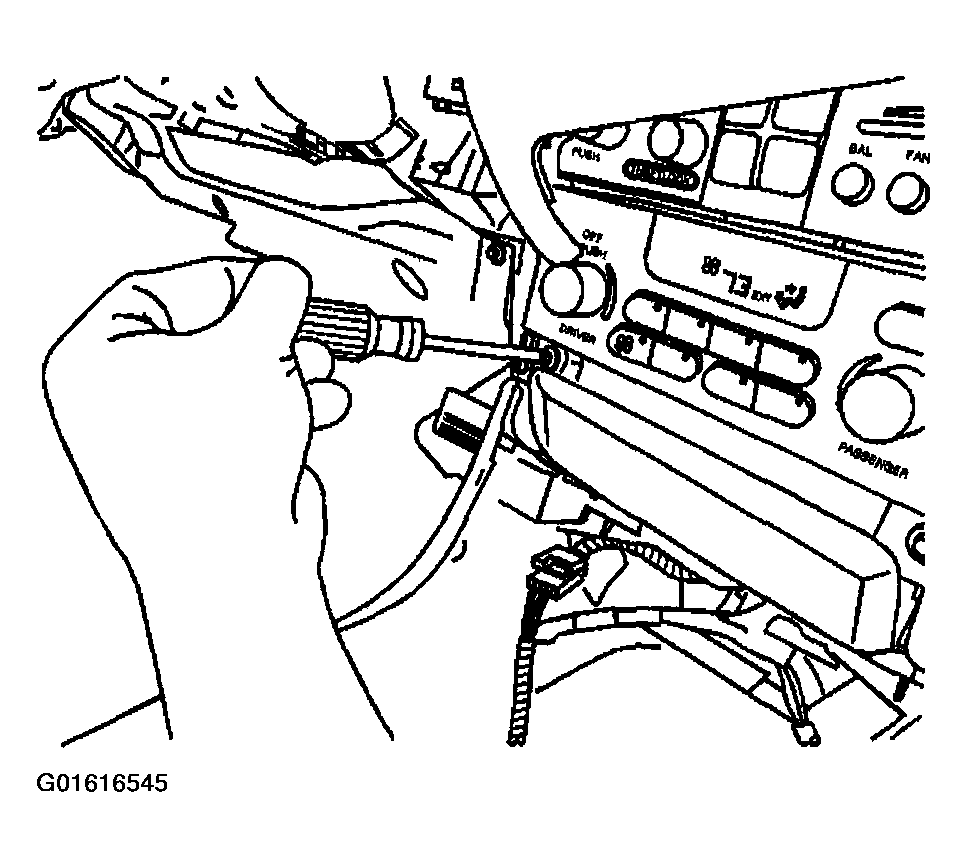

    Fig 2: Installing Upper Ashtray Bracket Screws
    G01616545Courtesy of GENERAL MOTORS CORP.
  4. Install the lower ashtray bracket screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

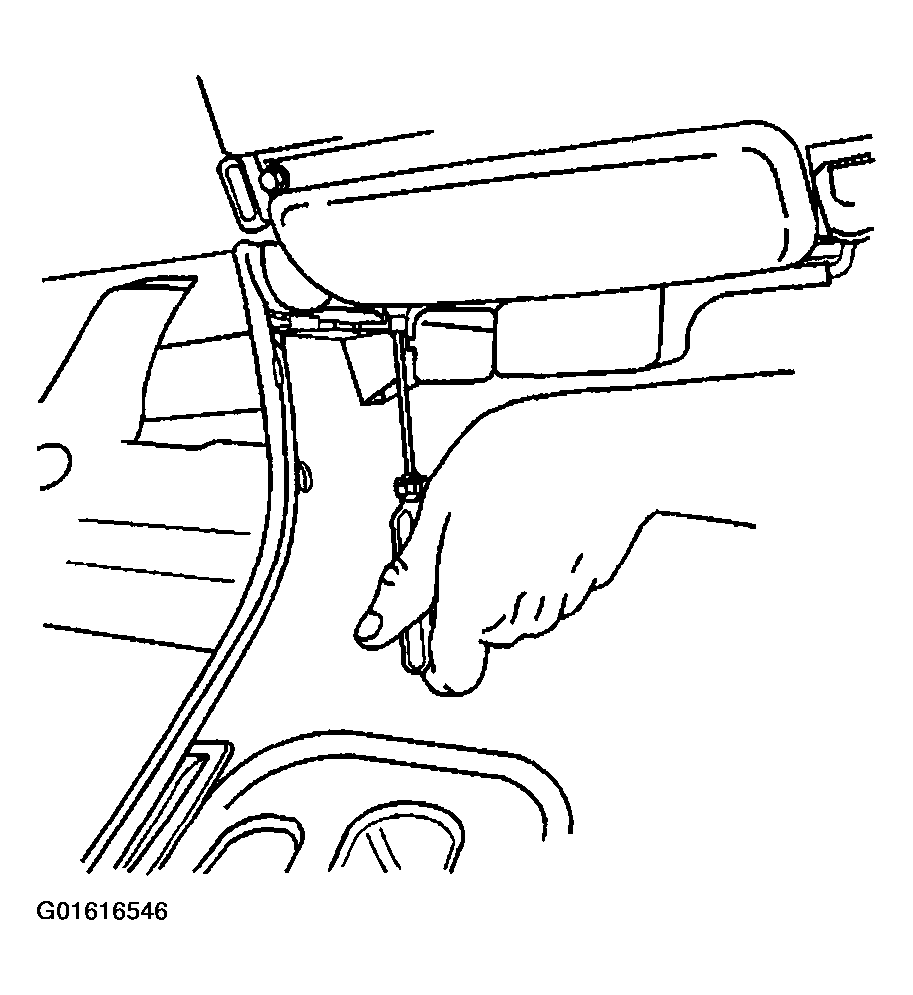

    Fig 3: Installing Lower Ashtray Bracket Screws
    G01616546Courtesy of GENERAL MOTORS CORP.
  5. Install the ashtray to the bracket.
  6. Install the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - Front Floor Console .
  7. Install the IPC trim plate. Refer to TRIM PANEL REPLACEMENT - IP Cluster .

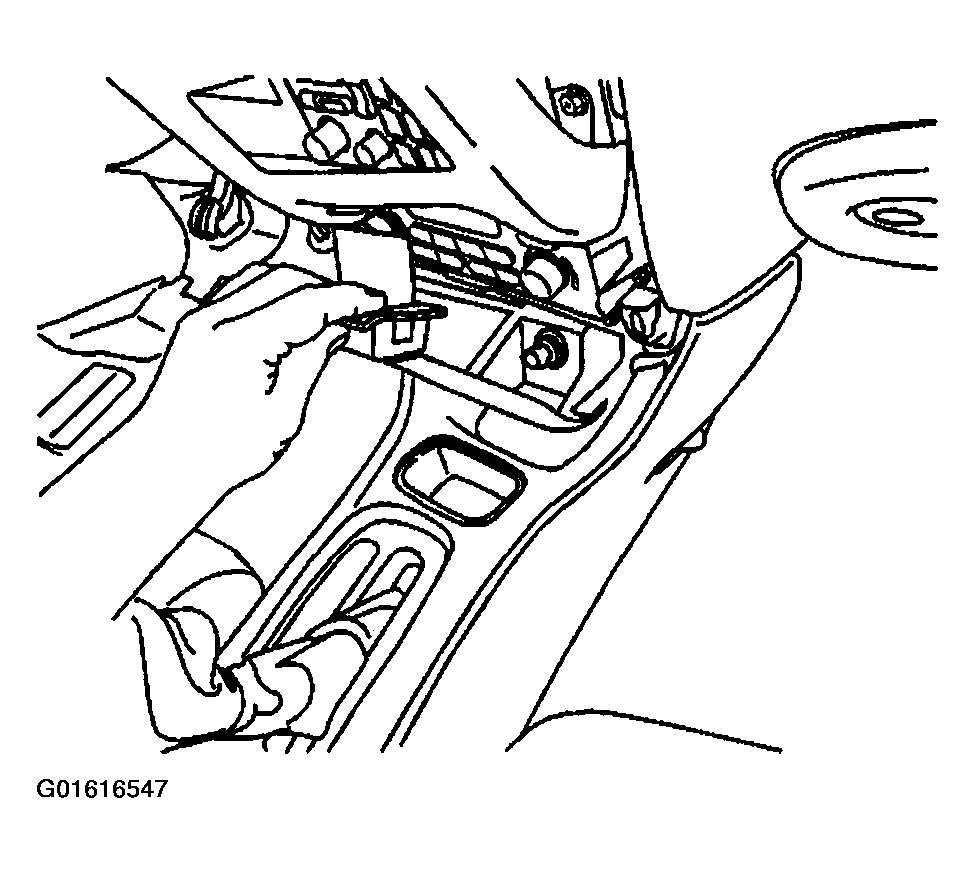

    Fig 4: Installing Ashtray
    G01616547Courtesy of GENERAL MOTORS CORP.
