Instrument Panel, Gages, and Console Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

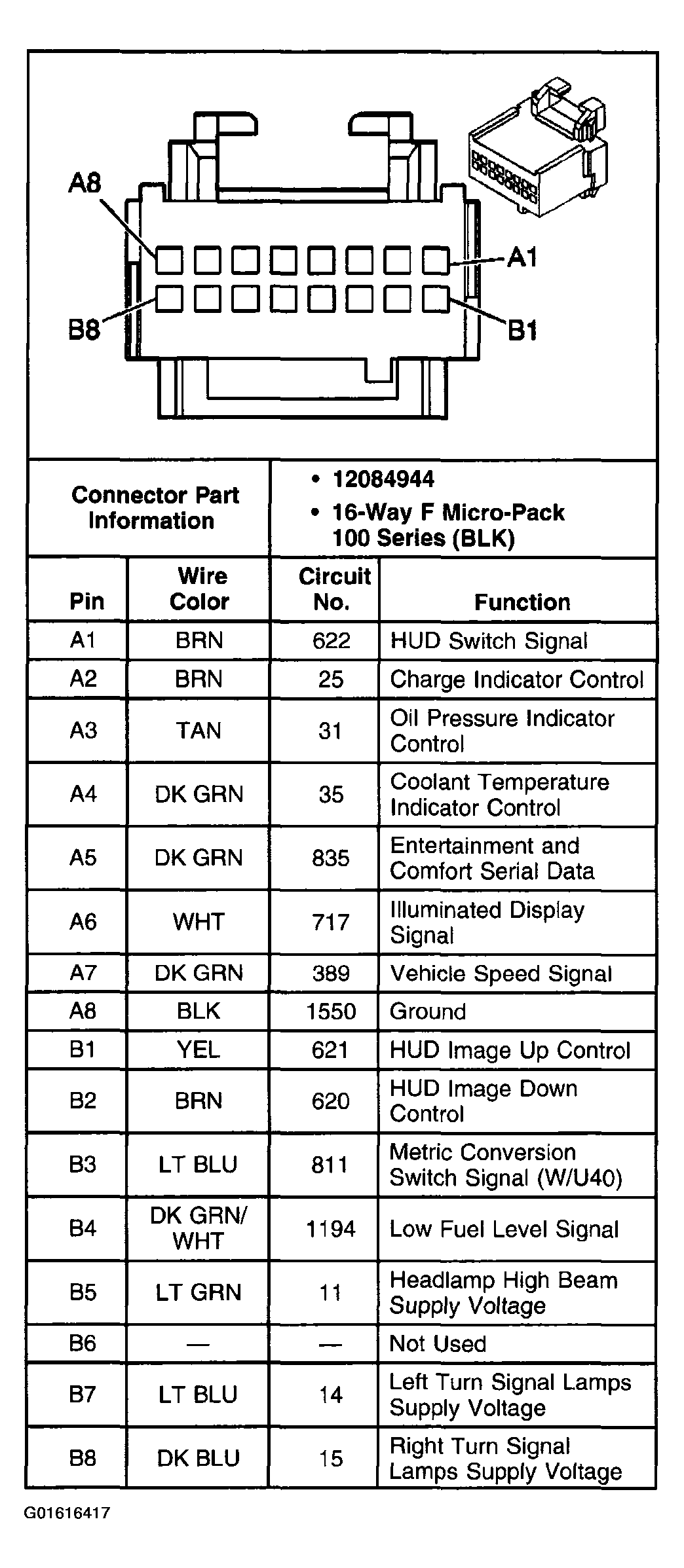

Fig 1: Driver Information Center (DIC) (W/O RPO U40)

Courtesy of GENERAL MOTORS CORP.

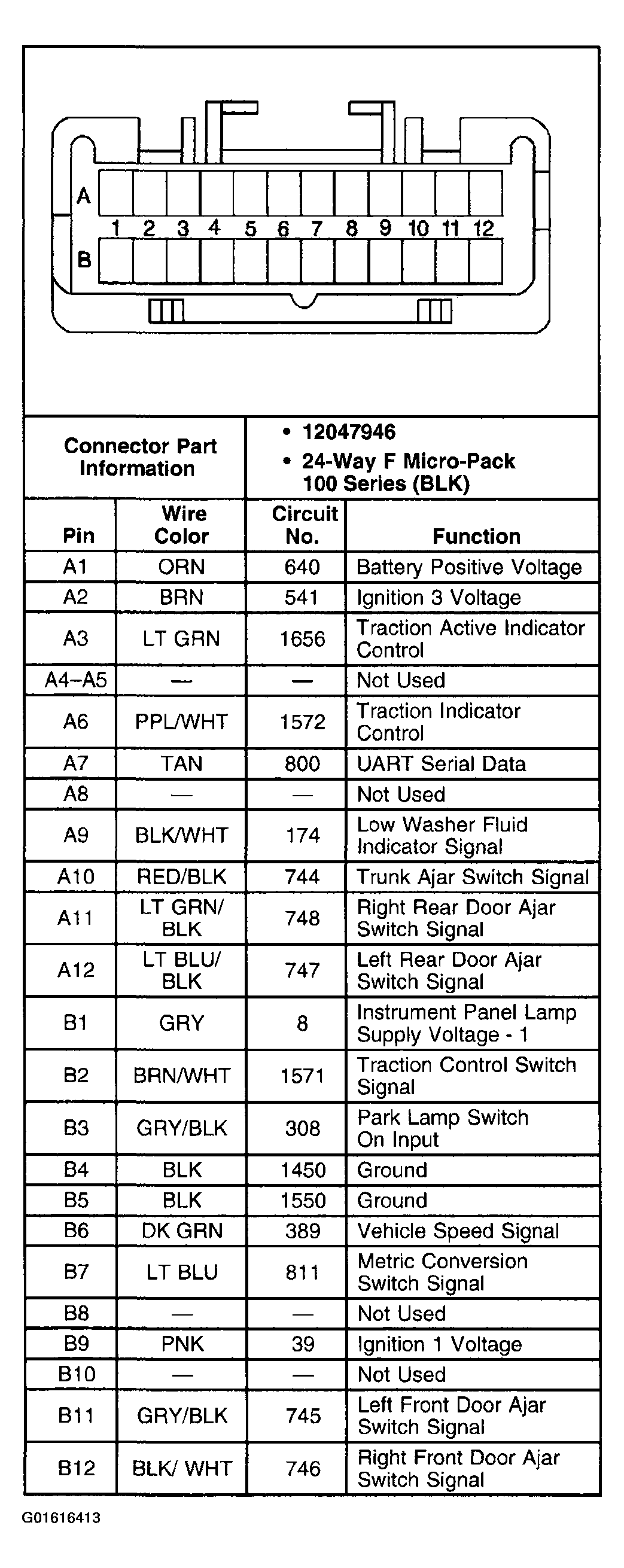

Fig 2: Driver Information Center (DIC) (W/ RPO U40)

Courtesy of GENERAL MOTORS CORP.

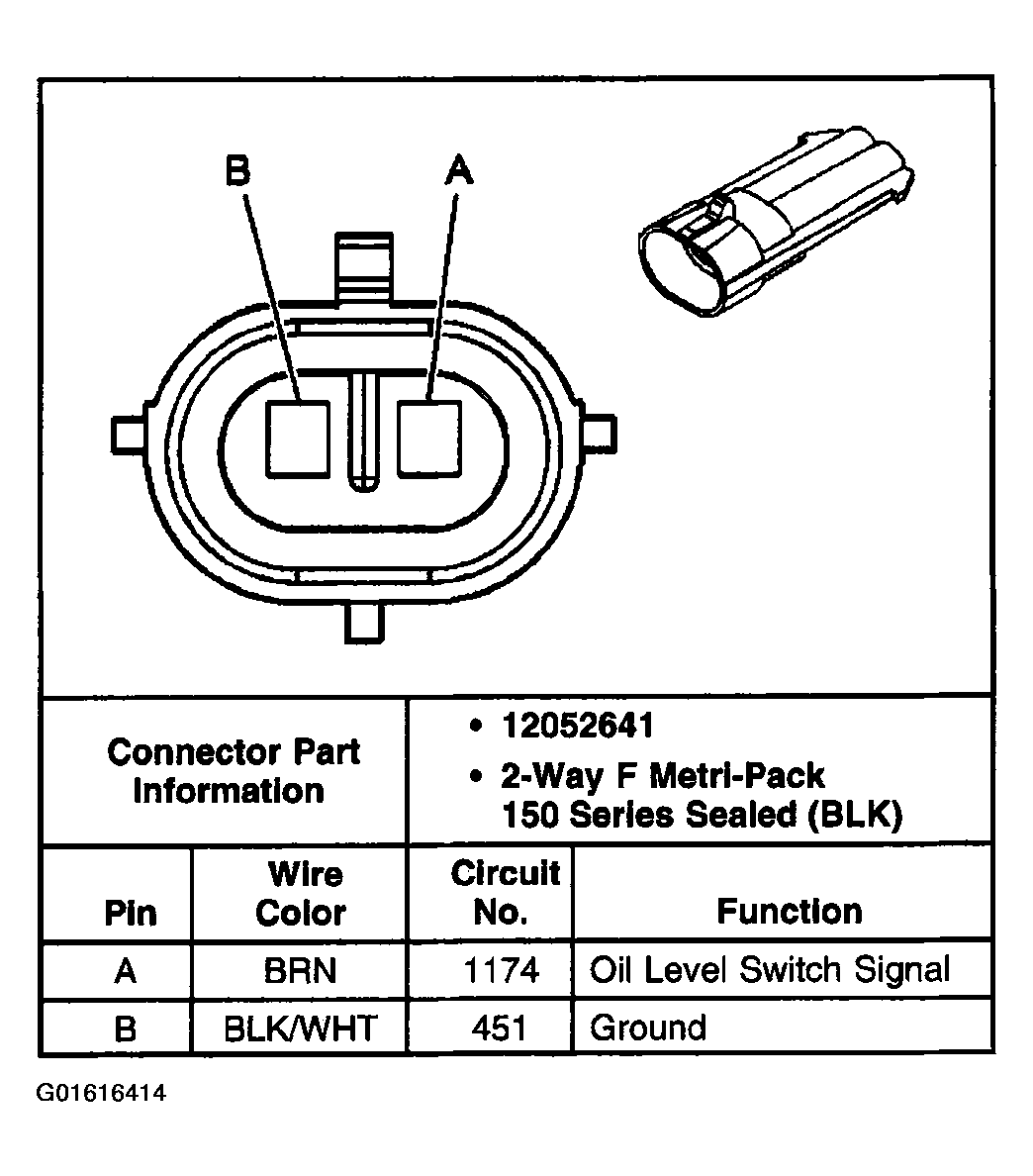

Fig 3: Engine Oil Level Switch

Courtesy of GENERAL MOTORS CORP.

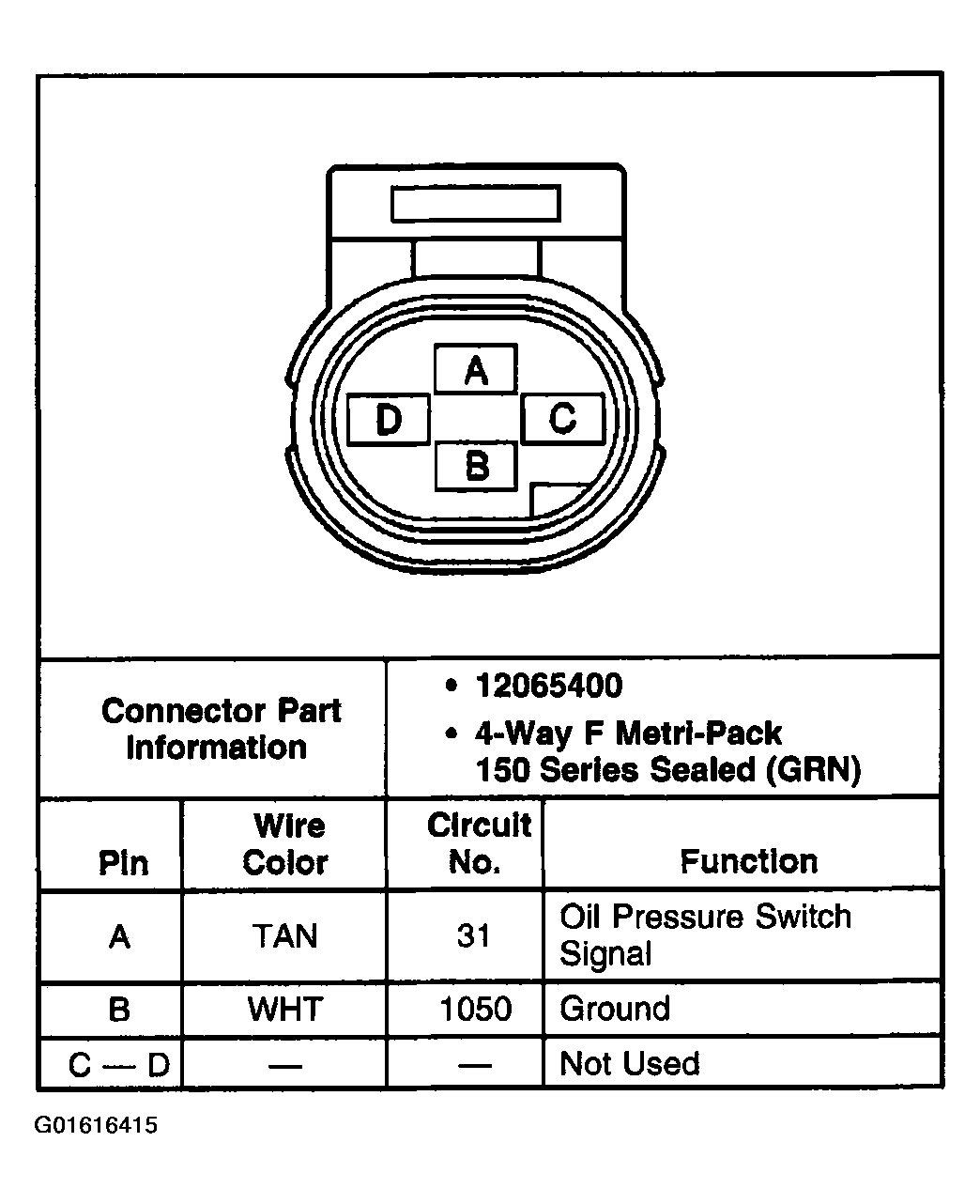

Fig 4: Engine Oil Level Pressure (EOP) Switch (L36, L67)

Courtesy of GENERAL MOTORS CORP.

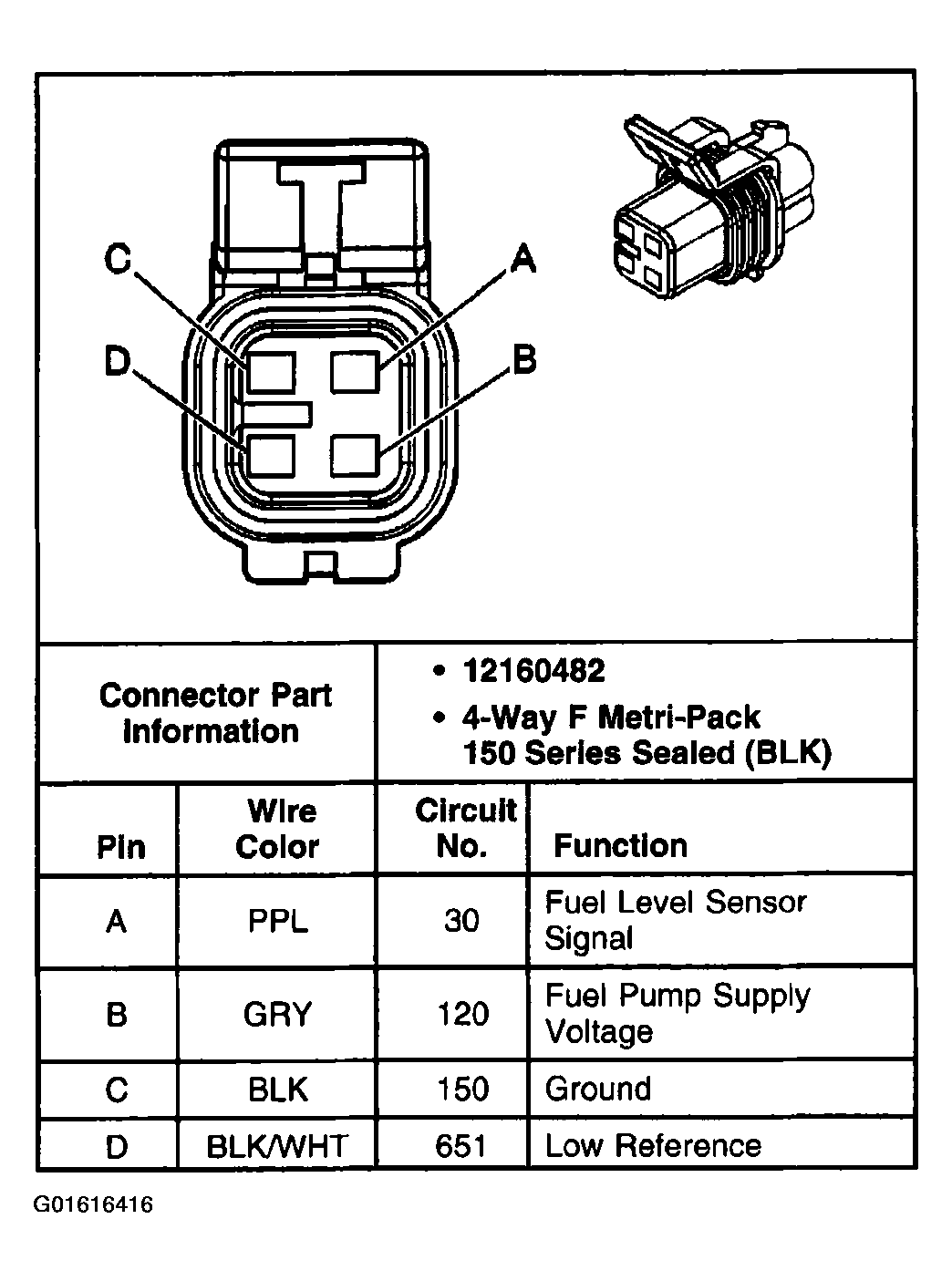

Fig 5: Fuel Pump and Sender Assembly

Courtesy of GENERAL MOTORS CORP.

Fig 6: Head Up Display (HUD - w/RPO UV6)

Courtesy of GENERAL MOTORS CORP.

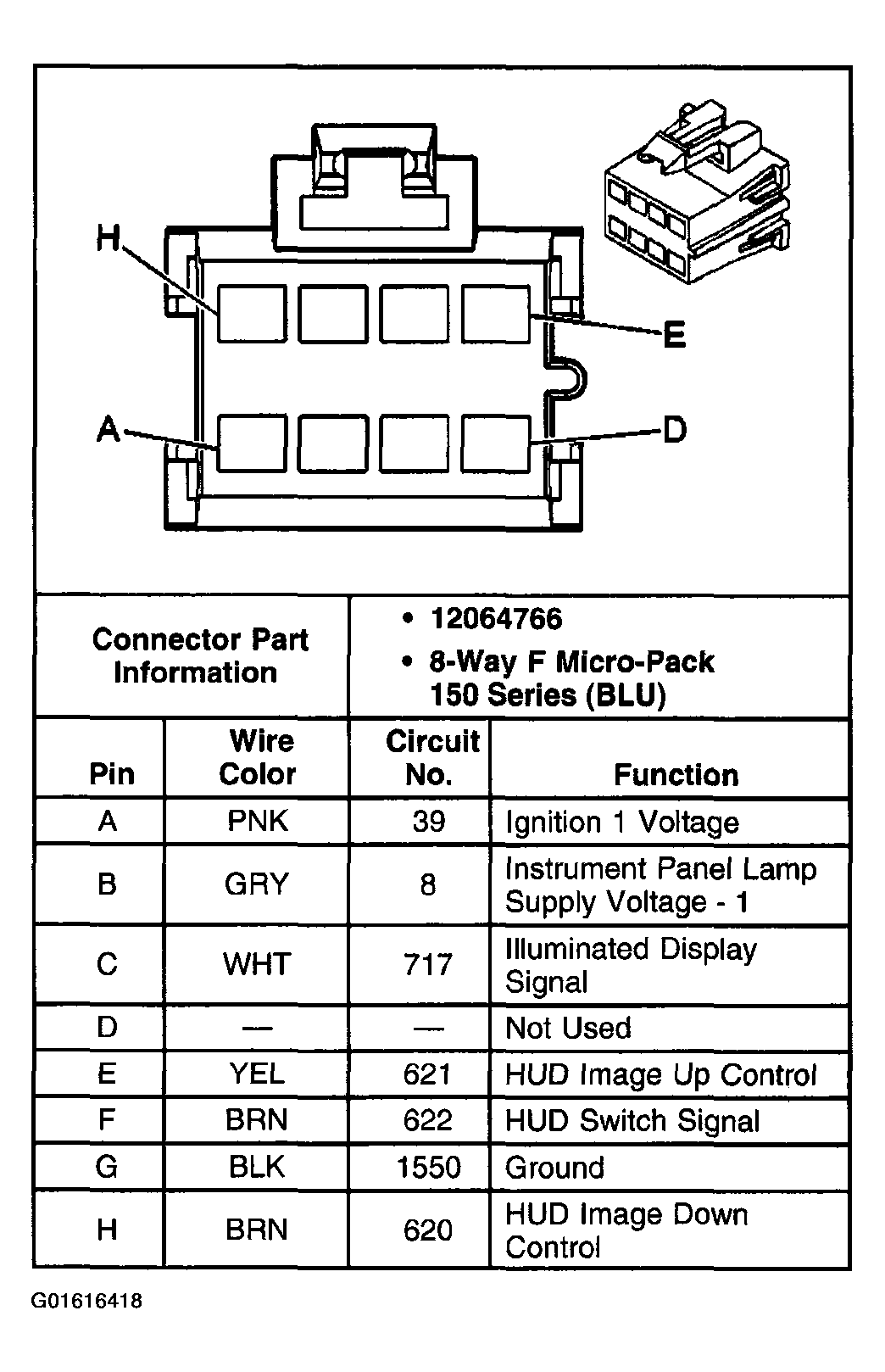

Fig 7: Head Up Display (HUD) Switch (w/RPO UV6)

Courtesy of GENERAL MOTORS CORP.

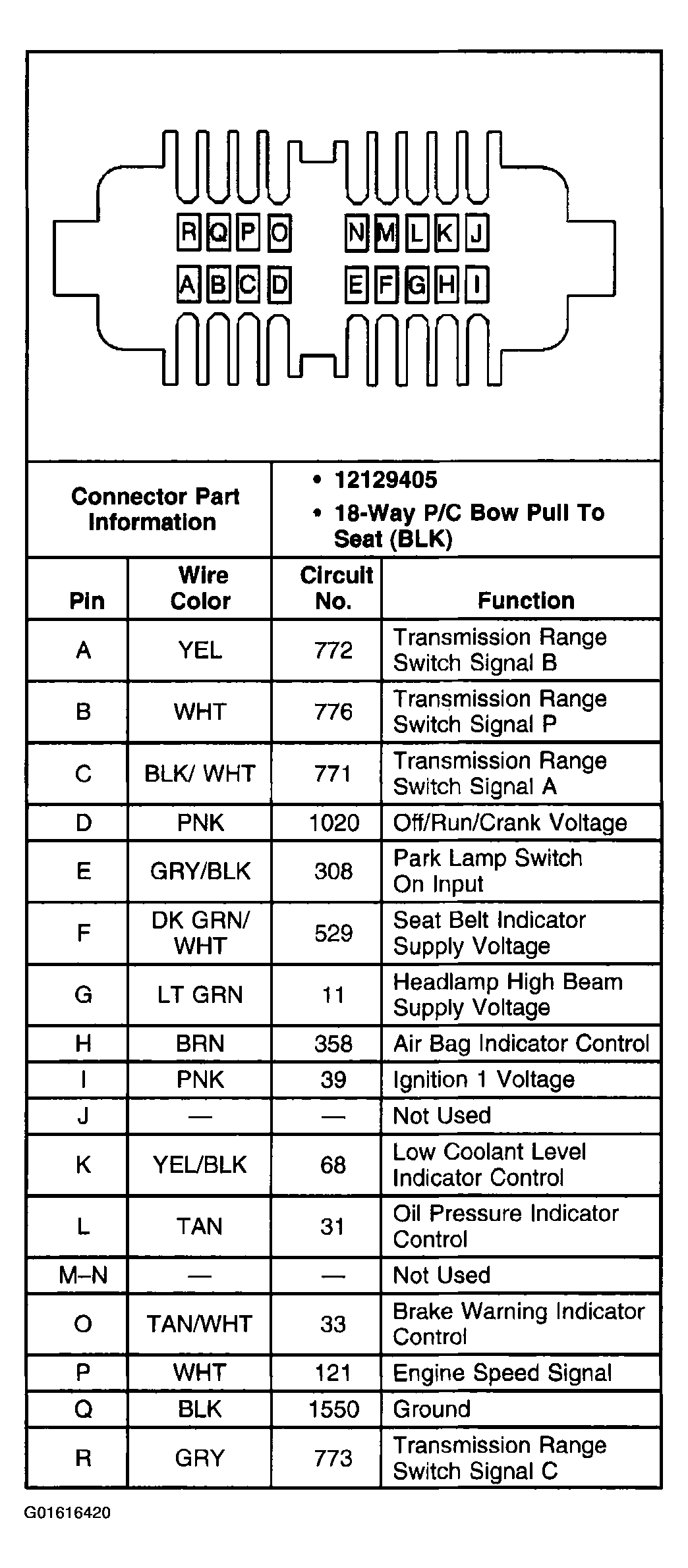

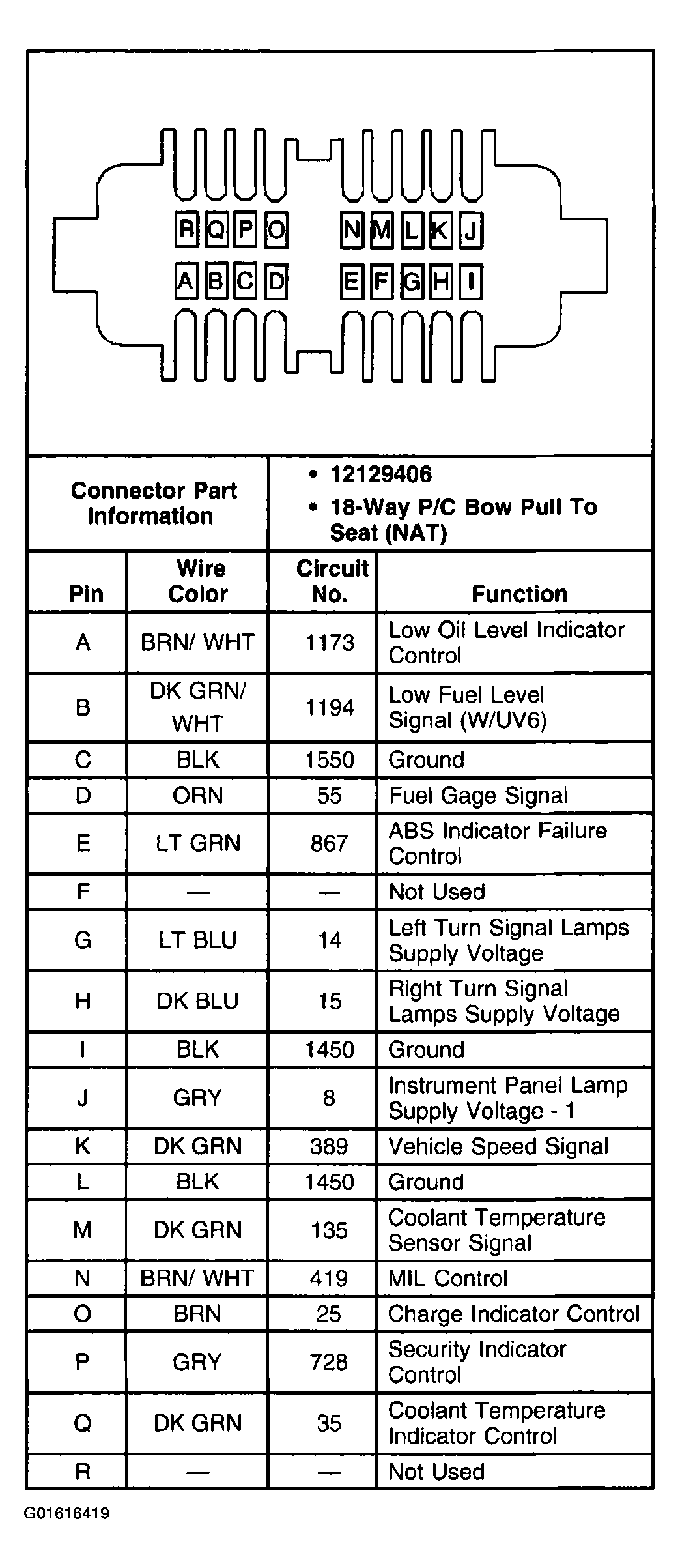

Fig 8: Instrument Panel Cluster (IPC), C1

Courtesy of GENERAL MOTORS CORP.

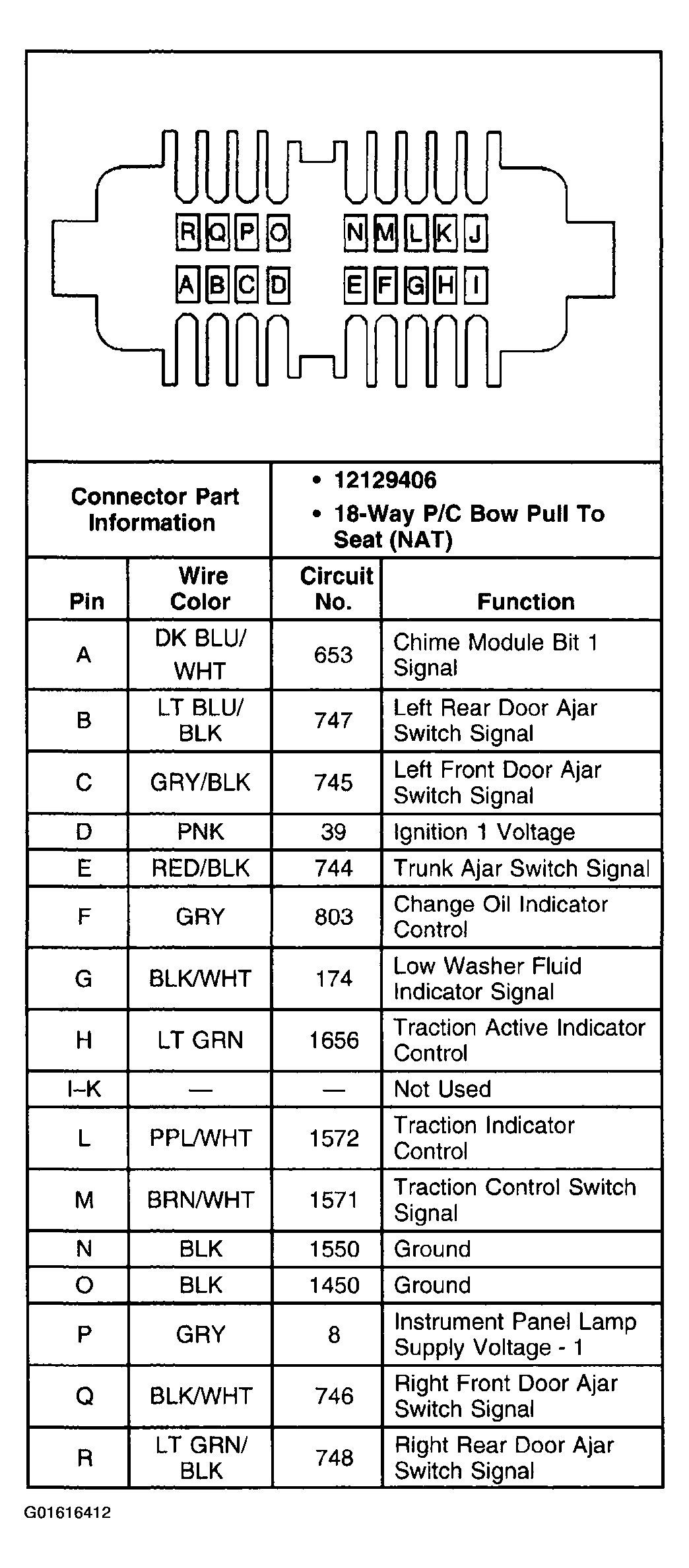

Fig 9: Instrument Panel Cluster (IPC), C2

Courtesy of GENERAL MOTORS CORP.
