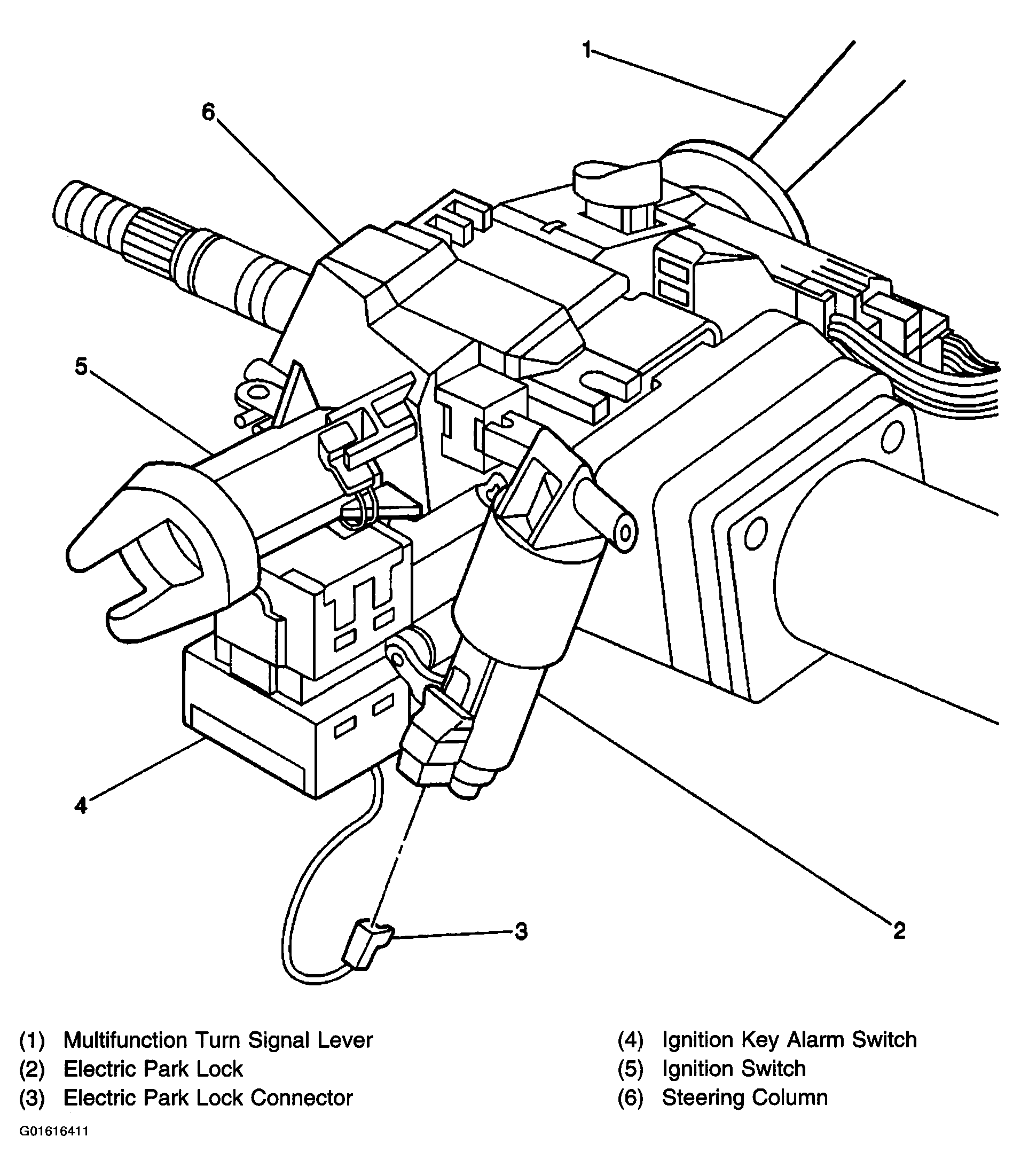

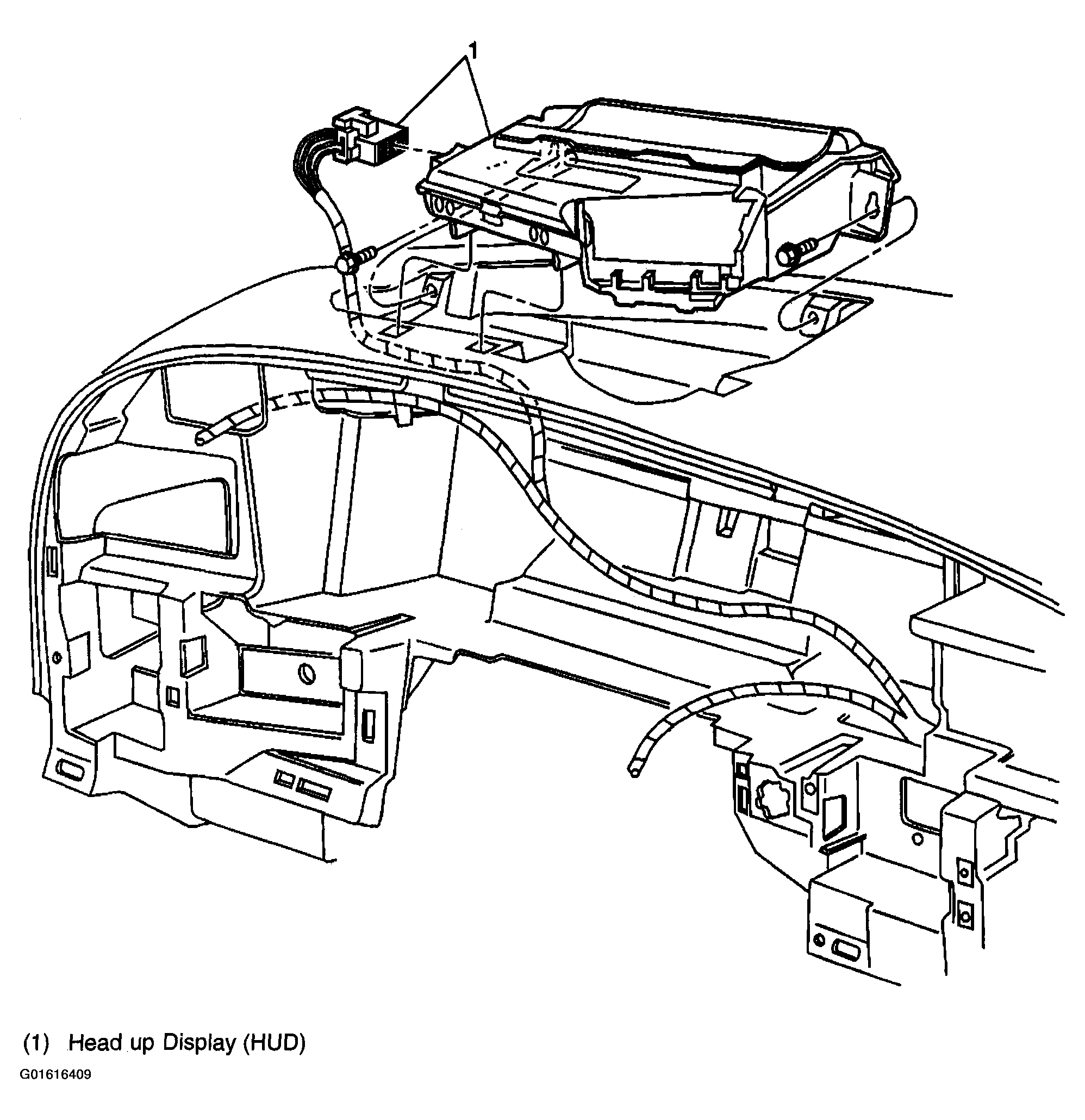

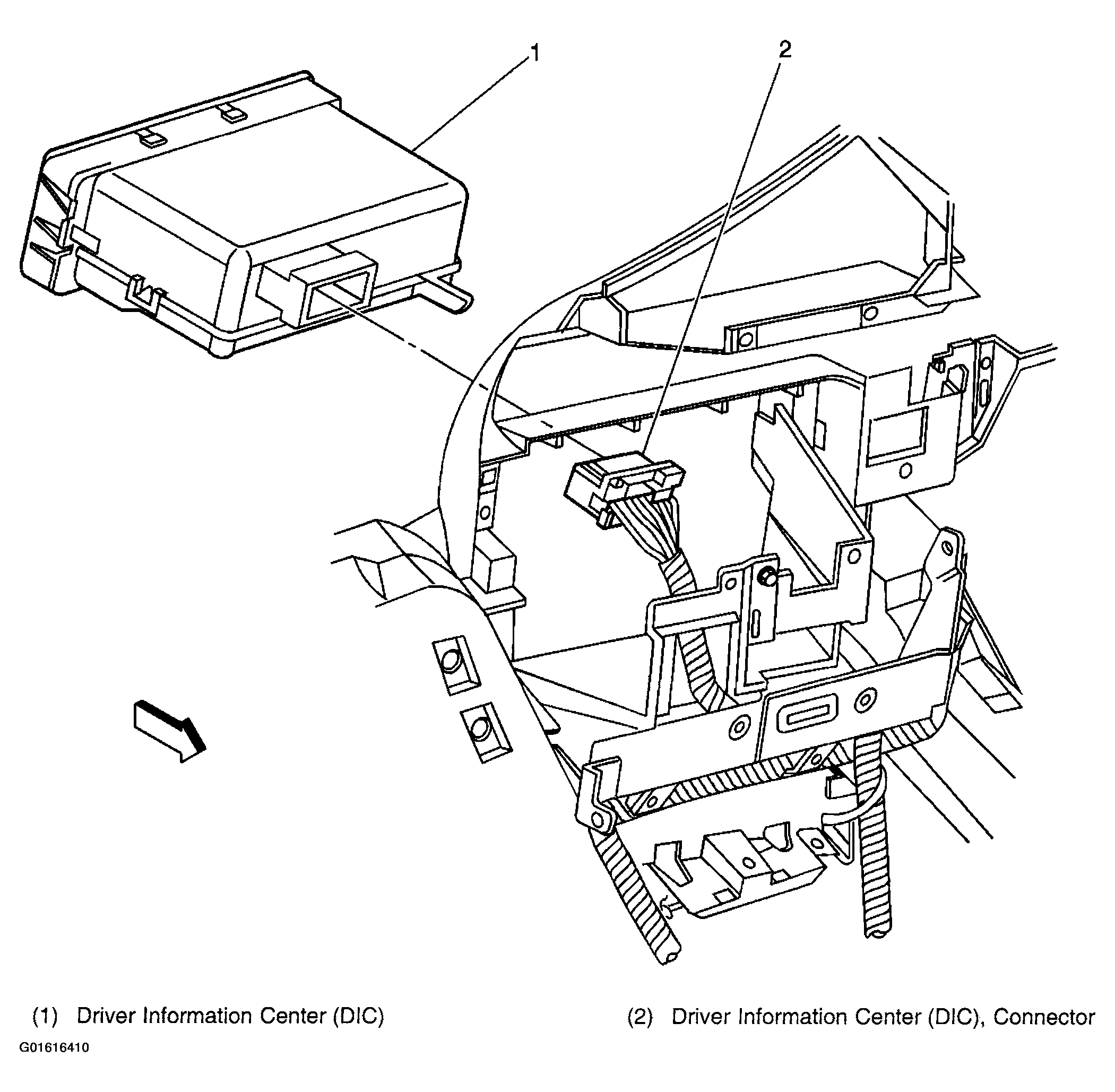

Instrument Panel, Gages, and Console Component Views
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

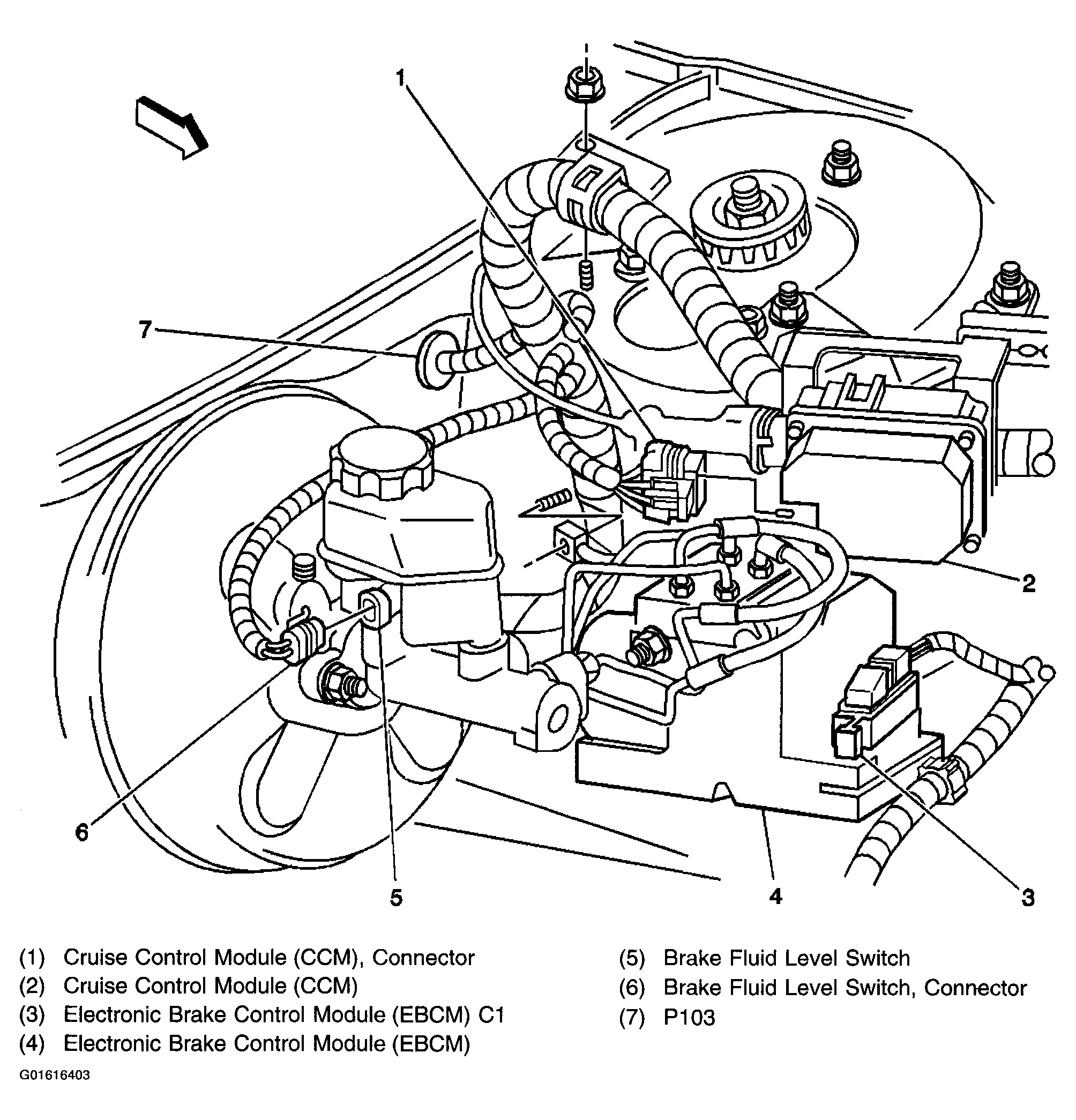

Fig 1: Upper Left Side Of Engine Compartment Bulkhead
Courtesy of GENERAL MOTORS CORP.

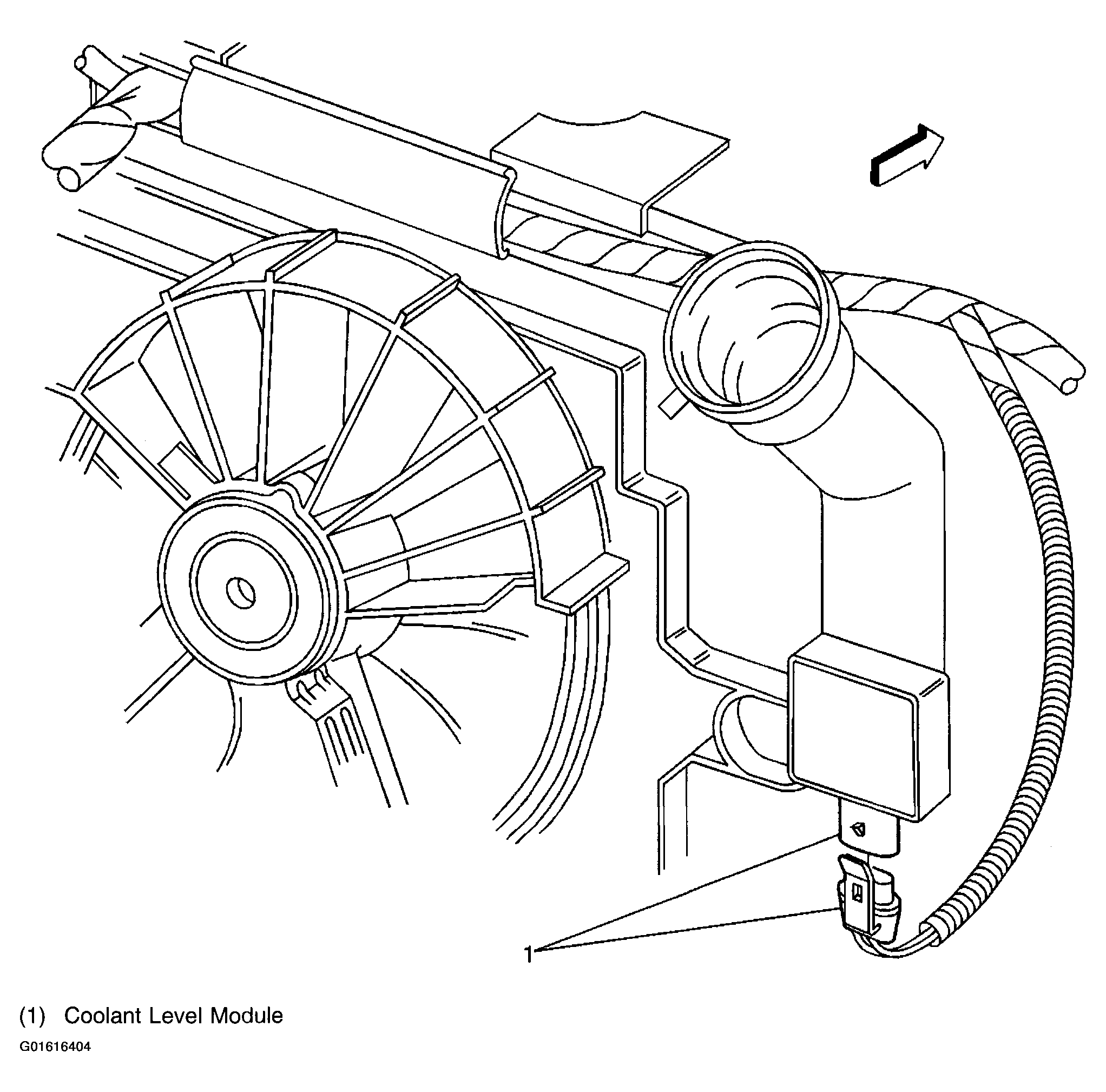

Fig 2: Left Side Of Engine Radiator
Courtesy of GENERAL MOTORS CORP.

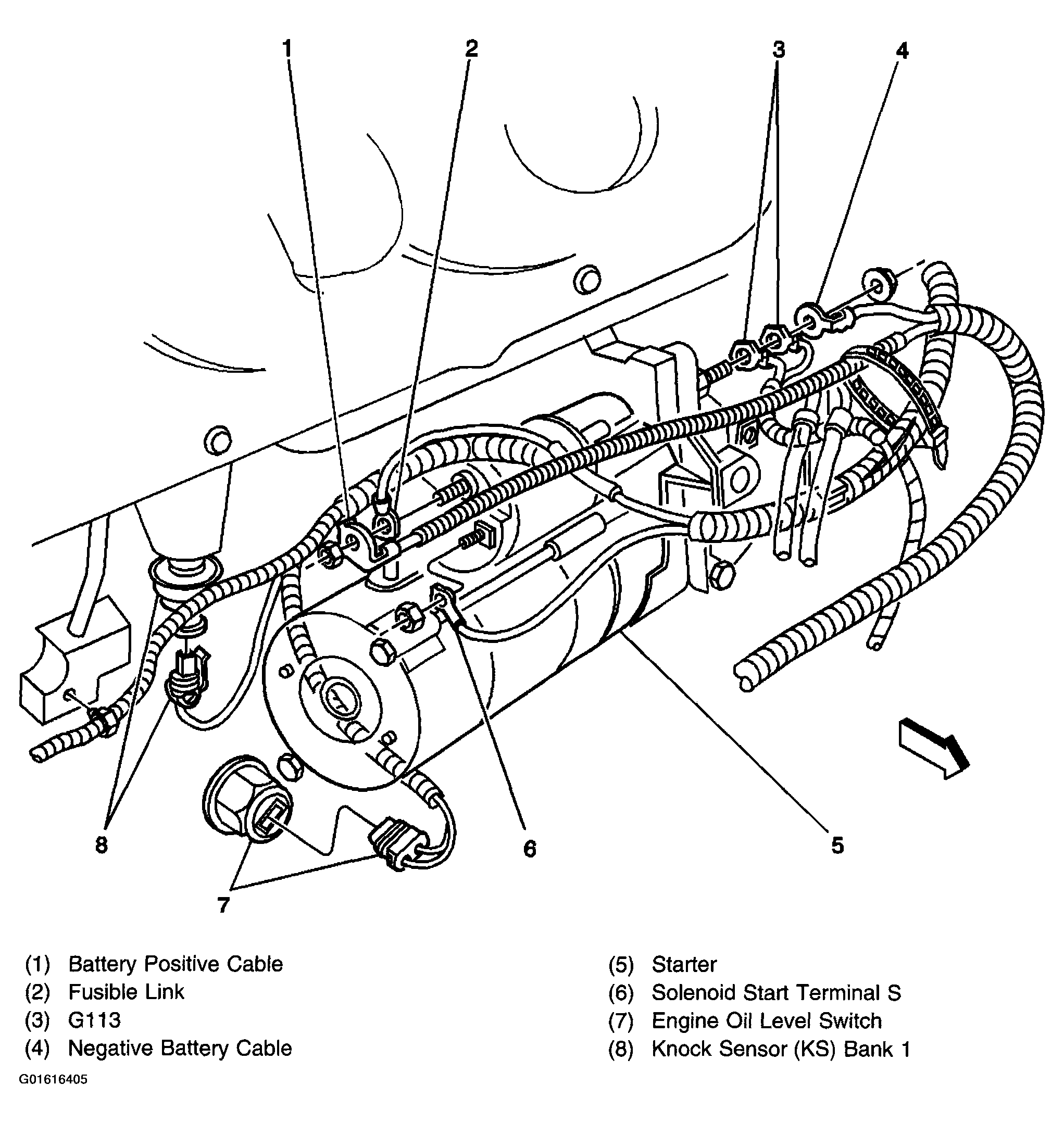

Fig 3: Lower Left Front Of Engine (w/RPO L36, L67)
Courtesy of GENERAL MOTORS CORP.

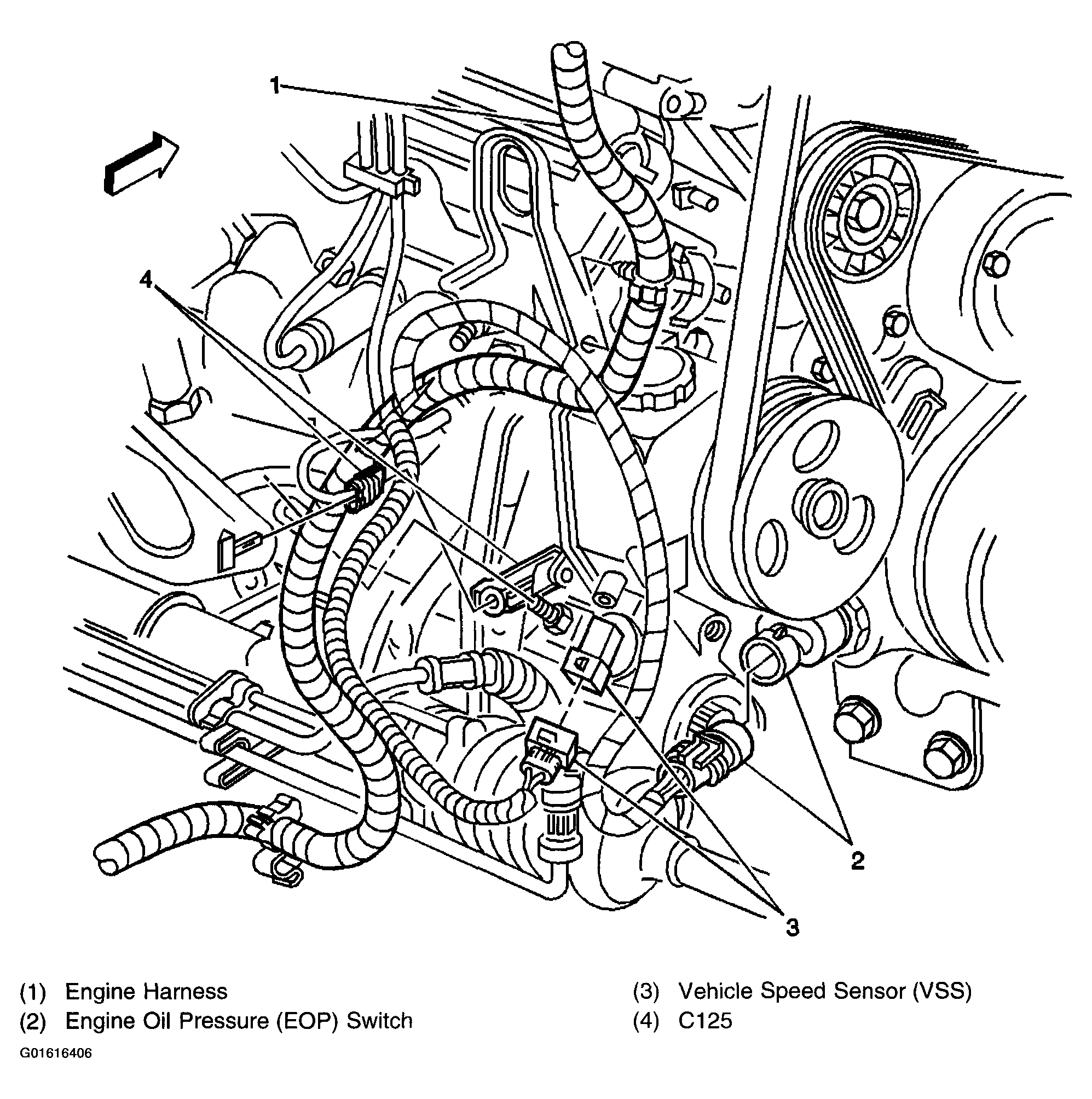

Fig 4: Lower Right Rear Of Engine (w/RPO L36, L67)
Courtesy of GENERAL MOTORS CORP.

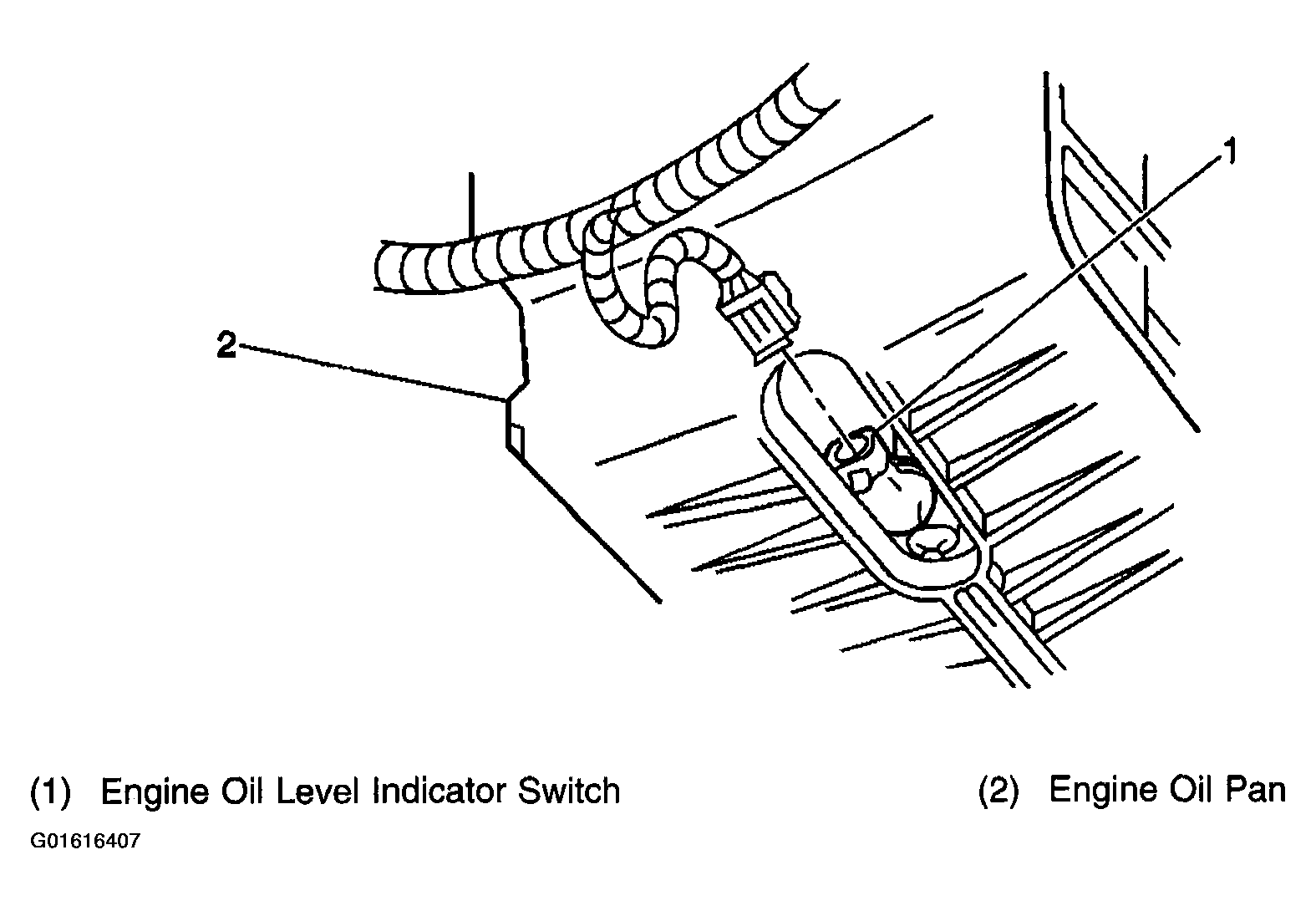

Fig 5: Center Of Oil Pan
Courtesy of GENERAL MOTORS CORP.

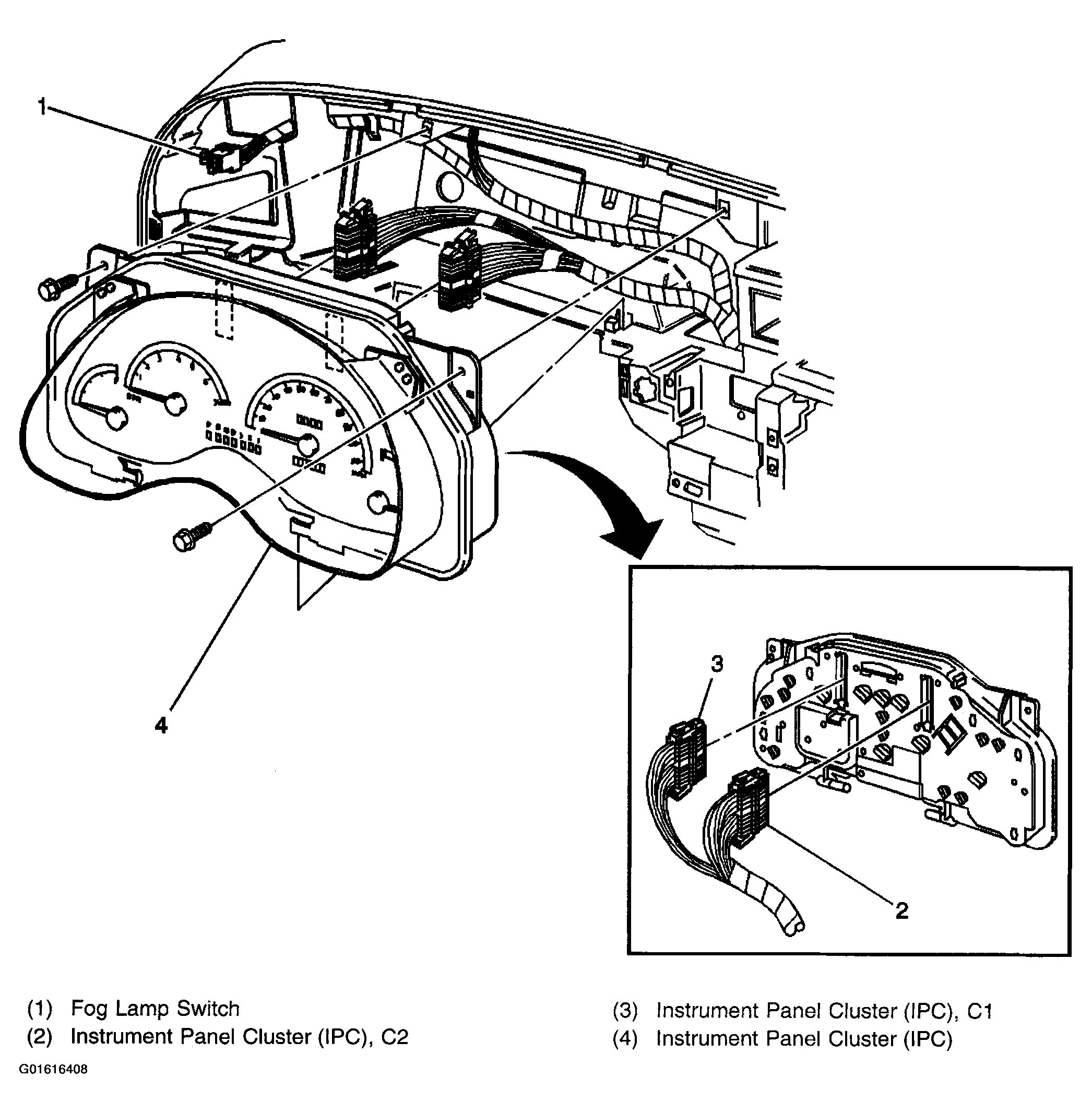

Fig 6: Instrument Panel Cluster (IPC) - Left Side Of Instrument Panel
