Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  2. Remove the wiper motor water deflector. Refer to WIPER MOTOR WATER DEFLECTOR REPLACEMENT  .
  3. Using the J 39232  , disconnect the wiper transmission from the wiper motor crank arm.

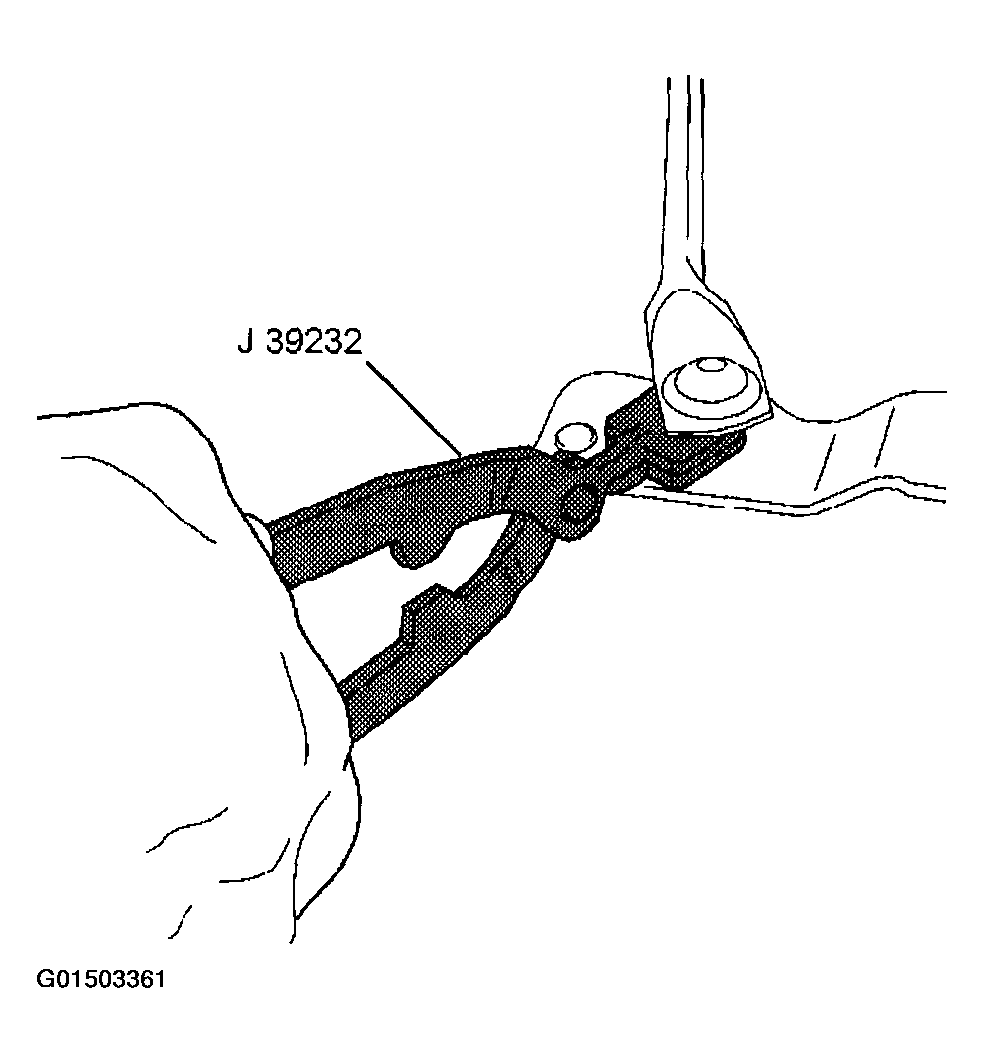

    Fig 1: Disconnecting Wiper Transmission From Wiper Motor Crank Arm
    G01503361Courtesy of GENERAL MOTORS CORP.
  4. Remove the wiper motor crank arm cover.
  5. Remove the wiper motor crank arm screw.
  6. Remove the wiper motor crank arm from the wiper motor.

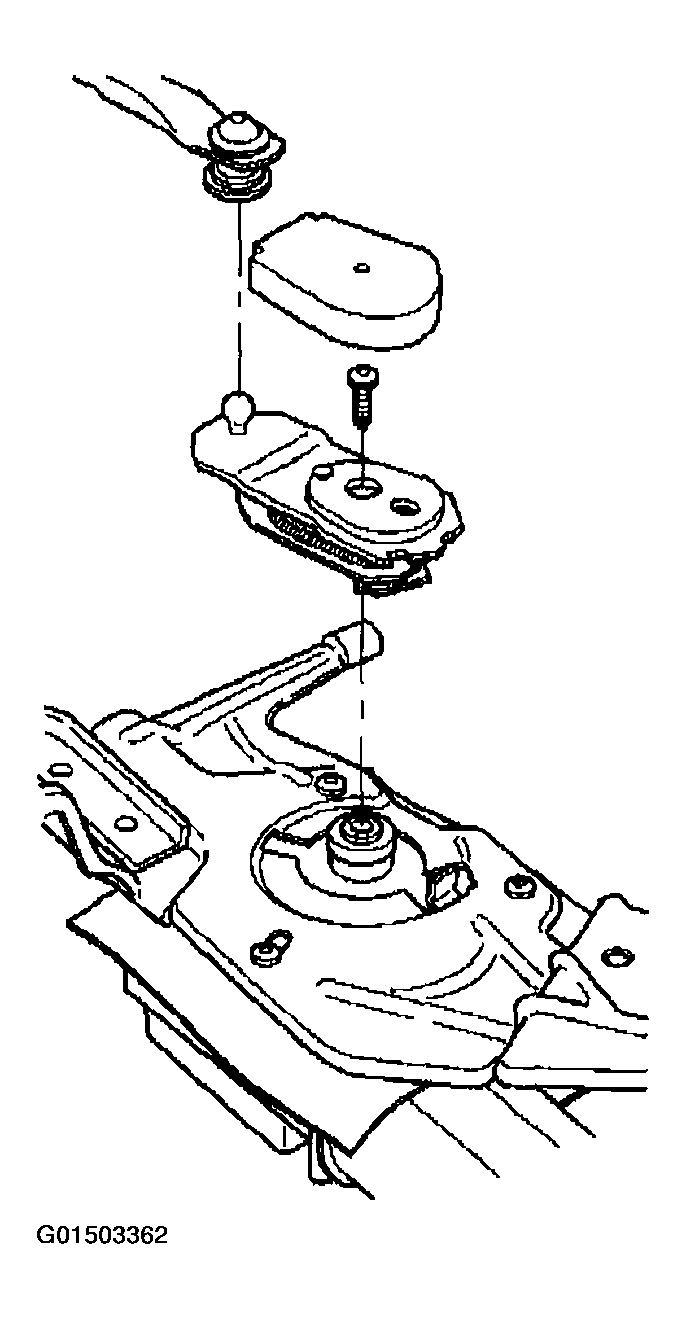

    Fig 2: Removing Wiper Motor Crank Arm From Wiper Motor
    G01503362Courtesy of GENERAL MOTORS CORP.
