Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Using a small flat bladed tool, open the assist handle covers.
Remove the screws from the assist handle.

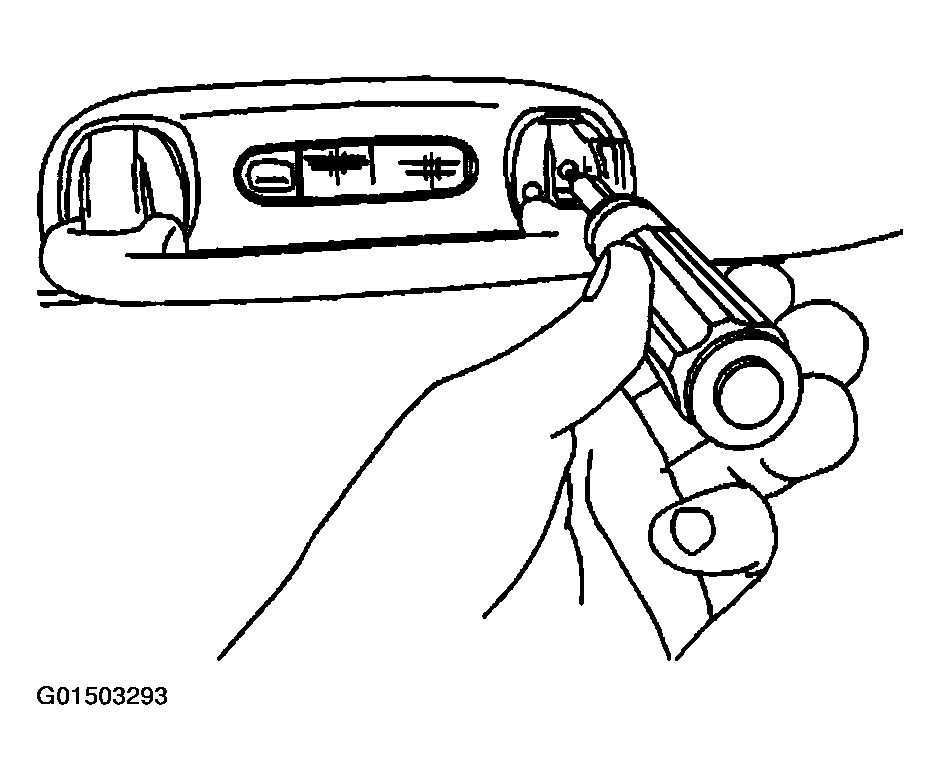

Fig 1: Removing Screws From Assist Handle
Courtesy of GENERAL MOTORS CORP.
Remove the assist handle.

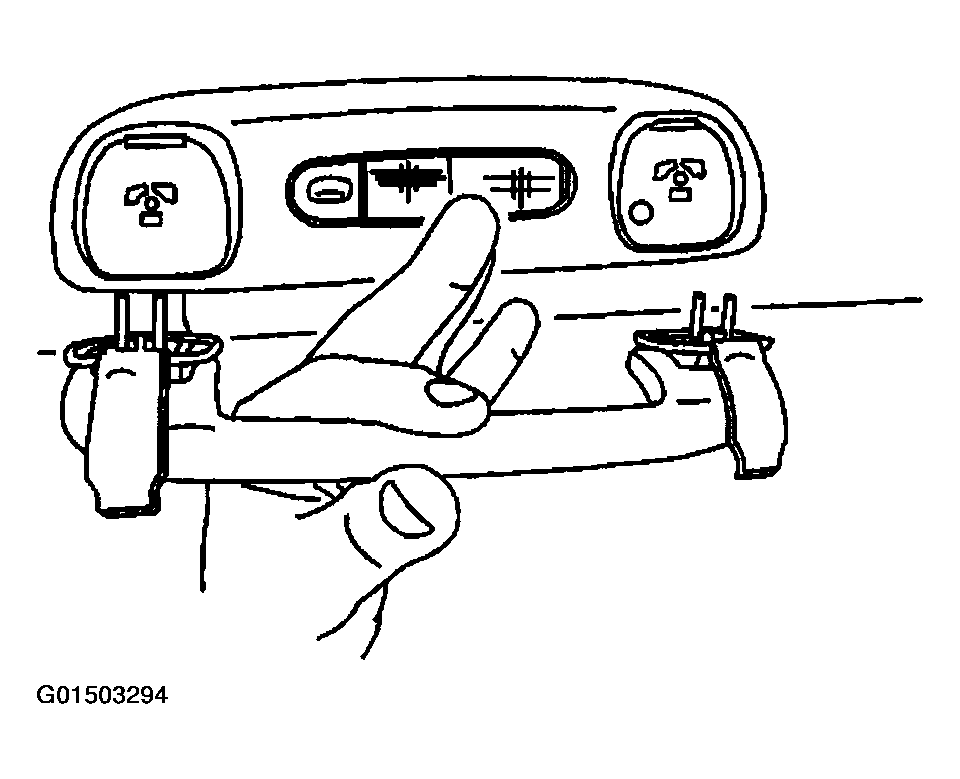

Fig 2: Removing Assist Handle
Courtesy of GENERAL MOTORS CORP.

Important: The plastic retainers to the side rail lamp base plate might drop out. Note the location of the retainers.
Remove the side rail lamp base plate.
If necessary, pull the service loop loose from the glue.
Disconnect the electrical connector from the side rail lamp.

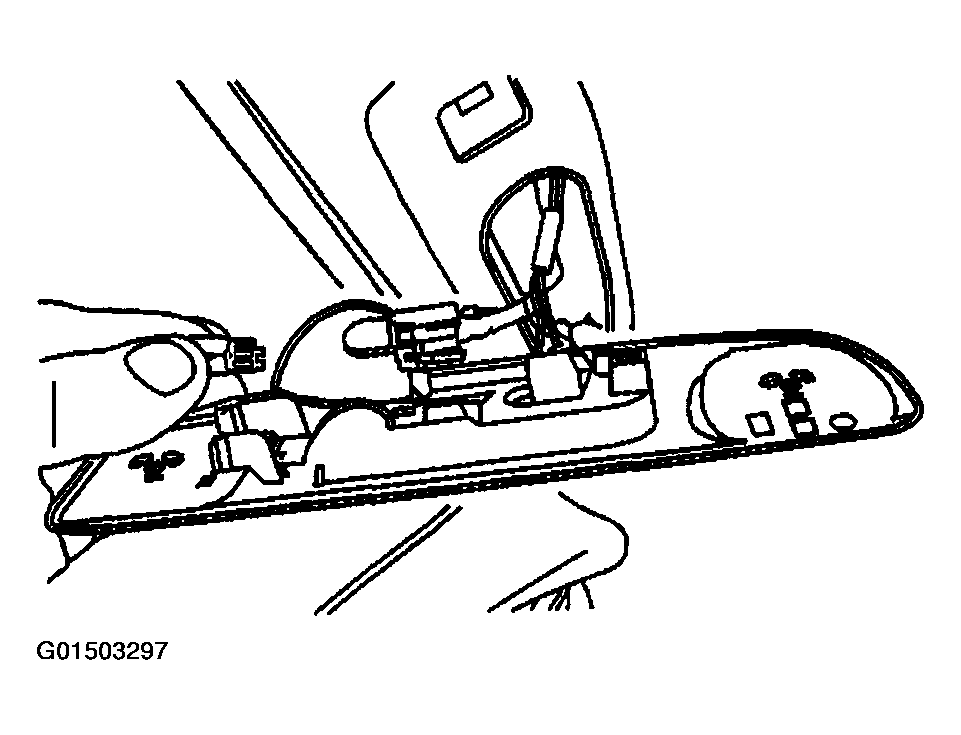

Fig 3: Removing Side Rail Lamp Base Plate
Courtesy of GENERAL MOTORS CORP.
Slide the lamp socket from the base plate.

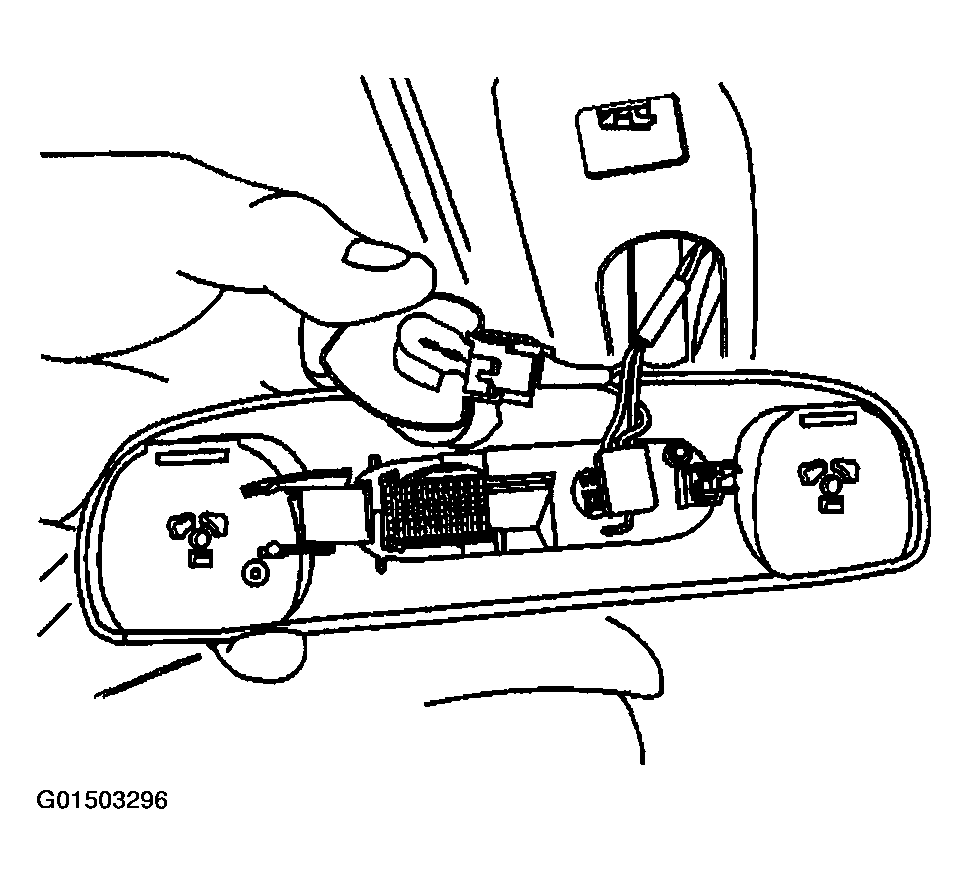

Fig 4: Sliding Lamp Socket From Base Plate
Courtesy of GENERAL MOTORS CORP.
Remove the bulb if necessary.

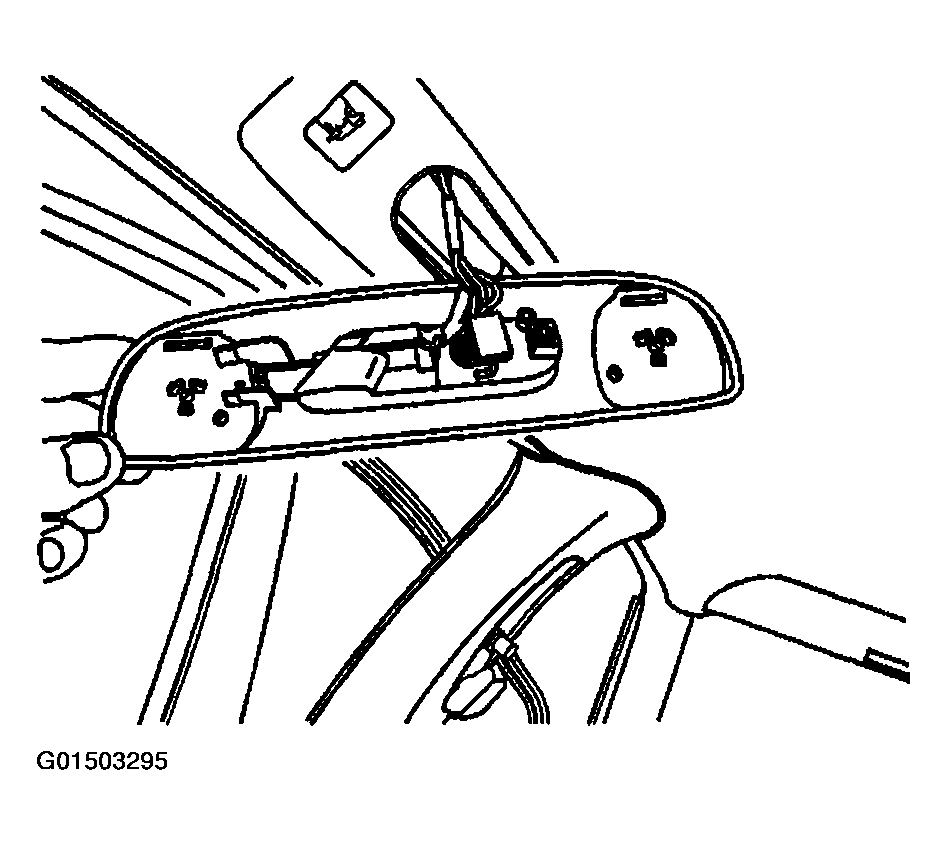

Fig 5: Removing Bulb From Sliding Lamp Socket
Courtesy of GENERAL MOTORS CORP.
