Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel (IP) compartment door.
  2. Remove the fuse block access panel to access the IP compartment lamp.
  3. Remove the bulb from the IP compartment lamp socket.

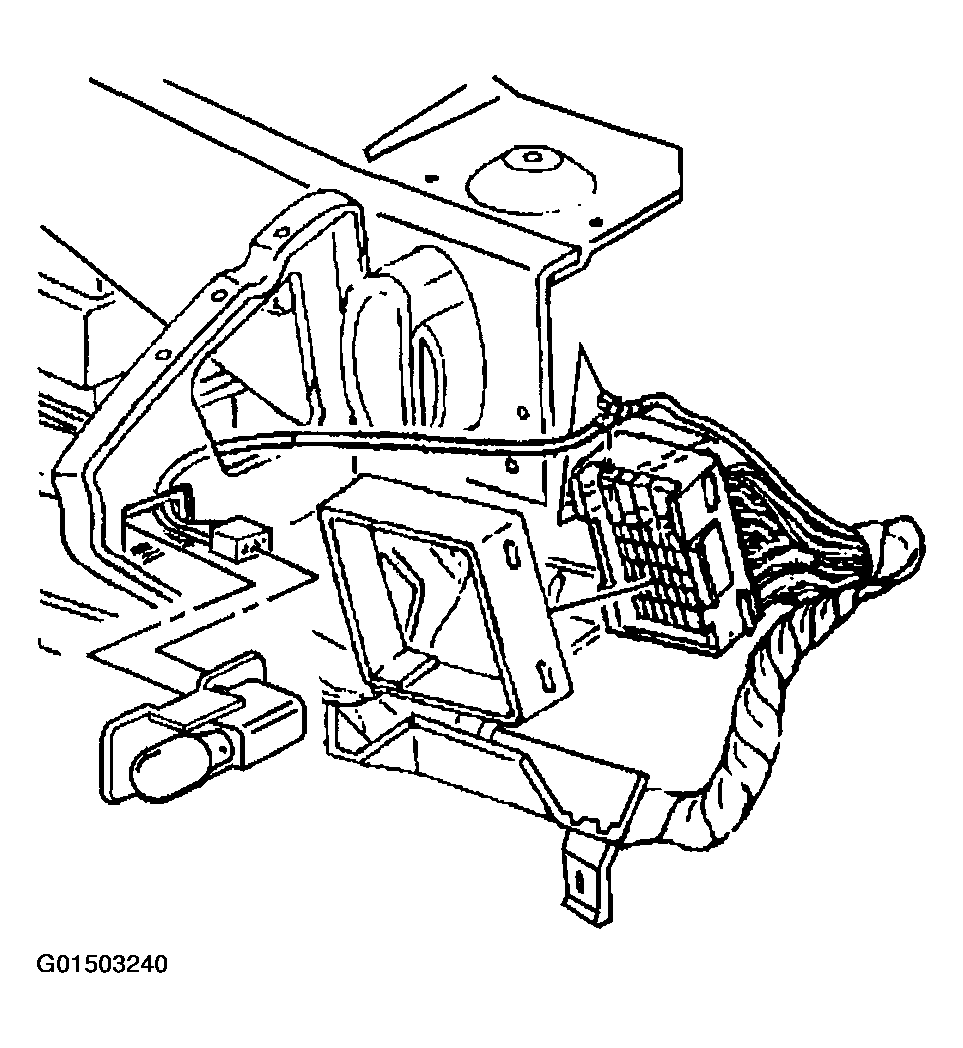

    Fig 1: Removing Instrument Panel Compartment Lamp Bulb
    G01503240Courtesy of GENERAL MOTORS CORP.
